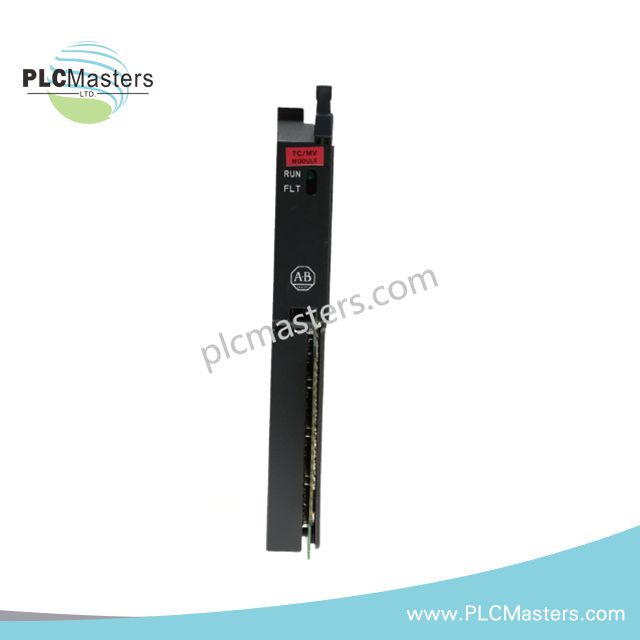

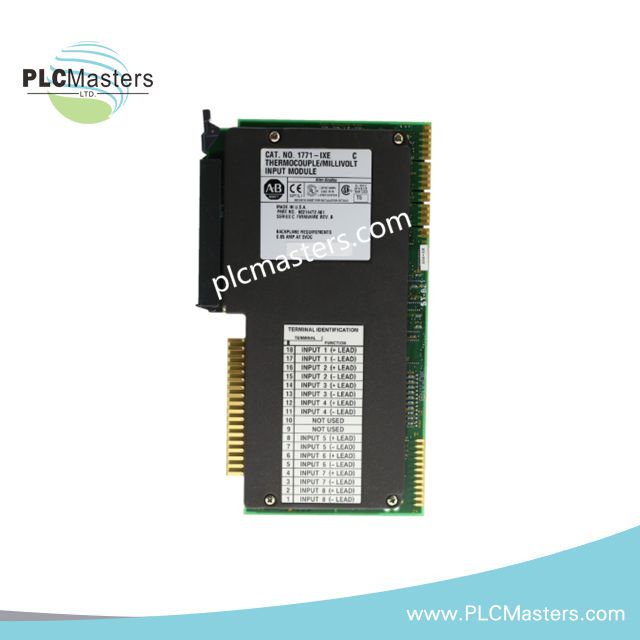

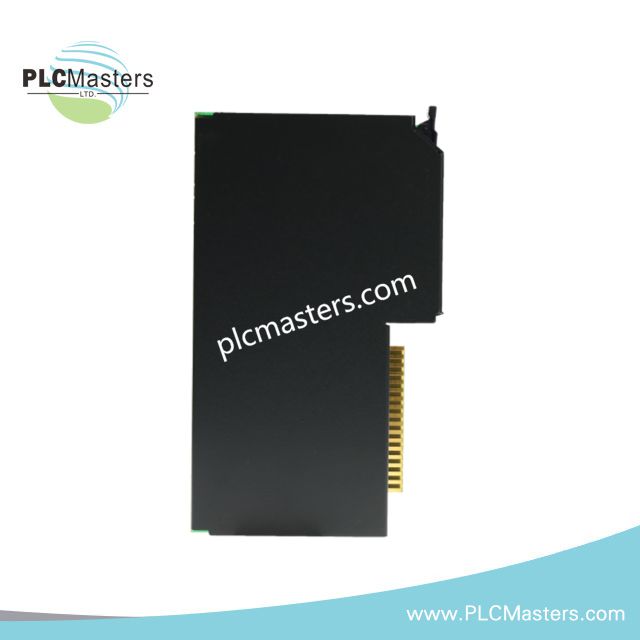

Allen-Bradley 1771-IXE PLC-5 Thermocouple Input Module
$123.00
$320.00
Description
Product Description
The Allen-Bradley 1771-IXE is an isolated analog input module designed for the PLC-5 and 1771 I/O platform. It is engineered for precision measurement of low-level analog signals, specifically thermocouple and millivolt inputs, in industrial process monitoring and temperature acquisition systems.
This module supports floating differential inputs with full channel isolation, enabling stable signal acquisition in electrically noisy environments. It can process up to eight input channels configured either as a single input type or split between two supported signal types. Communication with the PLC-5 processor is handled through block transfer, ensuring synchronized and reliable data exchange.
The 1771-IXE includes automatic calibration functions for offset and gain correction, improving measurement stability over time. It is compatible with all standard 1771 chassis and requires the 1771-WI wiring arm for field connection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | PLC-5 / 1771 Series |
| Model Number | 1771-IXE |
| Product Type | Isolated Thermocouple / Millivolt Input Module |
| Input Channels | 8 Floating Differential Inputs |
| Input Types Supported | Thermocouple / Millivolt |
| Thermocouple Types | E, J, K, T, R, S |
| Voltage Input Range | ±100 mV |
| Channel Configuration | 8 same type or 4 + 4 mixed types |
| Channel Update Time | 50 ms (8 channels) |
| Resolution | 15-bit + sign |
| Cold Junction Compensation | 0–60°C |
| Calibration | Auto (Offset & Gain) |
| Backplane Current Draw | 750 mA |
| External Power Requirement | Not Required |
| Data Formats | 4-digit BCD, 2’s complement, signed magnitude |
| Processor Interface | Block Transfer |
| Chassis Compatibility | All 1771 I/O Chassis |
| Wiring Arm | 1771-WI |
| Mounting Style | Rack Mount |
| Isolation | Channel Isolated |
| Weight | 0.45 kg |
| Product Status | Legacy Model |
Key Functional Features
-
Supports thermocouple and millivolt signal acquisition
-
Eight isolated floating differential input channels
-
High-resolution 15-bit measurement with sign representation
-
Built-in cold junction compensation for thermocouples
-
Automatic calibration for long-term accuracy stability
-
Block transfer communication with PLC-5 processors
-
Compatible with all 1771 chassis platforms
-
No external power supply required
Typical Applications
The 1771-IXE module is commonly used in:
-
Industrial temperature monitoring systems
-
Furnace and heat treatment control
-
Process instrumentation systems
-
Chemical processing plants
-
Power generation facilities
-
Laboratory and test equipment integration
-
Legacy PLC-5 system maintenance and upgrades
FAQ
What signal types does the 1771-IXE support?
The module supports thermocouple types (E, J, K, T, R, S) and millivolt inputs up to ±100 mV.
Does the module require external power?
No. The 1771-IXE operates without any external power supply.
What communication method is used?
It uses PLC-5 block transfer communication for data exchange.
Is channel isolation available?
Yes. All inputs are floating differential with isolation for improved noise immunity.
What wiring hardware is required?
The module requires the Allen-Bradley 1771-WI wiring arm.
