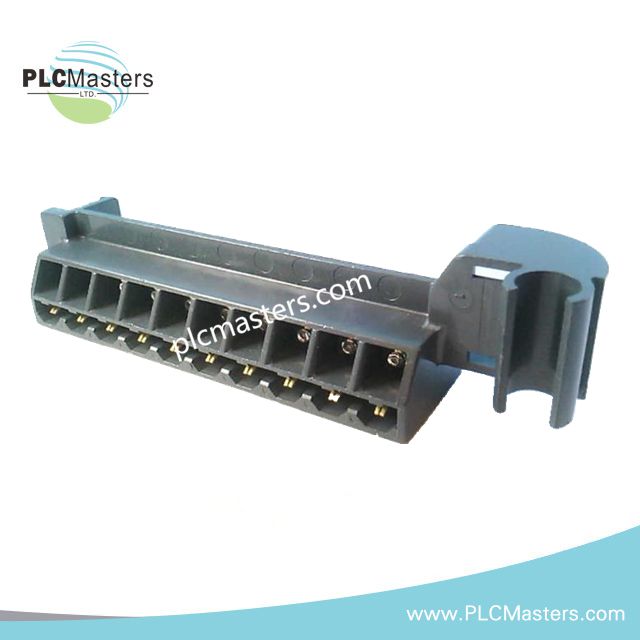

Allen-Bradley 1771-W PLC-5 Field Wiring Arm Terminal
$123.00
$320.00
Description
Overview
The 1771-W from Rockwell Automation Allen-Bradley is a removable field wiring arm developed for 1771-series PLC-5 I/O modules. This component provides a secure connection point between field devices and the installed I/O module while allowing the module itself to be replaced without disconnecting field wiring.
Engineered for industrial control systems, the wiring arm simplifies maintenance procedures, minimizes wiring errors, and supports stable electrical connectivity inside PLC-5 chassis assemblies.
Key Features
-
Removable swing-arm terminal design
-
Compatible with Allen-Bradley 1771 I/O modules
-
Supports PLC-5 platform installations
-
Gold-plated terminal contacts for improved conductivity
-
Allows module replacement without rewiring
-
Designed for organized field termination
-
Rugged thermoplastic housing with industrial-grade durability
-
Secure screw-terminal wiring connection
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model Number | 1771-W |
| Product Type | Field Wiring Arm |
| Series Compatibility | 1771 PLC-5 I/O Series |
| Terminal Type | Swing-Arm Terminal Block |
| Number of Terminals | 21 Gold-Plated Terminals |
| Supported I/O Capacity | Up to 16 I/O Points |
| Terminal Connection | Screw Terminal |
| Construction Material | Thermoplastic |
| Protective Finish | Conformal Coated |
| Installation Type | Module-Mounted |
| Dimensions | 4.5 × 12.4 × 6.3 in |
| Weight | 0.1 kg |
Functional Description
The 1771-W terminal arm is installed directly on compatible 1771-series I/O modules and serves as the primary interface for field wiring. The hinged swing-arm construction enables technicians to remove or replace the module independently from the field wiring assembly, reducing system downtime during maintenance.
Gold-plated terminals improve long-term contact reliability and help maintain signal integrity in industrial environments subject to vibration and electrical noise.
Compatible Systems and Modules
Commonly used with:
-
PLC-5 I/O chassis
-
1771 digital input modules
-
1771 digital output modules
-
1771 analog I/O modules
-
1771-OAD and related output modules
Typical Applications
-
PLC-5 control cabinets
-
Factory automation systems
-
Machine control panels
-
Process control installations
-
Industrial I/O termination systems
-
Maintenance replacement projects
FAQ
What is the purpose of the 1771-W wiring arm?
It provides the connection point between field wiring and a 1771-series I/O module while allowing the module to be removed without disconnecting wiring.
How many terminals are included?
The unit includes 21 gold-plated terminals supporting up to 16 I/O points.
Is the 1771-W compatible with PLC-5 systems?
Yes. It is specifically designed for Allen-Bradley PLC-5 systems using 1771-series I/O modules.
Does the wiring need to be removed during module replacement?
No. The swing-arm design allows module replacement while maintaining field wiring connections.
