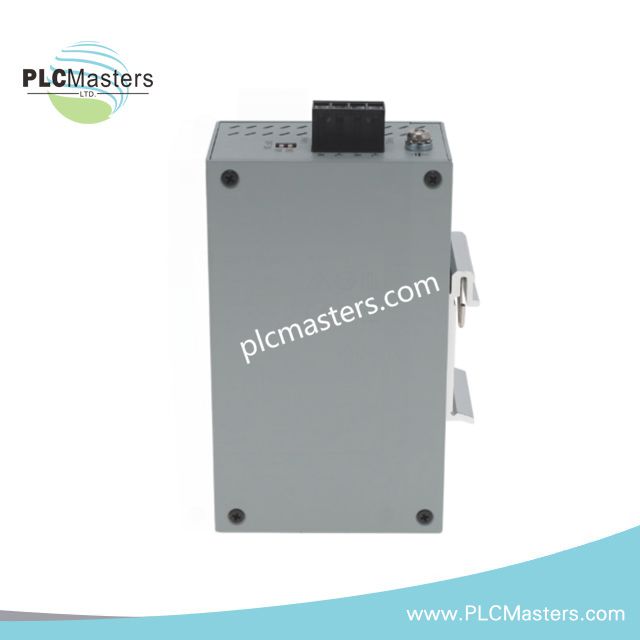

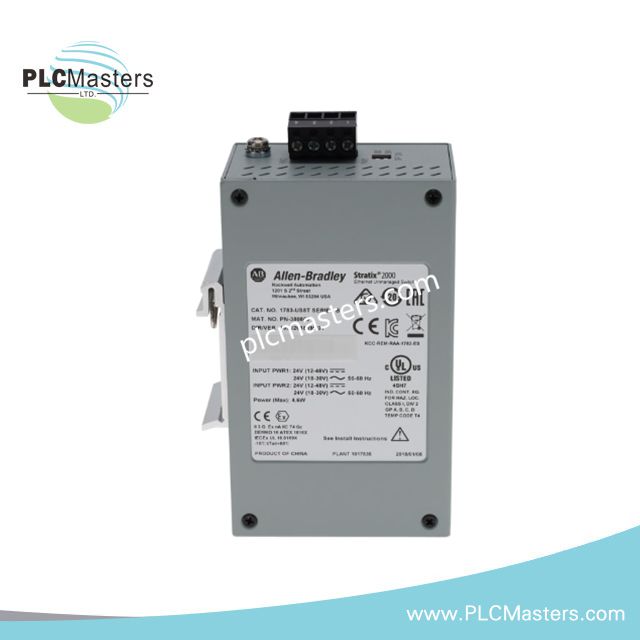

Allen-Bradley 1783-US8T Stratix 2000 Ethernet Switch
$123.00
$320.00
Description
Overview
The Allen-Bradley 1783-US8T is an unmanaged Ethernet switching device from the Stratix 2000 series, designed for straightforward industrial network connectivity. It provides reliable layer-2 Ethernet communication between control devices, HMIs, and PLC-based systems without requiring configuration or management setup.
Built with eight copper RJ45 ports supporting 10/100 Mbps auto-negotiation, the switch ensures stable data transmission in small to medium-scale automation networks. Its compact DIN rail housing allows easy integration into control panels and industrial enclosures.
The 1783-US8T is optimized for plug-and-play deployment, making it suitable for applications where simple, robust Ethernet connectivity is required without advanced routing or configuration functions.
Key Features
-
8-port unmanaged Ethernet switch architecture
-
Stratix 2000 industrial networking platform
-
RJ45 copper ports with 10/100 Mbps auto-sensing
-

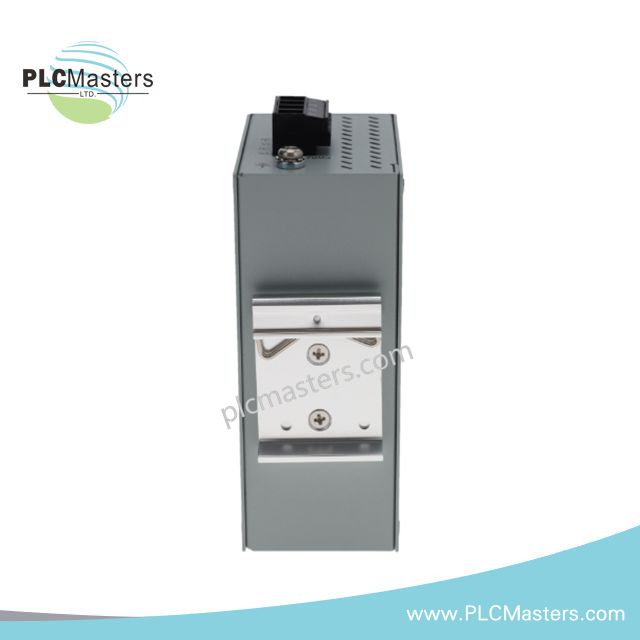

DIN rail mounting for control cabinet installation
-
Integrated DIP switch for basic configuration options
-
Broadcast storm protection via hardware control
-
LED status indicators for port and network diagnostics
-
Compact IP20-rated enclosure for panel environments
-
Plug-and-play installation with no software setup required
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Allen-Bradley |
| Product Series | Stratix 2000 |
| Model Number | 1783-US8T |
| Device Type | Unmanaged Ethernet Switch |
| Number of Ports | 8 Ports |
| Port Type | RJ45 Copper Ethernet |
| Network Standard | IEEE 802.3 Ethernet |
| Data Rate | 10/100 Mbps Auto-Negotiation |
| Input Voltage | 12–48V DC / 18–30V AC |
| Power Consumption | Approx. 4.6 W |
| Current Consumption | ~250 mA (DC mode) |
| Inrush Current | 1.31 A |
| Frequency (AC Input) | 50/60 Hz |
| Mounting Style | DIN Rail |
| Enclosure Rating | IP20 |
| Operating Temperature | -10°C to +60°C |
| Status Indicators | Link, Activity, Power LEDs |
| Configuration Method | DIP Switch Controlled |
| Broadcast Storm Protection | Supported |
| Weight | 1.61 lbs |
Industrial Applications
The 1783-US8T unmanaged switch is commonly deployed in Ethernet-enabled control environments requiring simple and stable connectivity:
-
PLC and HMI communication networks
-
Machine-level Ethernet distribution
-
Conveyor and packaging systems
-
Small industrial control panels
-
OEM machinery networking
-
Distributed I/O communication links
System Notes
This Stratix 2000 switch is designed for basic Ethernet expansion and does not require software configuration. It is suitable for environments where deterministic control networking is not required but reliable Ethernet connectivity is essential.
For advanced managed switching capabilities, higher-tier Stratix series models are recommended.
FAQ
Is the 1783-US8T a managed switch?
No. The 1783-US8T is an unmanaged plug-and-play Ethernet switch.
What type of ports are available?
It provides 8 RJ45 copper Ethernet ports supporting 10/100 Mbps communication.
Does it require configuration software?
No configuration software is required. Basic settings can be adjusted using DIP switches.
What environments is it suitable for?
It is designed for industrial control panels and cabinet installations operating from -10°C to +60°C.
