Allen-Bradley 1785-BCM/B Backup Communication Module
$123.00
$320.00
Description

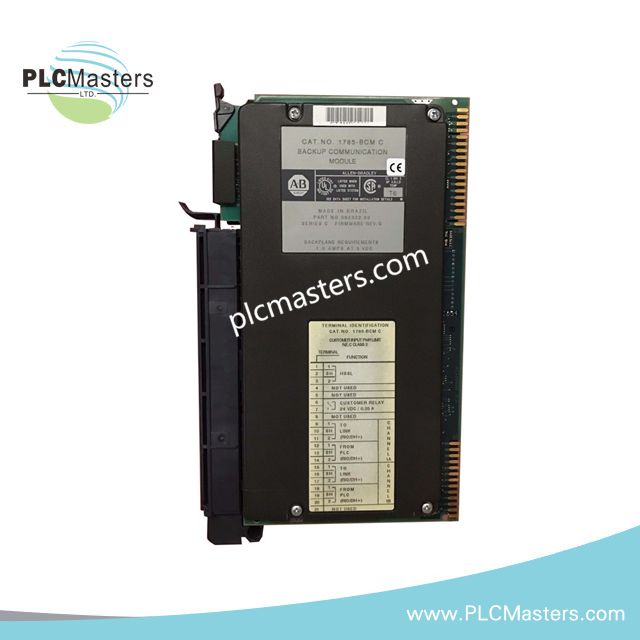

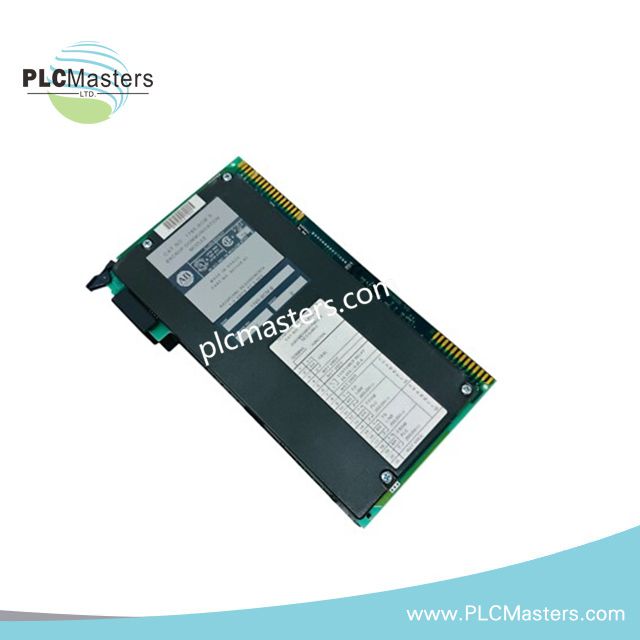

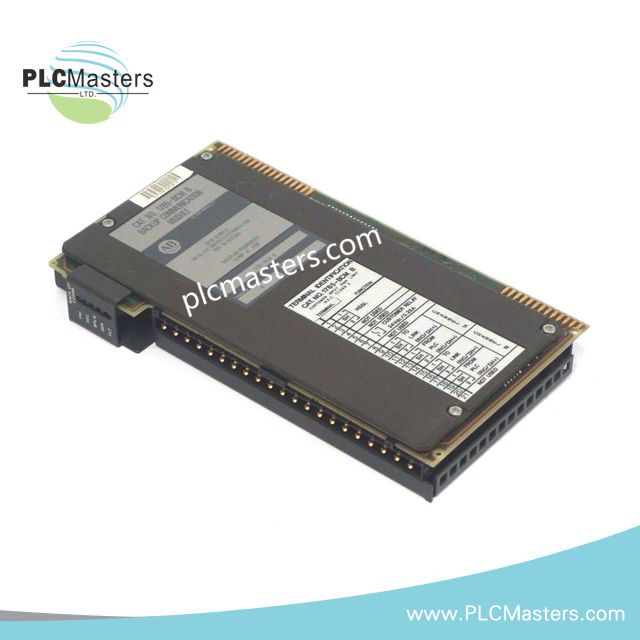

Allen-Bradley 1785-BCM/B Backup Communication Module
The Allen-Bradley 1785-BCM/B, also cataloged as the 1785-BCM/B Backup Communication Module, operates as a dedicated hardware component for redundant PLC-5 processor coordination within 1771 I/O chassis platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1785-BCM/B |
| Brand | Allen-Bradley |
| Origin | United States |
| Weight | 0.6 kg |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | 5 VDC backplane current: 1.0 A |
| Product Type | Backup Communication Modules |
| Compatible Processors | PLC-5/15 Series B, PLC-5/20, PLC-5/25, PLC-5/30, PLC-5/40, PLC-5/60 |
| Installation Location | 1771 I/O chassis local slot |
| Communication Interface | High-Speed Serial Link (HSSL) |
| Communication Speed | 1.2 Megabaud |
| Customer Relay Output | 0.25 A at 24 VDC resistive load |
| Keying Locations | Between 8-10 and 34-36 |
| Wiring Arm Compatibility | 1771-WG |
| Storage Temperature | -40 to 85 deg C |
| Relative Humidity | 5-95% non-condensing |
| Certifications | UL Listed, CSA Class 1 Division 2 |
| Diagnostics | Status indicators and system status word bits |
EtherNet/IP and PLC Communication Interface Characteristics
The 1785-BCM/B provides PLC-5 redundancy coordination through a dedicated backup communication path between primary and secondary processors. The module exchanges processor status information and manages control transfer conditions through the High-Speed Serial Link interface.
The module supports bumpless switchover operation by maintaining communication synchronization between paired PLC-5 processors. Within PLC-5 control architectures, the module manages redundancy state monitoring, processor health detection, and backup communication functions without adding I/O capacity or processor execution resources.
The 1785-BCM/B integrates with Allen-Bradley PLC-5 systems through the 1771 chassis backplane interface. Firmware and configuration compatibility must match the installed PLC-5 processor family and redundancy architecture.
Firmware and PLC-5 Redundancy Interface Characteristics
The module operates within legacy PLC-5 redundant control systems and uses dedicated backplane communication for module coordination. The HSSL communication link provides data exchange between paired controllers at 1.2 Megabaud.
System status word diagnostics and front-panel indicators provide hardware-level monitoring of communication state and fault conditions. Proper chassis keying and wiring arm installation are required to maintain correct module positioning and field connection.
Frequently Asked Questions
Q: What PLC-5 processors are compatible with the 1785-BCM/B?
A: The module supports PLC-5/15 Series B, PLC-5/20, PLC-5/25, PLC-5/30, PLC-5/40, and PLC-5/60 processors.
Q: What is the backplane power requirement of the 1785-BCM/B?
A: The module requires 1.0 A at 5 VDC from the 1771 chassis backplane.
Q: Does the 1785-BCM/B provide additional I/O or processing capability?
A: No. The module provides backup communication and redundancy coordination functions only.
Field Installation Guidelines
Install the 1785-BCM/B in a compatible 1771 I/O chassis slot using the specified keying positions and 1771-WG wiring arm. Confirm that the chassis power supply can support the module backplane current requirement before installation.
Connect redundancy communication wiring according to the PLC-5 backup system configuration. Keep communication wiring separated from high-voltage power conductors and sources of electromagnetic interference.
Verify module status indicators after power-up and confirm correct processor synchronization through PLC-5 diagnostic status information. Maintain environmental conditions within the specified temperature and humidity limits during operation.
