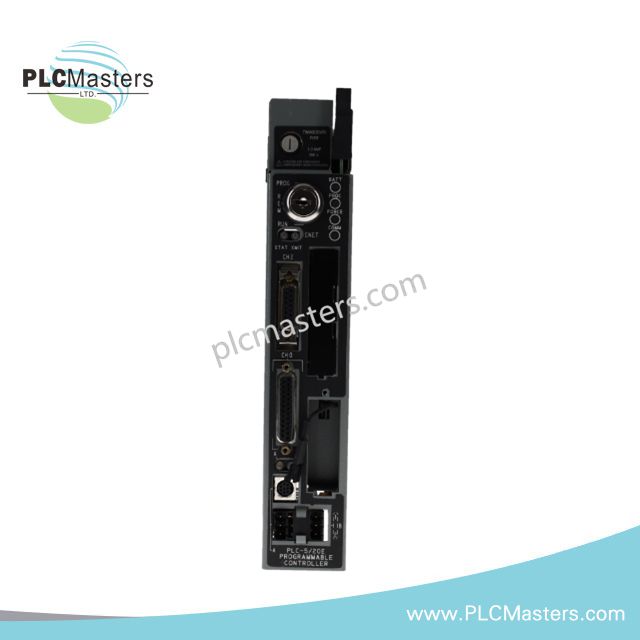

Allen-Bradley 1785-L20E PLC-5 Ethernet Processor Module
$123.00
$320.00
Description
Overview
The Allen-Bradley 1785-L20E is a PLC-5/20E processor module developed for mid-range programmable logic controller applications requiring integrated Ethernet connectivity and multi-network communication capability.
Manufactured by Allen-Bradley, this processor belongs to the PLC-5 family and is designed for systems where both legacy DH+ networks and Ethernet-based communication must coexist within a single controller architecture.
It provides a balance of moderate memory capacity, flexible I/O handling, and multiple embedded communication ports, making it suitable for distributed control and plant-wide integration tasks.
Core System Capabilities
The 1785-L20E processor integrates multiple communication pathways and supports hybrid control system architectures:
-
Built-in Ethernet communication for modern network integration
-
DH+ fixed channel for legacy PLC-5 network compatibility
-
Remote I/O interface supporting adapter or scanner modes
-
Configurable serial port supporting RS-232, RS-422A, and RS-423 standards
-
Battery-backed SRAM for program retention
-
EEPROM backup compatibility for program storage expansion
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1785-L20E |
| Product Series | PLC-5 / 20E |
| Product Type | Programmable Logic Controller Processor |
| User Memory | 16K Words SRAM |
| Memory Backup | Battery-backed static RAM |
| EEPROM Support | Yes (1785-ME series modules) |
| Maximum I/O Capacity | 512 total or 512 IN + 512 OUT |
| Analog I/O Capacity | Up to 512 points |
| Remote I/O Support | Up to 12 chassis |
| Total I/O Chassis | Up to 13 |
| Universal Remote Chassis | 12 |
| Local Chassis Expansion | Not supported |
| Embedded Ethernet | Yes |
| DH+ Channels | 1 fixed + 1 configurable DH+/RIO |
| Serial Interface | 1 port (RS-232 / RS-422A / RS-423 selectable) |
| Backplane Current | 2.3 A @ 5 VDC |
| Power Dissipation | 12 W |
| Operating Voltage System | 5 VDC backplane powered |
| Compatible Power Supplies | 1771-P4S / P6S / P4S1 / P6S1 |
| Processor Type | PLC-5/20E |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | 3.1 lbs |
Communication Architecture
The 1785-L20E provides multi-layer communication support:
-
Ethernet interface for modern SCADA and HMI integration
-
DH+ network compatibility for legacy PLC systems
-
Remote I/O scanning and adapter capability
-
Serial communication for device-level integration
This mixed architecture allows gradual migration from legacy PLC-5 systems toward Ethernet-based industrial networks without full system replacement.
Typical Applications
-
Manufacturing line control systems
-
Process automation facilities
-
Legacy PLC-5 system upgrades
-
Distributed remote I/O architectures
-
Material handling systems
-
Water and wastewater treatment plants
-
Industrial communication bridging projects
