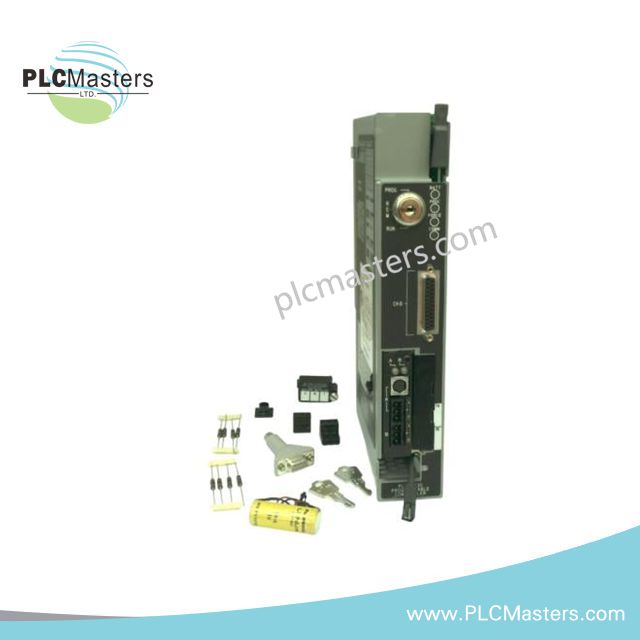

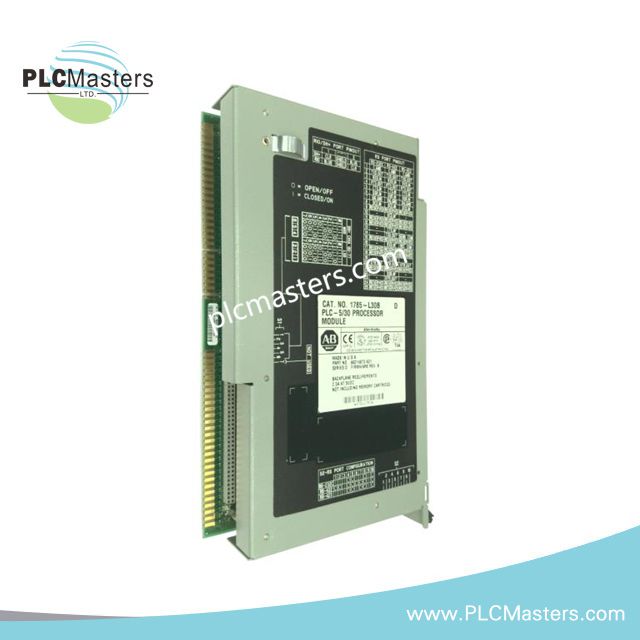

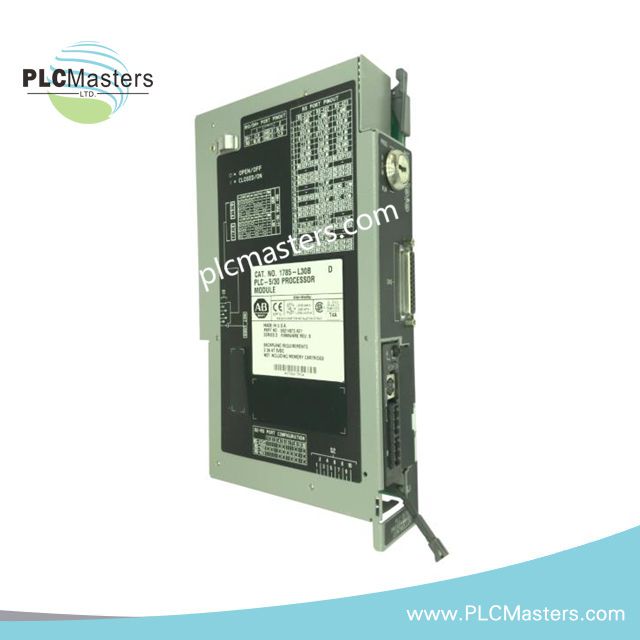

Allen-Bradley 1785-L30B PLC-5/30 Processor Controller
$123.00
$320.00
Description
Product Description
The 1785-L30B processor module from Allen-Bradley is a PLC-5/30 programmable controller designed for medium to large-scale industrial automation systems requiring reliable discrete and analog I/O management. As part of the PLC-5 family, this controller combines integrated communication capability, expandable remote I/O architecture, and battery-backed memory retention for continuous process control applications.
The Allen-Bradley 1785-L30B supports up to 32K words of user memory and accommodates high-capacity I/O configurations across local and remote chassis installations. Integrated communication interfaces include dual DH+/Remote I/O channels and a configurable serial communication port supporting RS-232, RS-422A, and RS-423 standards.
This processor is commonly deployed in manufacturing lines, process plants, utility systems, and legacy PLC-5 automation upgrades where dependable controller performance and broad network compatibility are required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Allen-Bradley |
| Model Number | 1785-L30B |
| Processor Series | PLC-5/30 |
| Product Type | Programmable Logic Controller |
| Processor Category | Standard Processor |
| User Memory Capacity | 32K words SRAM |
| Memory Retention | Battery-backed static RAM |
| EEPROM Backup Support | 1785-ME16, 1785-ME32, 1785-ME64, 1785-M100 |
| Maximum Total I/O | 1024 any mix or 1024 inputs + 1024 outputs |
| Maximum Analog I/O | 1024 points |
| Embedded Communication Ports | 2 DH+/Remote I/O channels |
| Serial Communication | 1 configurable RS-232/RS-422A/RS-423 port |
| Remote I/O Chassis Support | Up to 12 chassis |
| Maximum Total I/O Chassis | 29 chassis |
| Universal Remote I/O Chassis | 28 |
| Extended Local Chassis | 0 |
| Maximum I/O Racks | 4 racks |
| I/O Scan Time | 10 ms at 57.6 kbps |
| Faster I/O Scan Rates | 7 ms at 115.2 kbps, 3 ms at 230.4 kbps |
| Backplane Current Requirement | 2.3 A at 5 VDC |
| Typical Power Dissipation | 12 W |
| Compatible Power Supplies | 1771-P4S, 1771-P6S, 1771-P4S1, 1771-P6S1 |
| Battery Type | 1770-XYC |
| Coprocessor Expansion Port | Supported |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | 1.25 kg |
Communication and System Features
The 1785-L30B controller provides integrated industrial networking functions for PLC-5 architectures requiring communication with distributed I/O systems, HMIs, and supervisory networks.
Key features include:
-
Dual DH+ and Remote I/O communication channels
-
Configurable serial communication interface
-
Support for large distributed I/O installations
-
Battery-backed memory protection
-
EEPROM program backup capability
-
Rack-based PLC-5 architecture compatibility
-
High-capacity analog and discrete I/O handling
-
Expansion support for control coprocessor modules
Typical Applications
The 1785-L30B processor is commonly installed in legacy and active PLC-5 control systems across multiple industries.
Typical applications include:
-
Manufacturing automation systems
-
Material handling equipment
-
Water treatment facilities
-
Packaging machinery
-
Process control systems
-
Automotive production lines
-
Plant-wide remote I/O control
-
Industrial retrofit projects
FAQ
How much user memory does the 1785-L30B provide?
The controller includes 32K words of battery-backed SRAM memory.
Which communication interfaces are built into the processor?
The module includes two DH+/Remote I/O communication channels and one configurable serial communication port.
Can the controller support remote I/O chassis?
Yes. The processor supports up to 28 universal remote I/O chassis within PLC-5 systems.
Does the processor support EEPROM backup modules?
Yes. The 1785-L30B supports EEPROM backup modules including the 1785-ME16, 1785-ME32, 1785-ME64, and 1785-M100.
