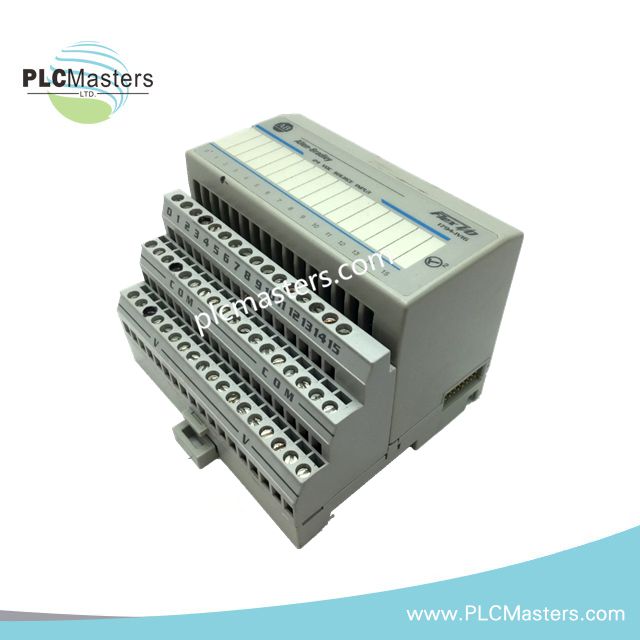

Allen-Bradley 1794-IV16 FLEX I/O Digital Input Module
$123.00
$320.00
Description
Product Description
The 1794-IV16 by Allen-Bradley is a high-density DC digital input module engineered for the FLEX I/O platform. Designed for industrial control systems requiring dependable signal acquisition, this module supports 16 non-isolated sourcing inputs and is optimized for 24V DC applications.
Built for distributed I/O architectures, the Allen-Bradley 1794-IV16 provides stable input monitoring, fast response characteristics, and efficient integration with PLC and automation networks. Its compact FLEX I/O form factor helps reduce panel space while maintaining flexible field wiring capabilities.
The module is commonly installed in manufacturing systems, conveyor controls, process automation, packaging machinery, and material handling applications where multiple DC input signals must be monitored reliably.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Series | FLEX I/O 1794 |
| Product Type | Digital DC Input Module |
| Model Number | 1794-IV16 |
| UPC | 612598172788 |
| Input Channels | 16 Inputs |
| Input Type | Non-Isolated Sourcing |
| Rated Input Voltage | 24V DC |
| Operating Voltage Range | 10 to 31.2V DC |
| Minimum ON-State Voltage | 10V DC |
| Nominal ON-State Voltage | 24V DC |
| Maximum ON-State Voltage | 31.2V DC |
| Minimum ON-State Current | 2.0 mA |
| Typical ON-State Current | 8.0 mA @ 24V DC |
| Maximum ON-State Current | 11.0 mA |
| Maximum OFF-State Voltage | 5V DC |
| OFF-State Current | 1.5 mA Maximum |
| Input Impedance | 4.7 kΩ Maximum |
| Power Dissipation | 5.7 W Maximum |
| Isolation | Non-Isolated Inputs |
| Mounting Style | FLEX I/O Terminal Base |
| Weight | 1.36 kg |
Key Features
-
16-point DC input capacity for high-density installations
-
Compatible with Allen-Bradley FLEX I/O distributed systems
-
Supports standard 24V DC industrial sensors and switches
-
Compact modular construction for reduced cabinet footprint
-
Designed for fast signal detection and reliable field monitoring
-
Suitable for remote I/O and machine-level automation systems
-
Simplifies maintenance and module replacement within FLEX architecture
Typical Applications
-
PLC-based machine automation
-
Packaging and assembly equipment
-
Conveyor and material transport systems
-
Industrial process monitoring
-
Sensor input collection
-
Remote distributed I/O stations
-
Manufacturing production lines
FAQ
What type of input signals does the 1794-IV16 support?
The module accepts 24V DC sourcing input signals from industrial devices such as proximity sensors, pushbuttons, limit switches, and photoelectric sensors.
Is the 1794-IV16 an isolated input module?
No. The 1794-IV16 uses non-isolated inputs, making it suitable for standard industrial control applications where channel isolation is not required.
Which Allen-Bradley platform is compatible with this module?
This module is designed specifically for the Allen-Bradley FLEX I/O 1794 distributed I/O system.
Can the module operate above 24V DC?
Yes. The allowable operating range extends up to 31.2V DC maximum.
