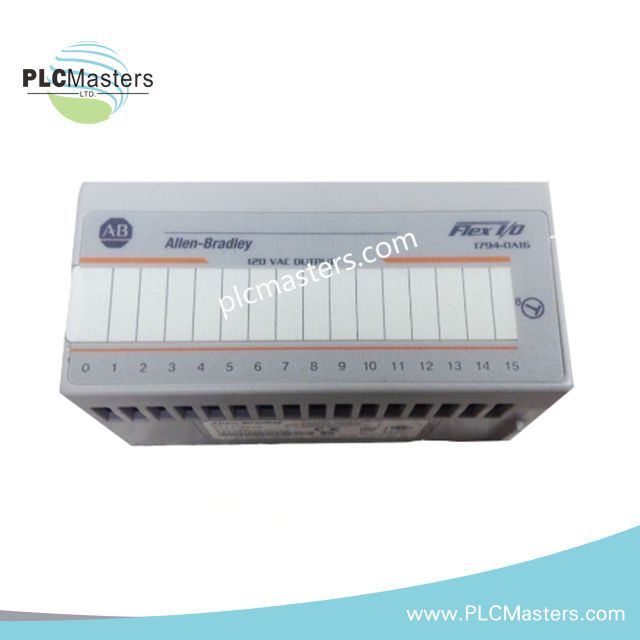

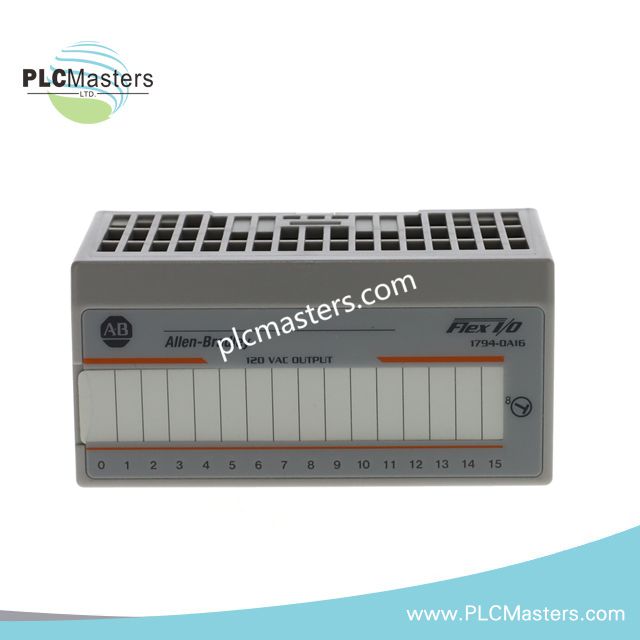

Allen-Bradley 1794-OA16 FLEX I/O AC Digital Output Module
$123.00
$320.00
Description
Allen-Bradley 1794-OA16 FLEX I/O AC Digital Output Module
The Allen-Bradley 1794-OA16, also cataloged as the 1794-OA16 FLEX I/O AC Digital Output Module, operates as a dedicated hardware component for AC actuator signal switching within Allen-Bradley FLEX I/O distributed I/O networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1794-OA16 |
| Brand | Allen-Bradley |
| Origin | United States |
| Product Type | FLEX I/O AC Digital Output Module |
| Product Line | FLEX I/O 1794 |
| Number of Outputs | 16 non-isolated AC digital outputs |
| Output Voltage Range | 74 to 132 VAC |
| Nominal Output Voltage | 120 VAC |
| Output Current Rating | 4.0 A |
| On-state Current | 5 mA minimum per output |
| On-state Voltage Drop | 1.5 VAC maximum at 0.5 A |
| Off-state Leakage Current | 2.25 mA maximum |
| Isolation Voltage | 120 V continuous, field to backplane |
| FlexBus Current | 80 mA at 5 VDC |
| Power Consumption | 4.7 W maximum at 0.5 A |
| Thermal Dissipation | 16.1 BTU/hr maximum at 0.5 A |
| Weight | 0.25 lbs |
| Dimensions | 6.9 cm x 9.4 cm x 9.4 cm |
| Operating Temp | 0 to 55 C |
| Storage Temp | -40 to 85 C |
| Mounting | DIN Rail |
| Enclosure | Open-type |
| Terminal Base Compatibility | 1794-TBN, 1794-TBNF, 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBKD, 1794-TBNK, 1794-TBNFK, 1794-TB3K, 1794-TB3SK |
| Indicators | 16 yellow field-side status indicators |
| Keyswitch Position | 8 |
| Surge Current | 7 A for 40 ms, repeatable every 8 seconds |
EtherNet/IP and FLEX I/O Backplane Integration
The 1794-OA16 interfaces with FLEX I/O adapters through the FLEXBus backplane connection. The module transfers output command data through the distributed I/O architecture while maintaining an 80 mA backplane current requirement at 5 VDC. The FLEX I/O platform supports Profinet / EtherNet/IP deterministic networks through compatible adapter modules, allowing distributed output expansion based on system I/O density requirements.
The module provides sixteen AC switching channels without channel-to-channel isolation. Field wiring is connected through compatible 1794 terminal bases, with terminal selection determined by installation requirements and application wiring configuration.
Frequently Asked Questions
Q: Does the 1794-OA16 provide isolation between individual output channels?
A: No. The 1794-OA16 provides field-to-backplane isolation at 120 V continuous but does not provide isolation between individual output channels.
Q: What terminal bases are compatible with the 1794-OA16 module?
A: The module operates with multiple FLEX I/O terminal bases including 1794-TBN, 1794-TBNF, 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBKD, 1794-TBNK, 1794-TBNFK, 1794-TB3K, and 1794-TB3SK.
Q: Can the 1794-OA16 be installed directly without a terminal base?
A: No. The module requires a compatible FLEX I/O terminal base for field-side electrical connections and DIN rail installation.
Field Installation Guidelines
- Install the module on a suitable DIN rail system with adequate mechanical support for the FLEX I/O assembly.
- Use only compatible 1794 terminal bases to establish field wiring connections.
- Route AC field wiring separately from low-level signal wiring to reduce electrical interference.
- Verify field conductor sizing according to the selected terminal base specifications.
- Connect protective grounding according to the enclosure and control panel grounding requirements.
- Confirm that the external AC power supply matches the connected field device requirements before energizing outputs.
- Maintain correct module keyswitch positioning to prevent incorrect module substitution within the FLEX I/O system.
- Verify output indicator operation after completing field wiring and network configuration checks.
