Allen-Bradley 1794-PS13 Flex I/O DC Power Supply Module
$123.00
$320.00
Description

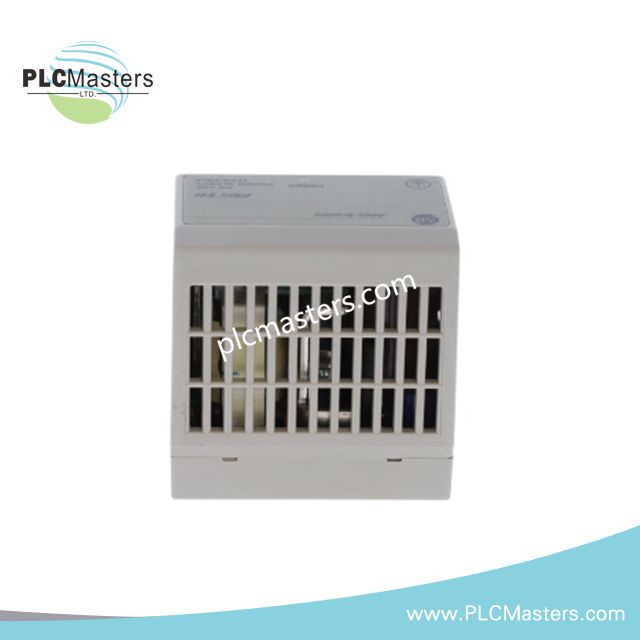

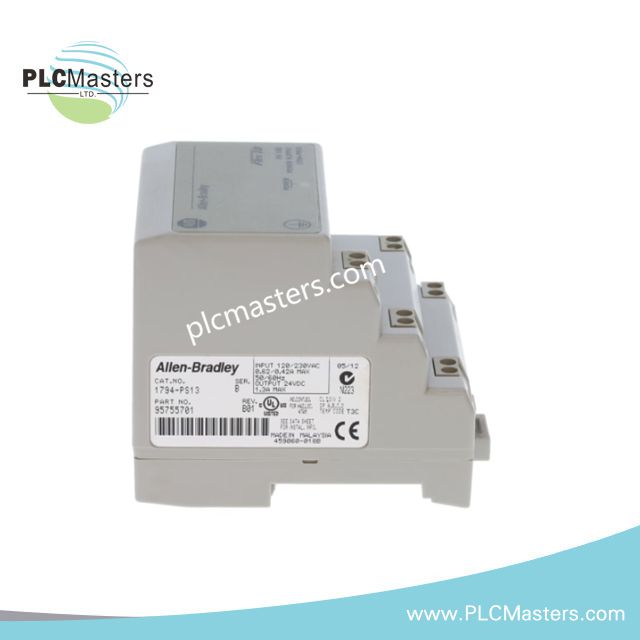

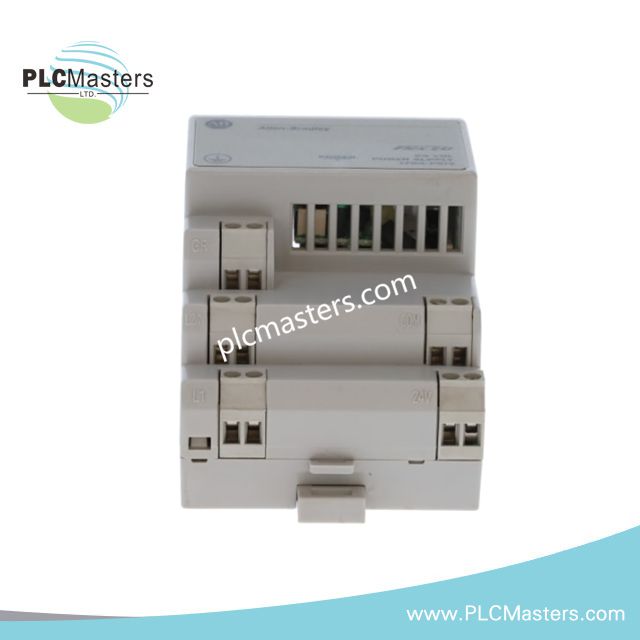

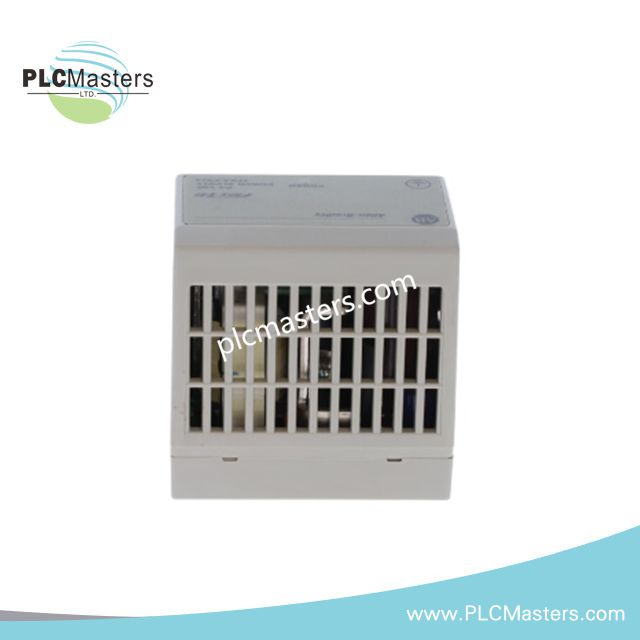

Allen-Bradley 1794-PS13 Flex I/O DC Power Supply Module
Configured for Flex I/O module power distribution in the Flex I/O 1794 system, the Allen-Bradley 1794-PS13 (1794-PS13 Flex I/O DC Power Supply Module) provides direct physical/electrical execution for converting AC input power into regulated 24 VDC output for connected I/O adapters and modules.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1794-PS13 |
| Brand | Allen-Bradley |
| Origin | USA |
| Product Type | Flex I/O DC Power Supply Module |
| Product Line | Flex I/O 1794 |
| Input Voltage Range | 85-264 VAC |
| Input Frequency Range | 47-63 Hz |
| Nominal Input Voltage | 120 VAC, 50/60 Hz; 0.6 A max. / 230 VAC, 50/60 Hz; 0.42 A max. |
| Maximum Input Current | 0.7 A |
| Output Voltage | 24 VDC nominal |
| Output Voltage Range | 20.4-27.6 VDC |
| Output Current | 1.3 A |
| Output Power | 31.2 W |
| Output Surge Capability | Supports up to 4 adapters |
| Overcurrent Protection | 1.4 A |
| Overvoltage Protection | 35 VDC |
| Isolation Voltage | 2500 VDC power supply isolation |
| Power Dissipation | 7 W maximum |
| Thermal Dissipation | 23.9 BTU/hr |
| Weight | 0.50 lbs |
| Power Consumption | 31.2 W output power |
EtherNet/IP and Flex I/O Backplane Power Architecture
The 1794-PS13 operates as an AC-powered supply module within the Allen-Bradley Flex I/O 1794 platform. The unit accepts a wide AC input range and provides regulated 24 VDC power for Flex I/O adapters and I/O modules. The module supports system power expansion by supplying sufficient output surge capacity for up to four adapters.
The Flex I/O architecture uses modular I/O density scaling through adapter and terminal base assemblies. The 1794-PS13 maintains the DC supply interface required for distributed I/O installations where field devices and controller communications are separated through remote I/O structures.
Frequently Asked Questions
Q: What input voltage range is supported by the 1794-PS13 power supply module?
A: The module accepts 85-264 VAC input voltage with an operating frequency range of 47-63 Hz.
Q: What DC output does the 1794-PS13 provide to Flex I/O modules?
A: The module provides a nominal 24 VDC output with an adjustable operating range of 20.4-27.6 VDC and a rated output current of 1.3 A.
Q: Is the 1794-PS13 designed for DIN rail installation?
A: Yes. The module is specified as a DIN rail mountable Flex I/O power supply component.
Field Installation Guidelines
- Install the 1794-PS13 on the designated DIN rail mounting structure with sufficient mechanical retention.
- Verify AC supply wiring matches the specified input voltage range before energizing the module.
- Separate AC power wiring from low-level signal wiring to reduce electrical interference coupling.
- Use appropriate grounding practices for the enclosure, DIN rail, and connected Flex I/O hardware.
- Confirm output polarity before connecting 24 VDC distribution wiring to Flex I/O adapters and modules.
- Maintain proper cable routing and terminal tightening procedures according to the installation documentation.
- Inspect isolation requirements when integrating the power supply into systems containing mixed-voltage circuits.
