Allen-Bradley 193-CB1 Configuration Terminal Cable
$123.00
$320.00
Description

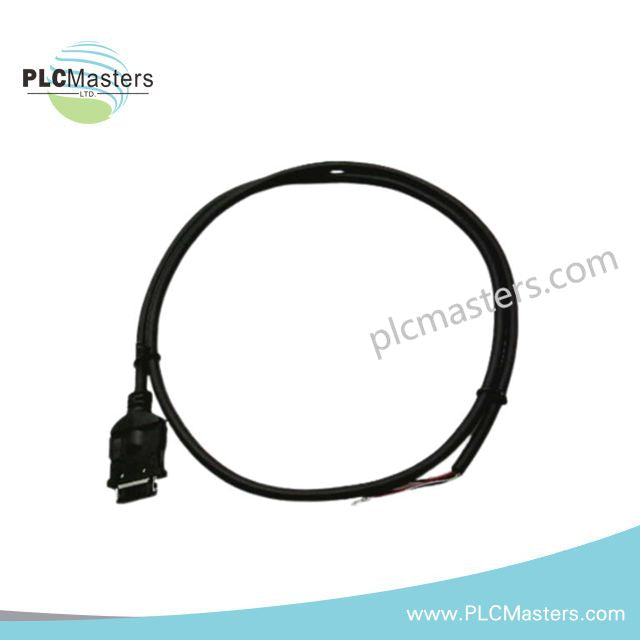

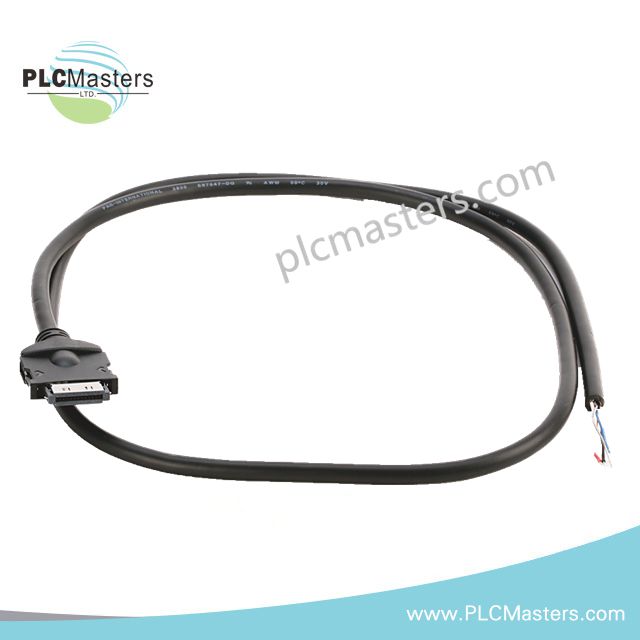

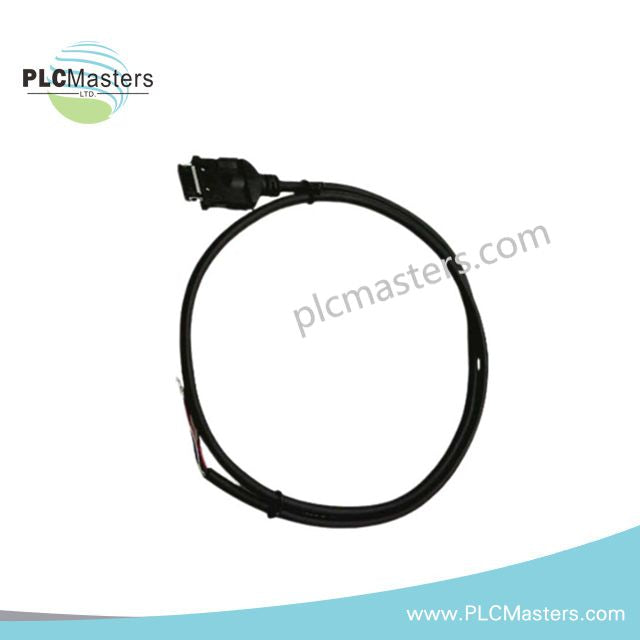

Allen-Bradley 193-CB1 Configuration Terminal Cable
The Allen-Bradley 193-CB1, also cataloged as the 193-CB1 Configuration Terminal Cable, operates as a dedicated hardware component for DeviceNet configuration terminal connection within Allen-Bradley DeviceNet network systems. The cable provides the electrical interface between the 193-DNCT terminal and compatible solid-state overload relay accessories through a plug connection and color-coded field wiring leads.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 193-CB1 |
| Brand | Allen-Bradley / Rockwell Automation |
| Weight | 0.06 lbs |
| Power Consumption | Passive cable assembly, no external power consumption |
| Product Type | Configuration Terminal Cable |
| Cable Length | 1 meter |
| Compatible Hardware | 193-DNCT Configuration Terminal, E1 Plus and E3 Plus Overload Relay accessories |
| Termination - End 1 | Configuration terminal plug for 193-DNCT interface |
| Termination - End 2 | Color-coded bare leads |
| Network Interface | DeviceNet field wiring connection |
DeviceNet Field Wiring Interface
The 193-CB1 provides direct signal routing between the 193-DNCT DeviceNet Configuration Terminal and the connected network wiring points. The bare leads follow DeviceNet field wiring color identification for V+, V-, CAN_H, CAN_L, and Shield/Drain conductors. The cable supports configuration access, parameter adjustment, and diagnostic communication through compatible Allen-Bradley DeviceNet components.
Frequently Asked Questions
Q: Does the 193-CB1 require an external power supply?
A: No. The 193-CB1 is a passive communication cable assembly and does not contain powered electronic circuitry.
Q: What wiring points are provided by the bare lead termination?
A: The bare leads correspond to standard DeviceNet conductors including V+, V-, CAN_H, CAN_L, and Shield/Drain connections.
Q: Can the 193-CB1 be used with non-DeviceNet terminals?
A: The cable is designed for the 193-DNCT Configuration Terminal interface and compatible DeviceNet wiring applications. Compatibility with other terminals requires matching electrical and mechanical interfaces.
Field Installation Guidelines
Install the 193-CB1 with the 193-DNCT plug fully seated at the configuration terminal interface. Route the bare leads according to DeviceNet wiring practices and maintain separation from high voltage power conductors to reduce electrical interference.
Connect the Shield/Drain conductor according to the grounding requirements of the DeviceNet installation. Verify CAN_H and CAN_L polarity before network energization. Avoid excessive bending stress at the cable terminations and maintain proper cable routing inside the control cabinet.
