Allen-Bradley 20-COMM-C ControlNet Adapter Module
$123.00
$320.00
Description
Product Description
The 20-COMM-C is a ControlNet communication adapter developed by Allen-Bradley for integration of PowerFlex drives and compatible motor control products into ControlNet industrial networks. The module serves as a communication bridge between the drive DPI interface and ControlNet architecture, enabling deterministic high-speed data exchange for automation and motion applications.
This adapter is designed for installation in PowerFlex drive families and selected Rockwell Automation motor control platforms. It supports scheduled and unscheduled messaging over ControlNet and allows centralized monitoring, parameter access, diagnostics, and control from PLC or SCADA systems.

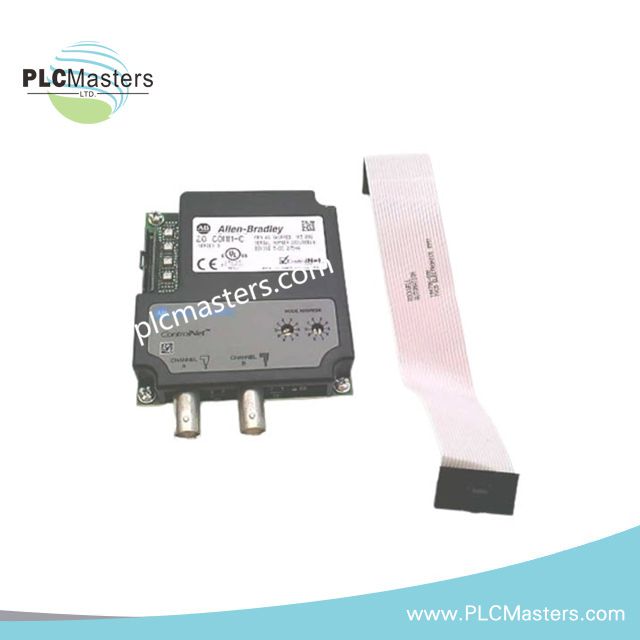

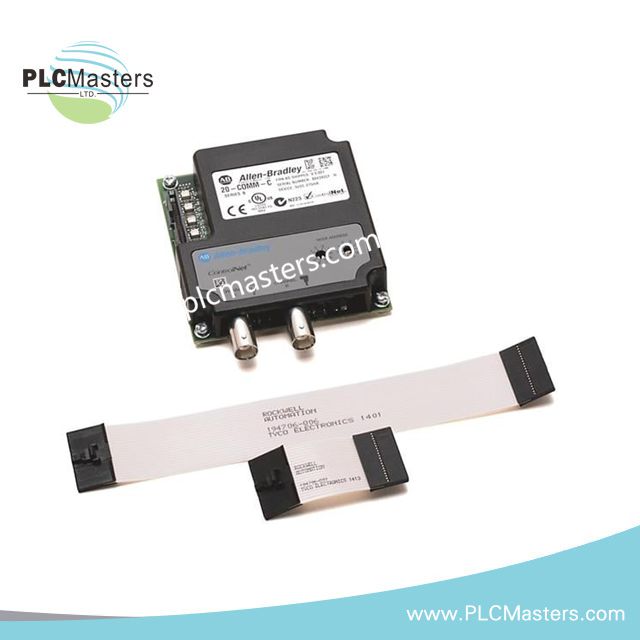

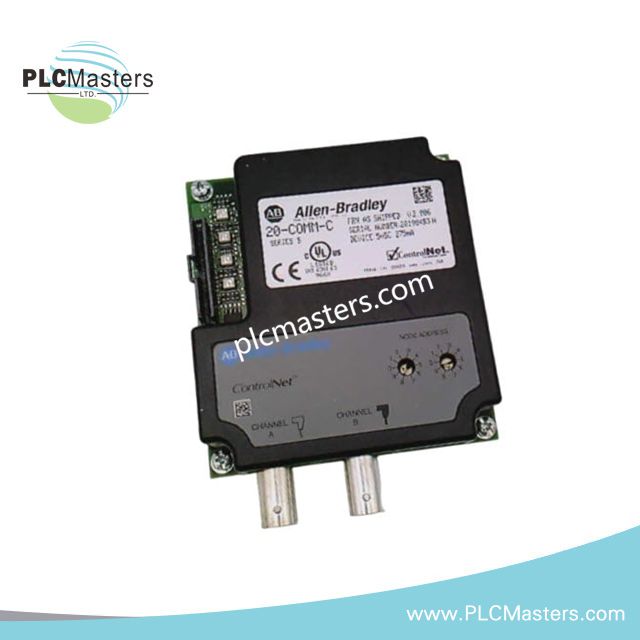

The compact module includes dual coaxial network ports, onboard node-address switches, and LED diagnostics for simplified commissioning and maintenance.
Technical Specifications
| ParameterSpecification | |
| Manufacturer | Allen-Bradley |
| Model | 20-COMM-C |
| Product Family | PowerFlex Architecture Class |
| Product Type | ControlNet Communication Adapter |
| Communication Protocol | ControlNet |
| Drive Interface | DPI (Drive Peripheral Interface) |
| DPI Connector | 20-pin DPI port |
| Network Ports | Dual BNC coaxial ports |
| Communication Speed | 5 Mbps full duplex |
| Minimum RPI | 5 ms |
| Supported Connections | Up to 30 TCP connections |
| LED Indicators | 4 status LEDs |
| Address Configuration | Rotary node address switches |
| Input Power | Supplied by host drive |
| Electrical Consumption | 275–350 mA @ 5 VDC |
| External Network Power | Not required |
| Mounting Type | Internal drive-mounted module |
| Operating Temperature | 10°C to 50°C |
| Storage Temperature | -40°C to 85°C |
| Weight | 0.40 lbs |
| Enclosure Rating | IP20 / NEMA Type 1 when installed |
| Certifications | UL, cUL, CE |
Compatible Equipment
The 20-COMM-C adapter supports communication integration with multiple Rockwell Automation products using DPI architecture.
Compatible platforms include:
- PowerFlex 70 drives
- PowerFlex 700 series
- PowerFlex 700H
- PowerFlex 700S
- PowerFlex 700L
- PowerFlex 750 series
- PowerFlex Digital AC Drives
- DPI External Communication Kits
- SMC Flex controllers
- SMC-50 smart motor controllers
Network Communication Features
The module enables deterministic communication across ControlNet systems while maintaining fast cyclic data transfer between PLCs and connected drives.
Core communication capabilities include:
- Scheduled ControlNet I/O messaging
- Unscheduled parameter communication
- High-speed drive status updates
- Remote parameter configuration
- Fault and alarm monitoring
- Peer-to-peer network integration
Hardware Design
The communication adapter includes industrial-grade network hardware intended for continuous automation system operation.
Hardware components include:
- Dual coaxial BNC network connectors
- Integrated node address selector
- Diagnostic status LEDs
- Internal DPI communication interface
- Compact modular design for PowerFlex drives
Application Areas
The 20-COMM-C module is commonly used in ControlNet-based automation systems requiring centralized drive communication and monitoring.
Typical installations include:
- Conveyor automation systems
- Packaging equipment
- Material handling applications
- Manufacturing process lines
- Industrial motor control systems
- Distributed drive architectures
FAQ
What communication protocol does the 20-COMM-C support?
The module is specifically designed for ControlNet communication networks using Rockwell Automation DPI architecture.
Can the adapter be used with PowerFlex 750 drives?
Yes. The 20-COMM-C supports several PowerFlex families, including PowerFlex 750 series drives.
Does the module require an external power supply?
No. The adapter receives operating power directly from the host drive or DPI communication kit.
What network connectors are used on this module?
The module uses dual BNC coaxial ControlNet connectors for network communication.
