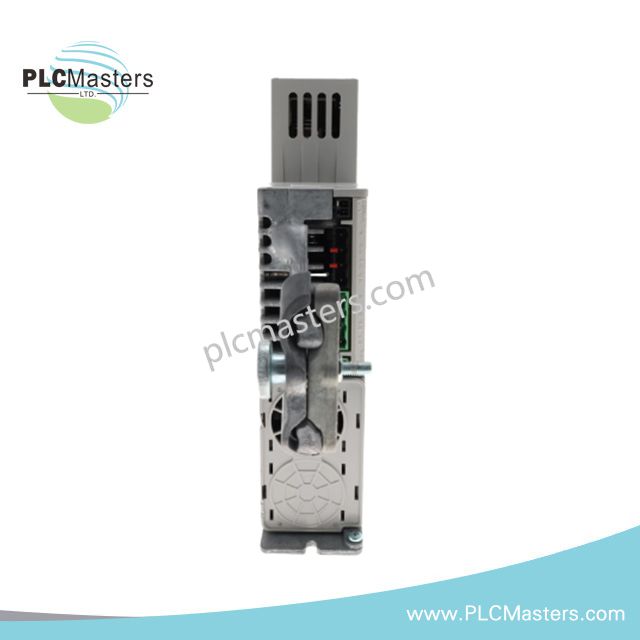

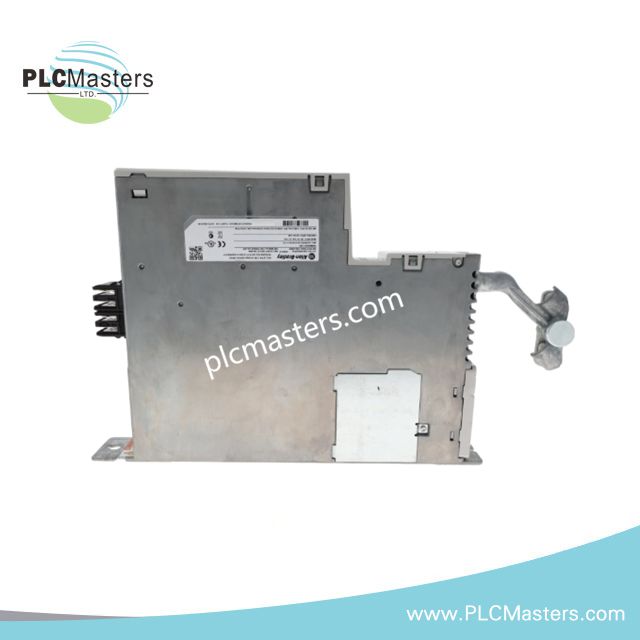

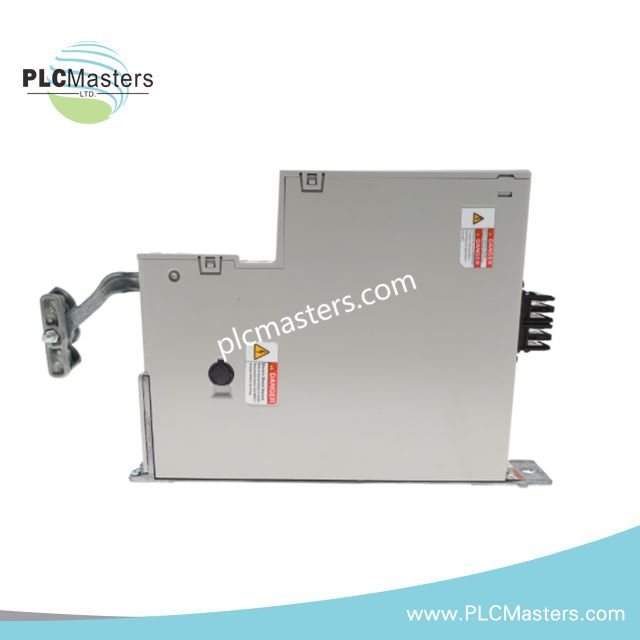

Allen-Bradley 2198-D006-ERS3 Kinetix 5700 Dual Axis Drive
$123.00
$320.00
Description
Overview
The Allen-Bradley 2198-D006-ERS3 is a dual-axis servo drive module from the Kinetix 5700 motion control platform developed by Allen-Bradley. It is engineered for high-precision multi-axis motion systems requiring fast loop response, synchronized axis control, and EtherNet/IP-based communication.
This drive integrates two independent servo axes within a single housing, reducing cabinet space while maintaining high dynamic performance for coordinated motion applications such as robotics, packaging systems, and high-speed automation lines.
Motion Control Performance
The 2198-D006-ERS3 is designed for high-bandwidth servo control:
-
Velocity loop bandwidth: up to 400 Hz per axis
-
Current loop bandwidth: up to 1000 Hz per axis
-
PWM switching frequency: 4 kHz
-
Independent dual-axis control architecture
-
High-speed torque response for dynamic load changes
These parameters allow stable operation in fast-cycle motion systems requiring precise positioning and trajectory control.
Electrical Performance
| Parameter | Specification |
|---|---|
| Model Number | 2198-D006-ERS3 |
| Product Family | Kinetix 5700 |
| Product Type | Dual-Axis Servo Drive / Inverter |
| DC Input Voltage Range | 276 – 747 VDC |
| Continuous RMS Output Current | 2.5 A per axis |
| Continuous Peak Current (0-pk) | 3.5 A |
| Peak RMS Output Current | 6.3 A |
| Peak Output Current (0-pk) | 8.8 A |
| Input Current | 2.7 A (DC bus) |
| Switching Frequency | 4 kHz |
Communication and System Integration
The drive supports EtherNet/IP communication for seamless integration into modern motion control networks.
Key integration features:
-
EtherNet/IP motion control communication
-
Multi-axis synchronization capability
-
Integration with Logix-based controllers
-
Coordinated motion profiles across servo axes
-
Real-time data exchange for motion feedback systems
Environmental and Mechanical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | 0°C to 50°C |
| Relative Humidity | 5% – 95% (non-condensing) |
| IP Protection Rating | IP20 |
| Pollution Degree | 2 |
| Cooling Method | Forced air cabinet cooling (system dependent) |
| Weight | 1.2 kg |
Key Functional Features
-
Dual-axis integrated servo inverter design
-
High-bandwidth velocity and current loop control
-
Compact drive architecture for reduced cabinet footprint
-
EtherNet/IP motion network compatibility
-
High dynamic torque response
-
Suitable for synchronized multi-axis systems
Typical Applications
The 2198-D006-ERS3 is commonly used in:
-
High-speed packaging machinery
-
Robotics and robotic positioning systems
-
CNC and precision machining equipment
-
Conveyor synchronization systems
-
Multi-axis assembly automation
-
Printing and converting machines
