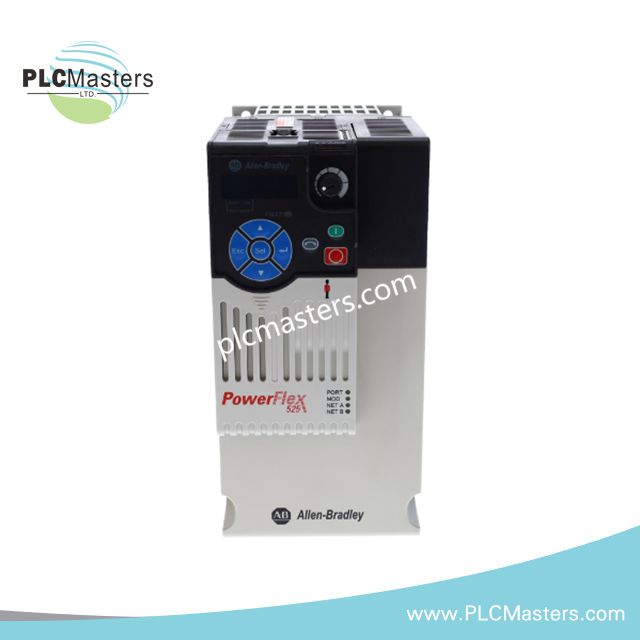

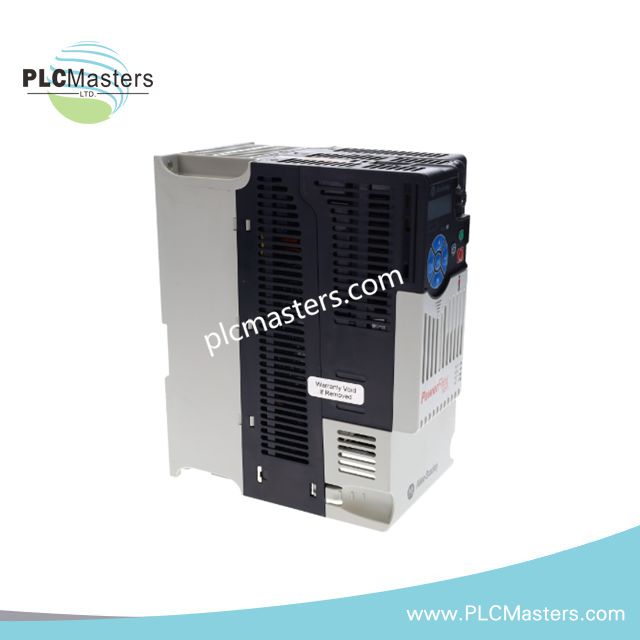

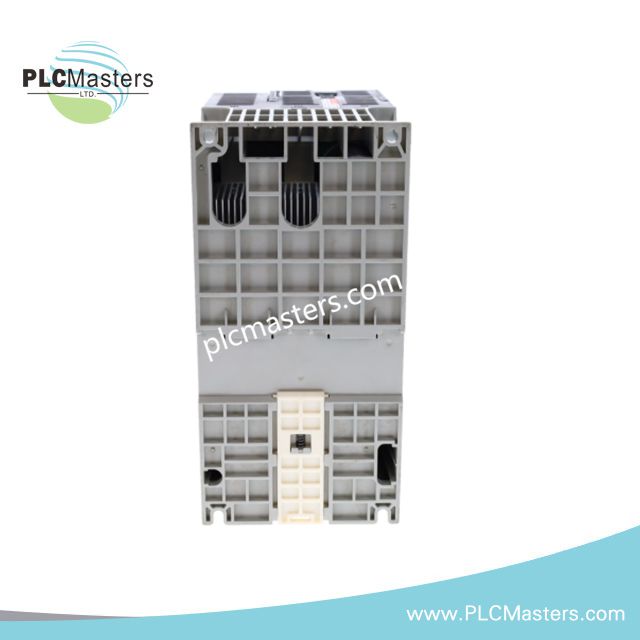

Allen-Bradley 25B-D017N104 PowerFlex 525 AC Drive
$123.00
$320.00
Description
Allen-Bradley 25B-D017N104 PowerFlex 525 AC Drive
The Allen-Bradley 25B-D017N104, also cataloged as the 25B-D017N104 AC Drive, operates as a dedicated hardware component for adjustable frequency motor control within the PowerFlex 525 drive platform. It provides three-phase AC conversion with controlled output frequency and voltage regulation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 25B-D017N104 |
| Brand | Allen-Bradley |
| Product Type | AC Drive |
| Series | PowerFlex 525 |
| Origin | United States |
| Weight | 6.50 lbs |
| Power Consumption | 221 Watts heat loss |
| Input Voltage | 380-480 VAC, 3 phase |
| Input Frequency | 47-63 Hz |
| AC Voltage Range | 323-528 VAC |
| Output Voltage | 0-460 VAC |
| Output Frequency | 0-500 Hz |
| Continuous Output Current | 17 A |
| Normal-Duty Rating | 10 HP / 7.5 kW |
| Heavy-Duty Rating | 10 HP / 7.5 kW |
| Frame Size | Size C |
| Enclosure | IP20 NEMA Type Open |
| Interface Module | Standard Interface Module |
EtherNet/IP Network Integration and Drive Control Characteristics
The PowerFlex 525 series supports industrial automation integration through embedded communication capabilities designed for deterministic drive control applications. The 25B-D017N104 provides adjustable frequency operation with configurable acceleration, deceleration, and motor control parameters.
The drive architecture supports Profinet / EtherNet/IP deterministic networks through compatible communication options within the PowerFlex 525 platform. Firmware flash compatibility and parameter retention functions allow configuration management during lifecycle maintenance activities.
The unit provides output regulation from 0 to 460 VAC with frequency control up to 500 Hz, enabling motor speed adjustment through programmed drive parameters. The Size C frame design provides the electrical connection arrangement required for PowerFlex 525 installation configurations.
Frequently Asked Questions (FAQ)
Q: Does the 25B-D017N104 include an EMC filter?
A: No. The unit is supplied without an EMC filter. External filtering requirements must be evaluated according to the installation environment and applicable EMC requirements.
Q: What input power configuration is required for this AC drive?
A: The 25B-D017N104 requires a three-phase 380-480 VAC input supply with an operating input frequency range of 47-63 Hz.
Q: What is the maximum continuous output current capability?
A: The drive provides a continuous output current rating of 17 A for motor control applications within the specified operating conditions.
Field Installation Guidelines
Install the drive in an enclosure or control cabinet environment suitable for IP20 NEMA Type Open equipment. Maintain separation between power wiring and low-level control or communication wiring to reduce electrical interference.
Connect protective grounding according to industrial drive installation practices. Use appropriate cable shielding methods for motor and communication wiring, with shield termination applied according to system grounding requirements.
Verify input voltage, phase configuration, motor rated parameters, and output current settings before commissioning. Confirm ventilation clearance and heat dissipation paths to prevent excessive thermal loading during operation.
