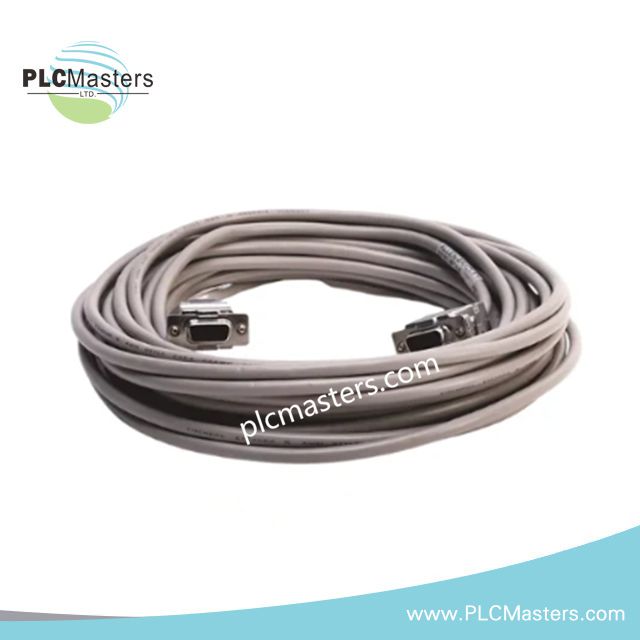

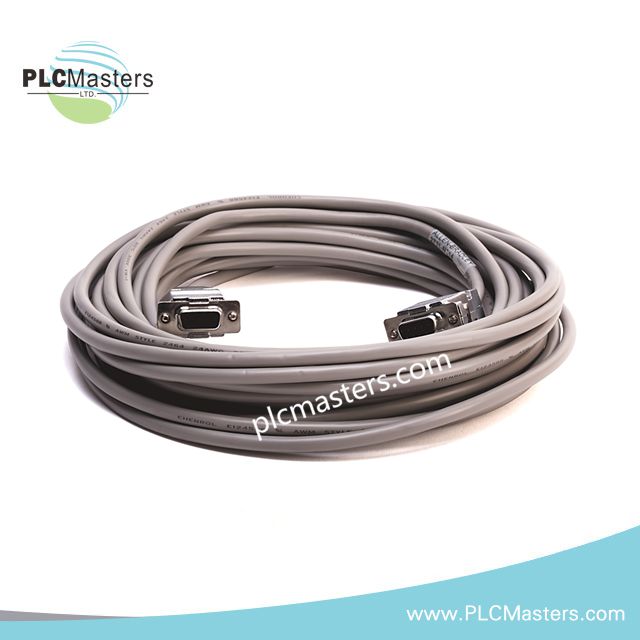

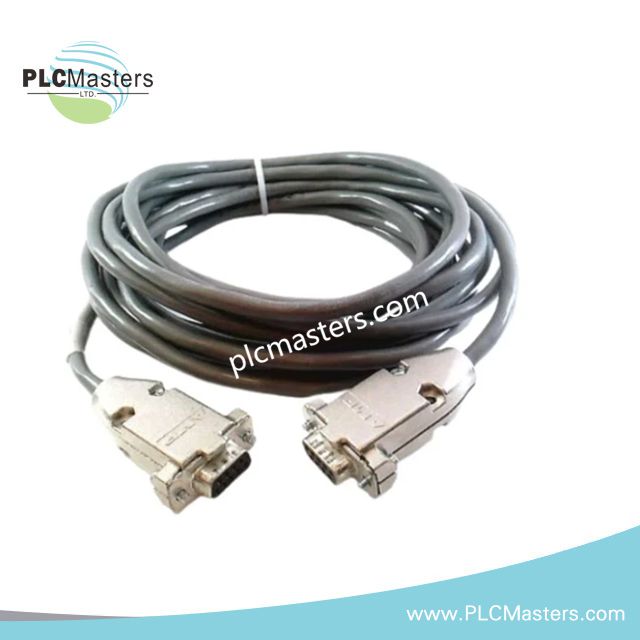

Allen-Bradley 2711-NC13 PanelView Standard Communication Cable
$123.00
$320.00
Description
Allen-Bradley 2711-NC13 PanelView Standard Communication Cable
Configured for RS-232 operating, programming, and communication functions in PanelView Standard terminal networks, the Allen-Bradley 2711-NC13 (2711-NC13 Communication Cable) provides direct physical/electrical execution between operator terminals, PCs, and controller interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711-NC13 |
| Brand | Allen-Bradley |
| Origin | Rockwell Automation |
| Product Type | PanelView Standard Communication Cable |
| Communication Interface | RS-232 |
| Cable Function | Operating, programming, and print communication |
| Connector Type | 9-pin D-Shell to 9-pin D-Shell |
| Cable Length | 5.0 m (16.4 ft) |
| Weight | 0.79 lbs |
| Power Consumption | Passive cable assembly, no external power consumption |
| Supported Terminals | PanelView Standard operator terminals |
| Communication Protocol | RS-232, DF1, DH-485, printer communication depending on configuration |
EtherNet/IP and PanelView Terminal Communication Interface
The 2711-NC13 cable provides a serial physical connection path for PanelView Standard operator terminals. The cable assembly supports RS-232 signal transmission between the terminal communication port and external devices including personal computers or controller serial interfaces. The connection is used for terminal configuration transfer, runtime communication, and printing functions where supported by the terminal setup.
The cable operates as a passive communication accessory and does not contain active electronic conversion circuits. Signal integrity depends on correct RS-232 wiring, connector assignment, cable routing, and grounding practices within the installation environment.
Frequently Asked Questions
Q: Does the 2711-NC13 require an external power supply?
A: No. The 2711-NC13 is a passive RS-232 communication cable and receives no operating power from an external source.
Q: Can the 2711-NC13 be used for PanelView terminal programming operations?
A: Yes. The cable provides the RS-232 connection required for programming, operating communication, and data transfer functions supported by compatible PanelView Standard terminals.
Q: What installation limitation applies to RS-232 communication using this cable?
A: The cable installation should follow RS-232 wiring practices, including separation from high-voltage power conductors and proper cable routing to minimize electrical interference.
Field Installation Guidelines
Install the 2711-NC13 cable between the PanelView terminal serial communication port and the designated RS-232 device interface.
- Verify connector pin assignment before connection to the terminal or controller port.
- Route the communication cable separately from motor power cables, high-current conductors, and switching circuits.
- Maintain proper cable shielding practices according to the control panel grounding design.
- Secure the cable to prevent mechanical stress on the 9-pin D-Shell connectors.
- Confirm the terminal communication configuration matches the selected RS-232 protocol before transferring programs or operating data.
