Allen-Bradley 2711-T10C15L1 PanelView 1000 Standard Operator Terminal
$123.00
$320.00
Description

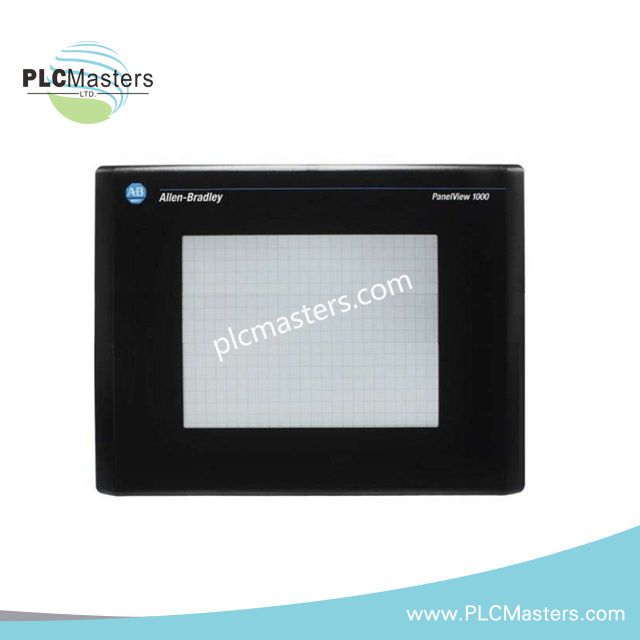

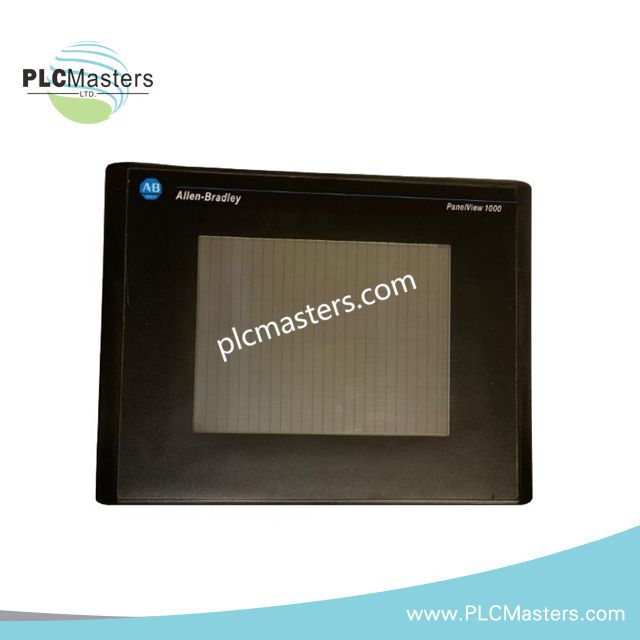

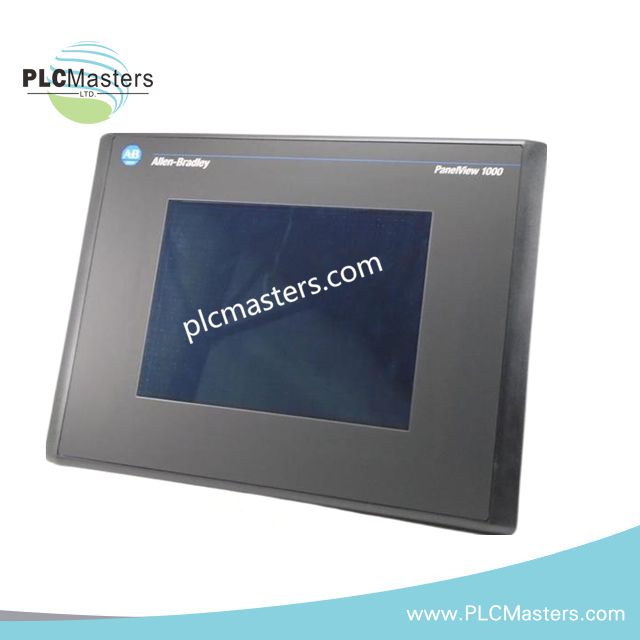

Allen-Bradley 2711-T10C15L1 PanelView 1000 Standard Operator Terminal
Configured for operator touch input and ControlNet communication in PanelView Standard systems, the Allen-Bradley 2711-T10C15L1 (2711-T10C15L1 operator terminal) provides direct display and control interaction. The unit uses a 10.1 in color TFT display, analog resistive touchscreen, ControlNet, and RS-232 communication.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711-T10C15L1 |
| Brand | Allen-Bradley |
| Product Family | PanelView Standard Terminals |
| Product Line | PanelView 1000 |
| Product Type | PanelView 1000 Standard Operator Terminal |
| Weight | 6 lb |
| Display Size | 10.1 in |
| Display Type | Active Matrix TFT with CCF backlight |
| Display Color | Multi-Color |
| Display Area | 211 x 158 mm (8.3 x 6.2 in.) |
| Resolution | 640 x 480 pixels |
| Touchscreen | Analog resistive touchscreen |
| Touch Cells | 384 (24 columns x 16 rows) |
| Touch Cell Size | 26 x 30 pixels |
| Application Memory | 1008K bytes for application screens |
| Communication Ports | ControlNet; RS-232 printer port |
| Input Voltage | 18 to 32 VDC |
| Nominal Supply | 24 VDC |
| Heat Dissipation | 39 W (132 BTU/hr) |
| Operating Temperature | 0 to 55 deg C |
| Enclosure Type | NEMA Type 12/13 or 4X |
| Backlight | 100,000 hr LED backlight life |
| Input Type | Touch |
PanelView Standard Display and Communication Interface
The 2711-T10C15L1 combines a 640 x 480 pixel TFT display with analog resistive touch input. The touchscreen provides 384 defined cells arranged across 24 columns and 16 rows. ControlNet provides the primary network communication interface, while RS-232 supports printer communication.
The specified supply range is 18 to 32 VDC with 24 VDC nominal input. Therefore, field wiring should maintain the supply within the documented operating range under actual load conditions.
Frequently Asked Questions (FAQ)
Q: What communication interfaces are provided on the 2711-T10C15L1?
A: The terminal provides ControlNet communication and an RS-232 port designated for printer communication.
Q: What supply voltage does the operator terminal require?
A: The specified input range is 18 to 32 VDC, with 24 VDC identified as the nominal supply voltage.
Q: What display and touch technology does the terminal use?
A: The unit uses a 10.1 in multi-color TFT display with analog resistive touchscreen input.
Field Installation Guidelines
- Install the terminal in a panel cutout compatible with the specified enclosure and mounting arrangement.
- Provide a regulated 24 VDC supply capable of maintaining voltage within the documented 18 to 32 VDC range.
- Route DC power wiring separately from high-voltage conductors and high-current switching circuits.
- Keep ControlNet communication cabling separated from power conductors and significant electromagnetic noise sources.
- Maintain shield continuity according to the ControlNet installation requirements applicable to the connected network.
- Bond the panel enclosure and protective grounding system according to applicable electrical installation standards.
- Verify connector polarity and terminal assignments before applying the 24 VDC supply.
- Avoid connecting or disconnecting communication wiring while energized unless the applicable installation procedure explicitly permits hot connection.
- Confirm touchscreen operation after mechanical installation and verify that the display remains free from mechanical interference.
- Maintain the specified 0 to 55 deg C operating environment during continuous operation.
- Inspect the installation for adequate clearance and ventilation around the terminal before commissioning.
- Verify ControlNet communication and RS-232 printer communication independently after power-up.
