Allen-Bradley 2711-T10C16 PanelView 1000 Standard Operator Terminal
$123.00
$320.00
Description

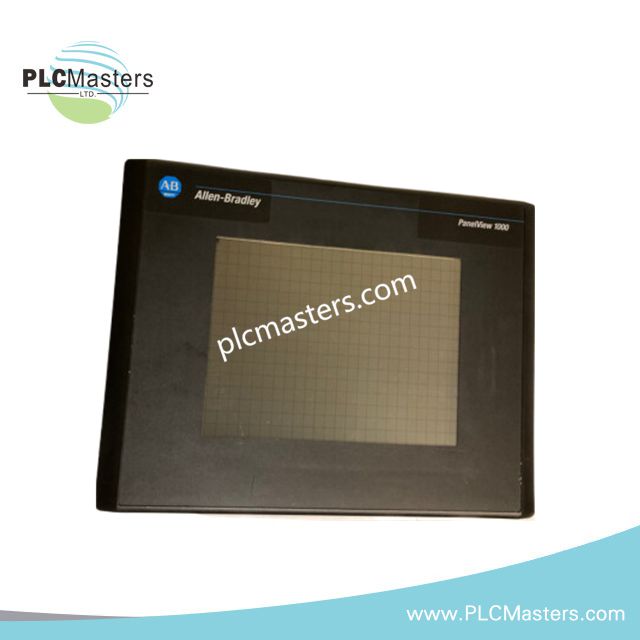

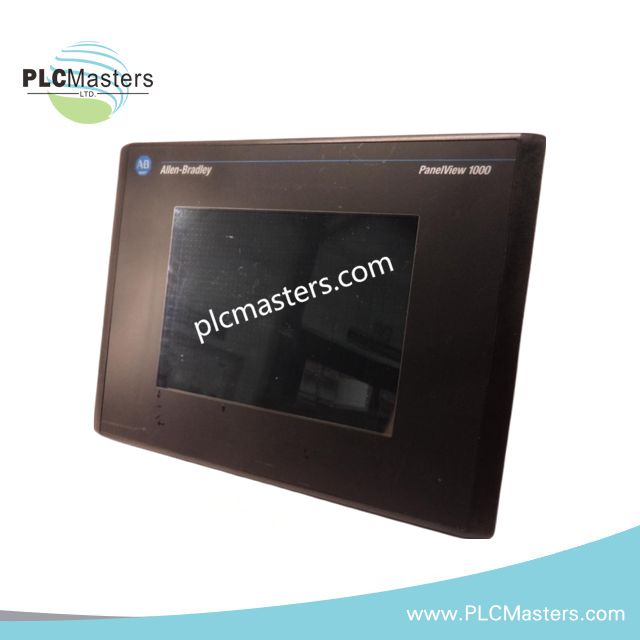

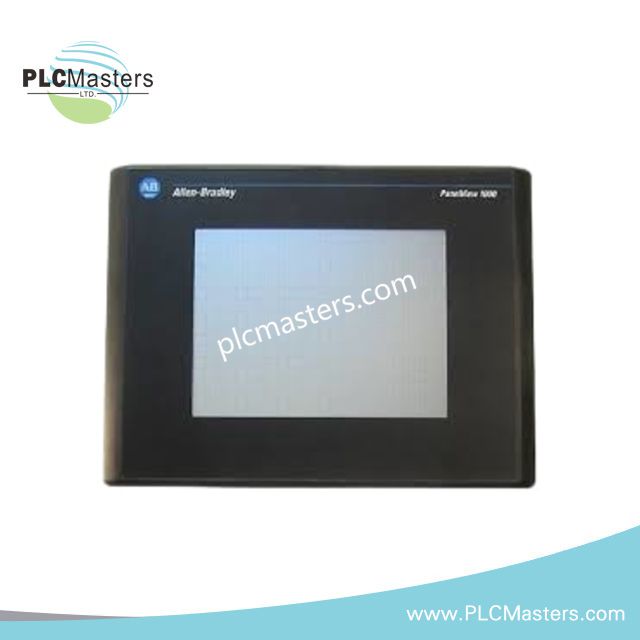

Allen-Bradley 2711-T10C16 PanelView 1000 Standard Operator Terminal
The Allen-Bradley 2711-T10C16, also cataloged as the 2711-T10C16 PanelView 1000 terminal, provides touchscreen operator interaction and serial communication through DF1 RS-232.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711-T10C16 |
| Brand | Allen-Bradley |
| Product Type | PanelView 1000 Standard Operator Terminal |
| Product Line | PanelView 1000 |
| Product Family | PanelView Standard Terminals |
| Weight | 6 lb |
| Operating Temp | 0 to 55 deg C (32 to 131 deg F) |
| Power Consumption | 39 W heat dissipation; input power consumption not specified |
| Input Voltage | 85 to 264 VAC |
| Input Frequency | 47 to 63 Hz |
| Display Size | 10.1 in |
| Display Area | 211 x 158 mm (8.3 x 6.2 in) |
| Display Type | Active Matrix TFT with CCF backlight |
| Display Color | Multi-color |
| Resolution | 640 x 480 pixels |
| Input Type | Touch |
| Touchscreen Matrix | 24 columns x 16 rows, 384 cells |
| Touch Cell Size | 26 x 30 pixels |
| Application Memory | 1008K bytes for application screens |
| Listed Memory | 256 KB |
| Communication Ports | RS-232 DF1; RS-232 printer port |
| Communication Protocol | DF1 |
| Backlight Life | 100,000 hr listed |
| Enclosure | NEMA Type 12/13 or Type 4X operator interface |
| Heat Dissipation | 39 W (132 BTU/hr) |
| GTIN | 10611320035824 |
PanelView Standard Operator Interface and Serial Communication
The 2711-T10C16 uses a 10.1 in touchscreen display with 640 x 480 pixel resolution.
The operator interface provides 24 columns by 16 rows of touch cells for screen interaction.
For communications, the terminal provides an RS-232 port configured for DF1 communication with compatible control equipment.
A second RS-232 interface provides printer connectivity according to the supplied technical specifications.
The specified supply range is 85 to 264 VAC at 47 to 63 Hz.
The enclosure specification identifies NEMA Type 12/13 or Type 4X operator-interface construction.
Frequently Asked Questions
Q: What communication interface does the 2711-T10C16 provide?
A: The terminal provides an RS-232 DF1 communication port and a separate RS-232 printer port.
Q: What display resolution and touchscreen structure does this terminal use?
A: The display provides 640 x 480 pixels, while the touchscreen contains 384 cells arranged as 24 columns by 16 rows.
Q: Does the supplied data specify actual power consumption?
A: No. The supplied data specifies 39 W heat dissipation, but does not state electrical power consumption.
Field Installation Guidelines
Install the terminal within the specified 0 to 55 deg C operating temperature range.
Provide an AC supply within the stated 85 to 264 VAC input range and 47 to 63 Hz frequency.
Verify the connected supply circuit and protective grounding before energizing the operator terminal.
Route RS-232 communication wiring separately from high-voltage conductors and high-current switching circuits.
Maintain appropriate cable shielding and terminate shields according to the installed control-system grounding practice.
Avoid routing serial communication cables parallel to motor, contactor, transformer, or variable-frequency-drive power wiring.
Confirm the DF1 device configuration, serial parameters, and connected controller interface before commissioning communication.
Protect the touchscreen and display assembly from mechanical impact during panel installation and service operations.
Verify enclosure sealing and panel cutout requirements against the applicable PanelView Standard installation documentation.
Do not apply field wiring modifications that exceed the terminal's specified electrical or environmental limits.
