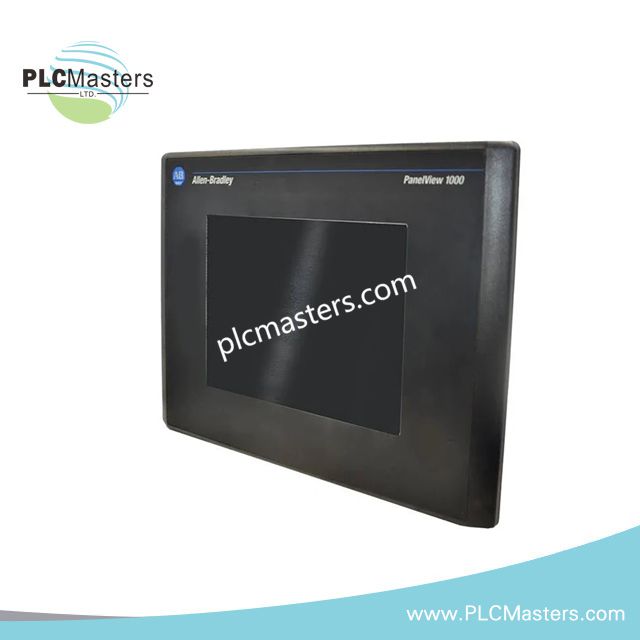

Allen-Bradley 2711-T10C1L1 PanelView 1000 Standard Operator Terminal
$123.00
$320.00
Description
Allen-Bradley 2711-T10C1L1 PanelView 1000 Standard Operator Terminal
The Allen-Bradley 2711-T10C1L1, also cataloged as the 2711-T10C1L1 PanelView 1000 Standard Operator Terminal, provides touchscreen operator input, color graphic display, Remote I/O communication, and RS-232 printer connectivity. The terminal operates from a nominal 24 VDC supply and accepts an 18 to 32 VDC input range.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711-T10C1L1 |
| Brand | Allen-Bradley |
| Product Family | PanelView Standard Terminals |
| Product Line | PanelView 1000 |
| Product Type | Standard Operator Terminal |
| Input Type | Touch |
| Display Size | 10.1 in. |
| Display Type | Active Matrix TFT |
| Backlight | Cold Cathode Fluorescent (CCF); supplied data also specifies 100,000 hr LED backlight life |
| Display Area | 211 x 158 mm |
| Resolution | 640 x 480 pixels |
| Display Color | Multi-Color |
| Touchscreen | 384 cells, 24 columns x 16 rows |
| Touch Cell Size | 26 x 30 pixels |
| Application Memory | 1008K bytes for application screens |
| Memory | 256 KB |
| Communication Ports | Remote I/O; RS-232 printer port |
| Communication | Remote I/O and RS-232 |
| Input Voltage Range | 18 to 32 VDC |
| Nominal Supply | 24 VDC |
| Power Consumption / Heat Dissipation | 39 W, 132 BTU/hr |
| Enclosure Type | NEMA Type 12/13 or 4X operator interface |
| Operating Temp | 0 to 55 deg C |
| Weight | 5.85 lb |
PanelView Touchscreen and Remote I/O Interface
The 2711-T10C1L1 uses a 10.1 in. color touchscreen for operator commands and graphical data presentation. The display resolution is 640 x 480 pixels, with 384 configured touch cells across 24 columns and 16 rows.
Remote I/O provides the primary control-system communication interface specified for this terminal. An additional RS-232 port supports printer communication and is electrically separate from the Remote I/O function.
The DC input circuit accepts 18 to 32 VDC, with 24 VDC specified as the nominal supply voltage. Therefore, field wiring should maintain the specified voltage range at the terminal input.
Frequently Asked Questions
Q: What DC supply voltage does the 2711-T10C1L1 require?
A: The specified input range is 18 to 32 VDC, with 24 VDC identified as the nominal operating supply.
Q: Which communication interfaces are provided on this terminal?
A: The terminal provides Remote I/O communication and an RS-232 interface intended for printer communication.
Q: What are the physical display characteristics?
A: The terminal has a 10.1 in. multi-color display with 640 x 480 pixel resolution and touchscreen input.
Field Installation Guidelines
Install the terminal in a panel cutout that maintains the specified enclosure and operator-interface requirements. Confirm mechanical clearance before securing the unit.
Use a regulated DC supply within the specified 18 to 32 VDC input range. Verify polarity and terminal voltage before applying power.
Route Remote I/O communication wiring separately from high-current AC conductors, motor leads, and variable-frequency drive output cables. Maintain appropriate separation where parallel routing could introduce electrical noise.
Use shielded communication cable where required by the installed Remote I/O network design. Terminate cable shields according to the system grounding specification and avoid creating unintended ground loops.
Keep RS-232 printer wiring separated from high-energy switching circuits. Confirm connector orientation and cable termination before energizing the terminal.
Before commissioning, verify the display, touchscreen response, Remote I/O communication, RS-232 function, and DC input voltage. Record any abnormal communication or display behavior during functional testing.
