Allen-Bradley 2711-T10C8L1 PanelView Standard Terminal
$123.00
$320.00
Description

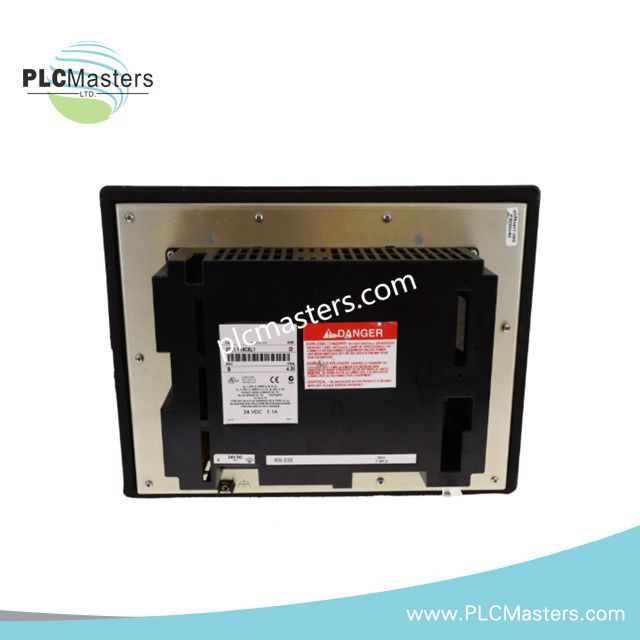

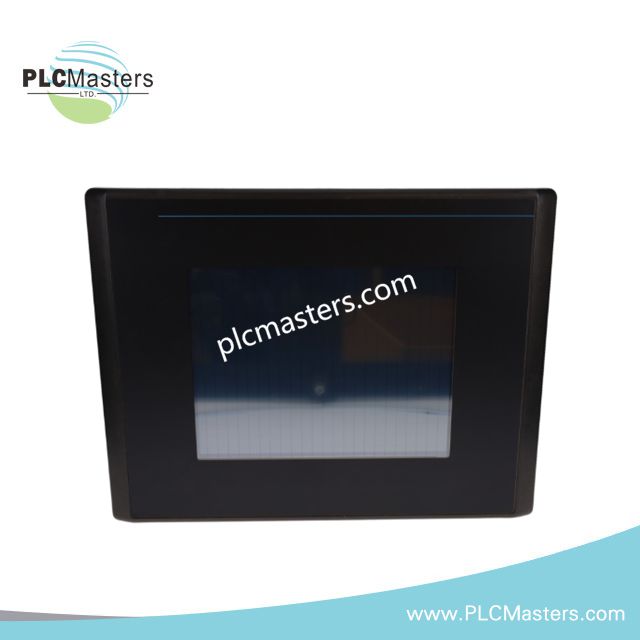

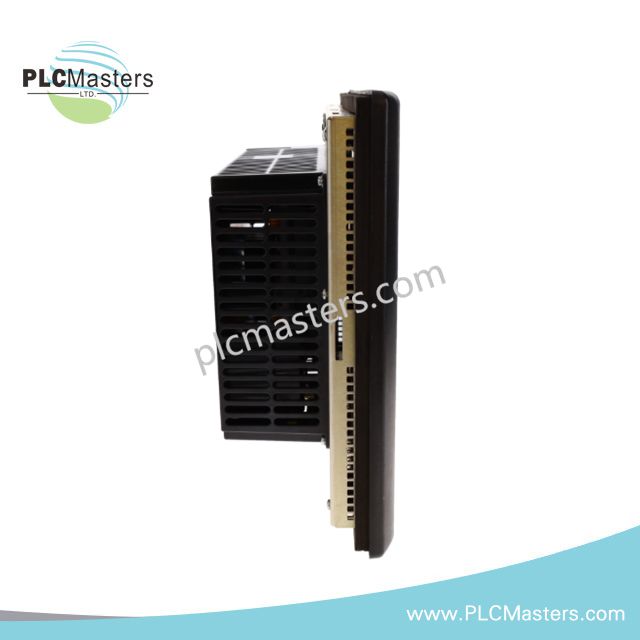

Allen-Bradley 2711-T10C8L1 PanelView Standard Terminal
The Allen-Bradley 2711-T10C8L1, also cataloged as the 2711-T10C8L1 PanelView Standard terminal, provides touchscreen operator interaction, DH+ communication, and RS-232 printer connectivity.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711-T10C8L1 |
| Brand | Allen-Bradley |
| Product Family | PanelView Standard Terminals |
| Product Line | PanelView 1000 |
| Product Type | Touchscreen Operator Terminal |
| Weight | 8 lb |
| Input Voltage Range | 18-32 VDC |
| Nominal Input Supply | 24 VDC |
| Display Size | 10.1 in |
| Display Type | Color active matrix TFT |
| Display Area | 211 x 158 mm (8.3 x 6.2 in) |
| Resolution | 640 x 480 pixels |
| Display Color | Multi-color |
| Backlight | Cold Cathode Fluorescent (CCF), 50,000 hr half-life at 25 deg C |
| Operator Input | Touchscreen |
| Touchscreen Cells | 384 cells, 24 columns x 16 rows |
| Touch Cell Size | 26 x 30 pixels |
| Application Memory | 310 KB application runtime; 1008 KB nonvolatile memory |
| Communication Ports | 1 x Data Highway Plus (DH+); 1 x RS-232 printer interface |
| Enclosure | NEMA Type 12/13, Type 4X, IP54 |
| Indoor Use | Yes |
| UPC | 662468985819 |
PanelView Standard Display and Communication Characteristics
The 2711-T10C8L1 uses a 10.1 in color active matrix TFT display with 640 x 480 pixel resolution. The touchscreen provides 384 discrete cells arranged as 24 columns by 16 rows.
The communication interface includes one Data Highway Plus port for controller-network communication. In addition, one RS-232 interface provides printer connectivity.
The specified input supply range is 18-32 VDC, with 24 VDC identified as the nominal supply voltage. Therefore, external DC power wiring must remain within the specified input range.
The enclosure specification includes NEMA Type 12/13, Type 4X, and IP54 ratings for indoor operator-interface installation. However, the supplied data does not define an operating temperature range.
Frequently Asked Questions (FAQ)
Q: What DC supply voltage does the 2711-T10C8L1 require?
A: The terminal accepts 18-32 VDC, with 24 VDC specified as the nominal input supply.
Q: Which communication interfaces are provided?
A: The unit provides one Data Highway Plus communication port and one RS-232 printer interface.
Q: What touchscreen and display configuration is specified?
A: The terminal uses a 10.1 in color active matrix TFT display with 640 x 480 pixel resolution and touchscreen input.
Field Installation Guidelines
Install the terminal in a panel cutout compatible with the specified PanelView Standard enclosure configuration.
Provide a regulated 24 VDC supply and verify that measured input voltage remains within the specified 18-32 VDC range.
Route DC power wiring separately from high-voltage switching conductors and high-current motor circuits where practical.
Keep DH+ communication cabling separated from high-noise power conductors to reduce conducted and radiated interference.
Terminate cable shields according to the installed control-system grounding design and avoid creating unintended ground loops.
Use the specified RS-232 interface only for compatible printer connections and maintain appropriate cable routing.
Verify enclosure sealing, panel mounting, and cable entry arrangements before energizing the operator terminal.
Do not install the unit outdoors because the supplied enclosure specification identifies indoor use only.
