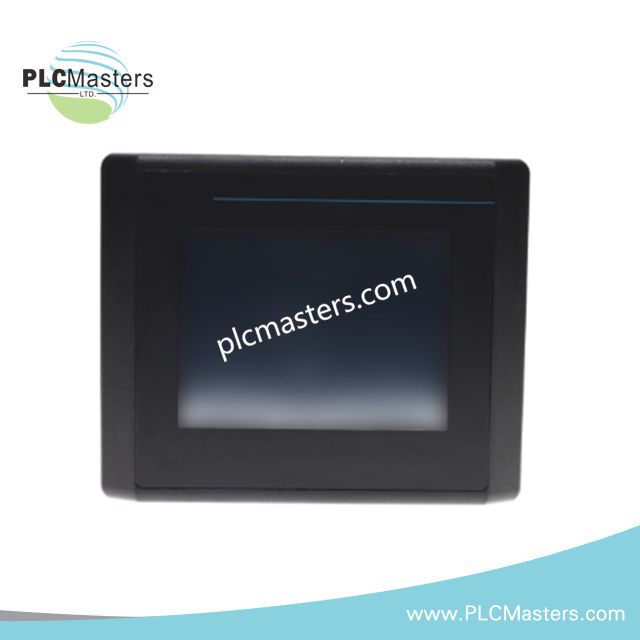

Allen-Bradley 2711-T6C16L1 PanelView 600 HMI Terminal Color
$123.00
$320.00
Description
Overview
The Allen-Bradley PanelView 600 Standard series HMI, 2711-T6C16L1, is a compact operator interface designed for machine-level visualization and control. It combines a 5.7-inch color TFT display with a resistive touchscreen and dual RS-232 communication ports for industrial control integration and printer connectivity.
Key Technical Specifications
-
Display: 5.7-inch Active Matrix TFT color screen
-
Resolution: 320 × 240 pixels
-
Viewing Area: 115 × 87 mm (4.54 × 3.43 in)
-
Backlight: CCFL, field-replaceable, 50,000-hour half-life @ 25°C
-
Touch Interface: Analog resistive touchscreen (128 touch cells)
-
Input Voltage: 18–32 VDC (24 VDC nominal)
-
Power Consumption: Approx. 24 W max
-
Operating Temperature: 0 to 55°C
-
Memory: 190 KB runtime application memory / 240 KB non-volatile storage
-
Communication Ports:
-
RS-232 (DF1 protocol)
-
RS-232 printer / download interface
-
Heat Dissipation: 24 W
-
Weight: 2.12 lbs
Communication & Integration
This terminal supports Allen-Bradley DF1 serial communication via RS-232, enabling direct integration with compatible PLC systems. The secondary RS-232 port provides printer or download functionality for local data output and maintenance operations.
Functional Characteristics
-
Industrial-grade resistive touchscreen for glove-compatible operation
-
Stable CCFL backlighting suitable for continuous industrial environments
-
Compact HMI design optimized for PanelView 600 mounting standards
-
Dual-port RS-232 architecture for flexible system integration
Applications
-
Machine-level operator panels
-
Small-scale PLC visualization systems
-
Packaging and material handling equipment
-
Standalone equipment status monitoring
-
Legacy Allen-Bradley DF1-based control systems
FAQ
Q1: Does this model support Ethernet communication?
No, 2711-T6C16L1 uses RS-232 serial communication only (DF1 and printer interface).
Q2: Is the touchscreen capacitive or resistive?
It uses an analog resistive touchscreen designed for industrial environments.
Q3: Can the backlight be replaced?
Yes, the CCFL backlight is field-replaceable.
