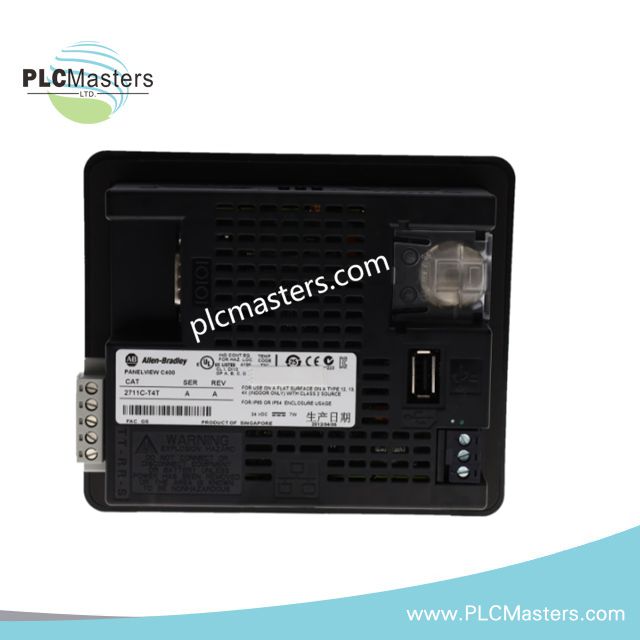

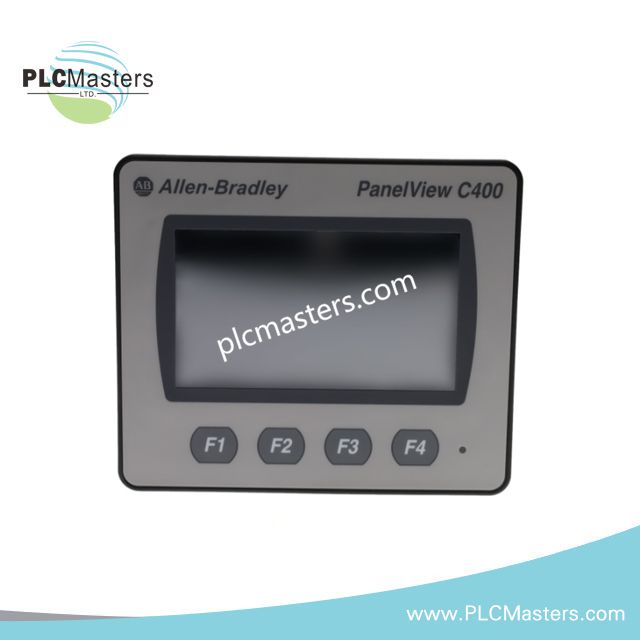

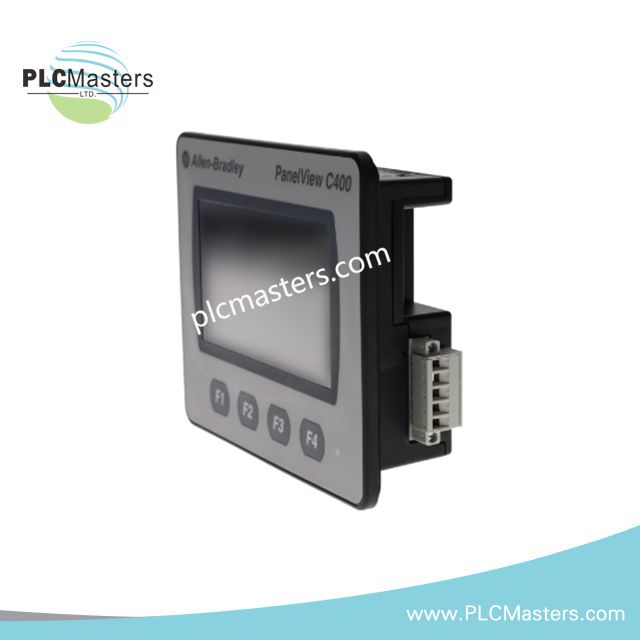

Allen-Bradley 2711C-T4T PanelView C400 Component Terminal
$123.00
$320.00
Description
Allen-Bradley 2711C-T4T PanelView C400 Component Terminal
The Allen-Bradley 2711C-T4T, also cataloged as the 2711C-T4T PanelView C400 Component Terminal, operates as a dedicated hardware component for operator interface execution within PanelView Component HMI networks. The unit provides touchscreen input, color TFT display output, and serial/Ethernet communication interfaces for direct machine interaction.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711C-T4T |
| Brand | Allen-Bradley |
| Product Type | PanelView C400 Component Terminal |
| Series | C400 |
| Weight | 0.82 lbs |
| Operating Temp | Not specified in provided data |
| Power Consumption | 5 W |
| Input Voltage | 18...30 VDC, 24 VDC nominal |
| Display Type | Color transmissive TFT active matrix LCD |
| Display Size | 4.3 in diagonal |
| Display Resolution | 480 x 272 pixels |
| Input Method | Analog touchscreen |
| Backlight | Minimum 40,000 hours life, not replaceable |
| Communication Interfaces | RS-232 DH-485, RS-232 DF1, RS-485, Ethernet, USB |
| Touch Actuation Rating | 1 million presses |
Profinet / EtherNet/IP Deterministic Network Interface Characteristics
The 2711C-T4T integrates Ethernet communication capability for connection within PanelView Component HMI environments. Serial communication interfaces including RS-232 and RS-485 support device-level data exchange with compatible controllers and multi-vendor communication configurations. The communication architecture supports direct operator data transfer between the terminal and connected control devices.
The terminal design supports PLC-oriented interface applications where display data, touchscreen commands, and communication traffic are processed through the embedded PanelView Component hardware platform. Interface selection depends on the connected controller protocol and system network configuration.
Frequently Asked Questions
Q: Does the 2711C-T4T support hot-swap replacement during operation?
A: The provided technical data does not specify hot-swap capability. Replacement should be performed with the terminal isolated from the 24 VDC power source according to site electrical procedures.
Q: What power supply is required for the 2711C-T4T?
A: The terminal requires a 24 VDC nominal input supply within the specified 18...30 VDC input range.
Q: Can the touchscreen input be used for continuous operator interaction?
A: Yes. The touchscreen interface is rated for 1 million actuation cycles according to the provided specifications.
Field Installation Guidelines
Install the terminal in a panel cutout suitable for the PanelView C400 enclosure requirements. Use a regulated 24 VDC power source and verify polarity before energizing the device.
Route communication wiring separately from high-voltage power conductors to reduce electrical interference. For RS-232 and RS-485 connections, maintain proper cable shielding and terminate wiring according to the connected controller communication requirements.
Verify Ethernet cable routing, grounding practices, and enclosure protection before commissioning. Confirm touchscreen operation, display visibility, and communication status after installation.
