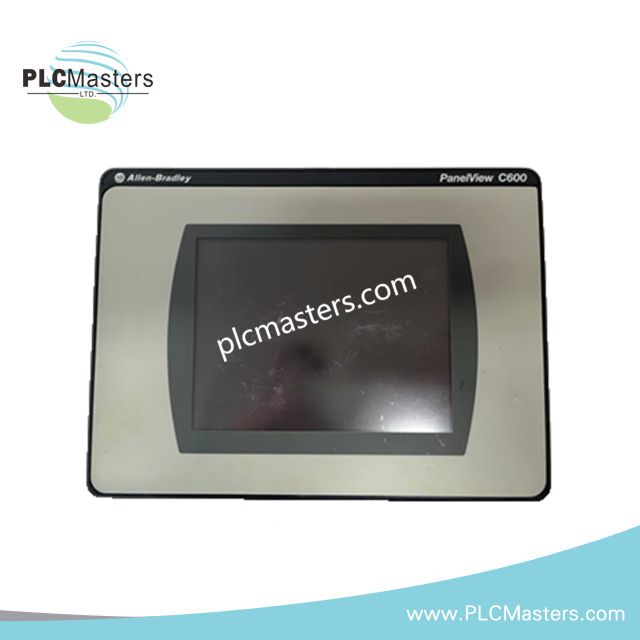

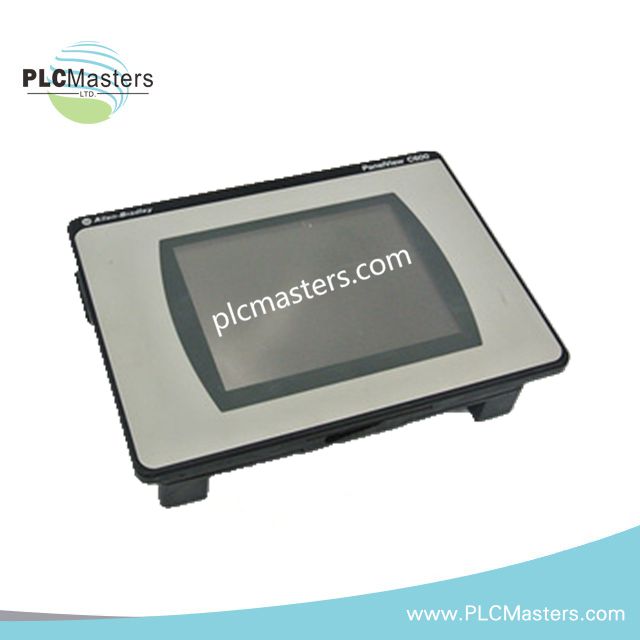

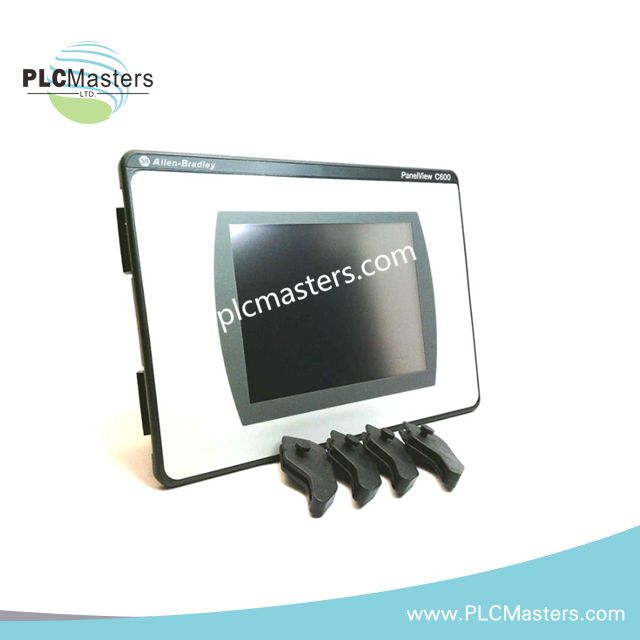

Allen-Bradley 2711C-T6C PanelView Component HMI Terminal
$123.00
$320.00
Description
Allen-Bradley 2711C-T6C PanelView Component HMI Terminal
The Allen-Bradley 2711C-T6C, also cataloged as the 2711C-T6C PanelView Component HMI Terminal, operates as a dedicated hardware component for operator interface display and touchscreen control execution within PanelView Component automation systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711C-T6C |
| Brand | Allen-Bradley |
| Origin | United States |
| Weight | 2 lbs |
| Power Consumption | 32 BTU per Hour heat dissipation |
| Product Type | Graphic Component HMI Terminal |
| Product Line | PanelView Component |
| Series | C600 |
| Display Type | Color transmissive CSTN passive matrix LCD |
| Display Size | 6 inch diagonal |
| Resolution | 320 x 240 pixels |
| Display Color | Color |
| Input Type | Analog touchscreen |
| Input Voltage | 18...30 VDC (24 VDC nominal) |
| Communication Interfaces | RS-232 (DH-485), RS-232 (DF1), RS-485, Ethernet, USB |
| Touchscreen Life Rating | 1 million actuations |
| Backlight Life | Minimum 50,000 hours, not replaceable |
EtherNet/IP and Serial Interface Configuration
The 2711C-T6C integrates multiple communication interfaces for connection with industrial controllers and field devices. The terminal provides RS-232 DH-485, RS-232 DF1, RS-485 multi-vendor communication capability, and Ethernet connectivity. The interface configuration supports data exchange with compatible PLC systems and operator control applications.
The PanelView Component platform supports web-based configuration using compatible browsers including Internet Explorer 7/8 and Firefox 3.0. The touchscreen input system provides direct operator command entry through analog touch actuation.
Frequently Asked Questions
Q: Does the 2711C-T6C support hot-swapping during operation?
A: The terminal is designed as a fixed operator interface device. Power removal and cable disconnection should be performed according to standard industrial maintenance procedures.
Q: What input voltage range is required for the 2711C-T6C?
A: The terminal accepts an input voltage range of 18...30 VDC, with 24 VDC nominal operation.
Q: Which communication ports are available on the terminal?
A: The 2711C-T6C provides RS-232 (DH-485), RS-232 (DF1), RS-485, Ethernet, and USB communication interfaces.
Field Installation Guidelines
Install the 2711C-T6C in a suitable panel cutout with proper mechanical retention and environmental protection. Maintain separation between communication wiring and high-voltage power conductors to reduce electrical interference.
Connect the 24 VDC supply using appropriate industrial wiring practices. The DC supply return and communication cable shields should follow the grounding requirements of the control cabinet design. Verify connector seating, cable routing, and network termination requirements before commissioning.
Avoid installing the terminal near high electromagnetic noise sources such as contactors, motor starters, or variable frequency drive power cables unless proper shielding and segregation methods are applied.
