Allen-Bradley 2711P-K10C4D8 PanelView Plus 6 1000 Operator Terminal
$123.00
$320.00
Description

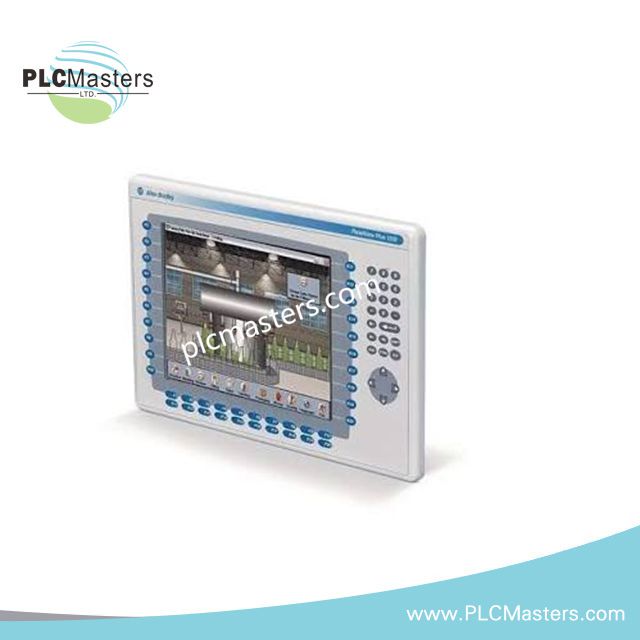

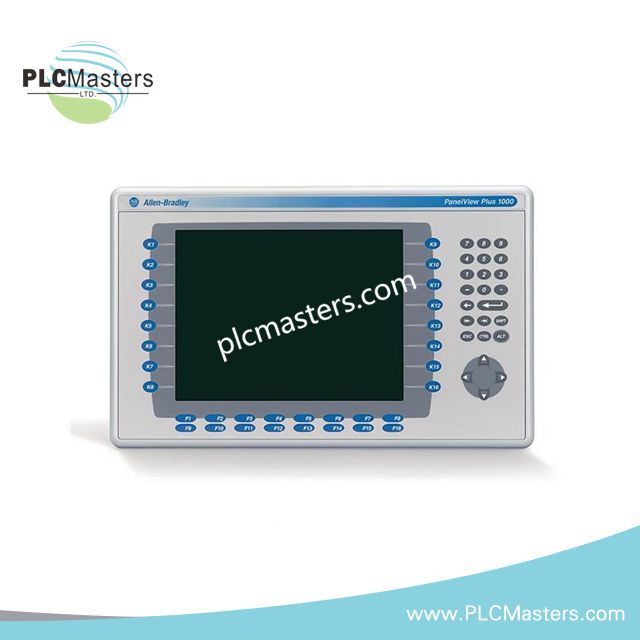

Allen-Bradley 2711P-K10C4D8 PanelView Plus 6 1000 Operator Terminal
Configured for operator input and HMI display functions in the PanelView Plus 6 platform, the Allen-Bradley 2711P-K10C4D8 (2711P-K10C4D8 PanelView Plus 6 1000 Operator Terminal) provides direct keypad-based operator interaction, color TFT graphics, and Ethernet, RS-232, and USB communications. The unit accepts an external 18-30 VDC supply.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711P-K10C4D8 |
| Brand | Allen-Bradley |
| Product Type | PanelView Plus 6 1000 Operator Terminal |
| Series | PanelView Plus 6, Series A and Series B |
| Weight | 5.91 lb |
| Display Size | 10.4 in. |
| Display Type | Color active-matrix TFT |
| Display Area | 211 x 158 mm |
| Resolution | 640 x 480 pixels |
| Color Depth | 18-bit color graphics |
| Backlight | CCFL, 50,000 hours minimum at 25 deg C; field replaceable |
| Operator Input | Keypad |
| Keypad | 32 function keys, navigation, numeric, and confirmation buttons |
| Internal Flash Memory | 512 MB |
| RAM | 512 MB |
| Input Voltage Range | 18-30 VDC |
| Input Power Specification | 18-32 VDC |
| Ethernet Port | Integrated |
| RS-232 Port | Integrated |
| USB Ports | 2 USB host ports |
| Communication Cable | 2711-NC14 |
| Operating System | Windows CE 6 |
| Lifecycle Status | End of life |
| Replacement Model | 2711P-B10C22D9P |
Ethernet, Firmware, and Interface Characteristics
The 2711P-K10C4D8 provides an integrated Ethernet interface together with an RS-232 interface and two USB host ports. The supplied data identifies Ethernet as the communication interface but does not specify the supported application-layer protocol or network configuration.
The terminal contains 512 MB of Flash memory and 512 MB of RAM. Firmware compatibility should be verified against the installed PanelView Plus 6 Series A or Series B hardware configuration before performing firmware maintenance. The supplied specifications do not define a specific firmware revision or upgrade procedure.
The 10.4 in. color active-matrix TFT provides 640 x 480 pixel resolution. Keypad operation is provided through 32 function keys together with navigation, numeric, and confirmation keys.
Frequently Asked Questions (FAQ)
Q: What supply voltage is specified for the 2711P-K10C4D8?
A: The supplied specifications identify an external DC input range of 18-30 VDC, with a separate input power entry stating 18-32 VDC. The applicable installation documentation should be checked when defining the final supply limit.
Q: Which communication interfaces are integrated?
A: The terminal provides one Ethernet interface, one RS-232 interface, and two USB host ports. The supplied data does not specify a protocol conversion function or deterministic network performance.
Q: Is the display backlight field replaceable?
A: Yes. The supplied specification identifies a CCFL backlight with a minimum rated life of 50,000 hours at 25 deg C and states that the backlight is field replaceable.
Field Installation Guidelines
- Install the terminal in a panel cutout that matches the mechanical dimensions specified by the applicable PanelView Plus 6 installation documentation. Dimensions are not provided in the supplied data.
- Verify the external DC supply voltage before energizing the terminal. The supplied input specification identifies 18-30 VDC.
- Route Ethernet, RS-232, USB, and DC power wiring separately from high-current motor, contactor, and switching-power wiring where practical.
- Use shielded communication cabling where required by the selected communication interface and installation environment.
- Terminate cable shields according to the applicable plant grounding scheme and equipment installation documentation.
- Maintain adequate clearance around the terminal for connector access, cable routing, and field replacement of the CCFL backlight.
- Do not perform firmware updates until the exact Series A or Series B hardware configuration and compatible firmware revision have been verified.
- Confirm the installed communication cable type before connection; the supplied data identifies 2711-NC14 as the communication cable.
- De-energize the terminal and isolate the DC supply before servicing wiring, connectors, or field-replaceable components.
