Allen-Bradley 2711P-RDB15C PanelView Plus 1500 Display Module

Allen-Bradley 2711P-RDB15C PanelView Plus 1500 Display Module

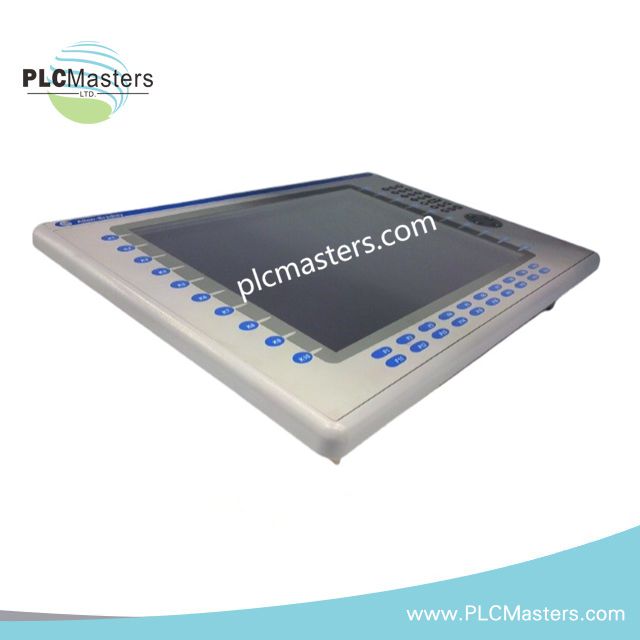

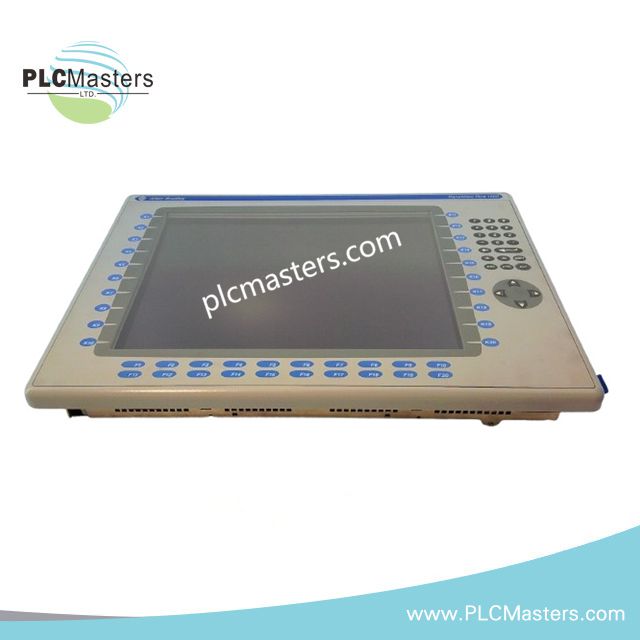

The Allen-Bradley 2711P-RDB15C, also cataloged as the 2711P-RDB15 display module, provides a 15-inch color TFT LCD interface for PanelView Plus 1500 terminals with dual input interfaces. The module provides 1024 x 768 pixel resolution, analog resistive touch input, and keypad compatibility.

Hardware Specifications

PanelView Plus Display and Network Integration

The 2711P-RDB15C is a terminal display component rather than a separately specified PLC communication module. Its supplied data defines the display and operator-input characteristics but does not specify an independent Ethernet, EtherNet/IP, or Profinet interface.

For systems using deterministic industrial networks, network communication is therefore attributable to the associated PanelView Plus terminal hardware and communication configuration rather than to the display characteristics listed for this module. The supplied data does not define network protocol timing, communication speed, or firmware compatibility for the 2711P-RDB15C itself.

The display section provides 1024 x 768 pixel resolution with 300 cd/m2 luminance. The analog resistive touchscreen is rated for 1 million presses with an operating force of 10 to 110 g.

Frequently Asked Questions (FAQ)

Q: What display technology is used by the 2711P-RDB15C?
A: It uses a 15-inch color TFT LCD with 1024 x 768 pixel resolution and 300 cd/m2 luminance.

Q: What type of touchscreen is specified for this module?
A: The supplied specifications identify an analog resistive touchscreen with an actuation rating of 1 million presses and an operating force of 10 to 110 g.

Q: Is the 2711P-RDB15C itself specified as an Ethernet or EtherNet/IP communication module?
A: No. The supplied data identifies it as a PanelView Plus 1500 display module and does not specify an independent network interface or communication performance.

Field Installation Guidelines

• Install the display module only with compatible PanelView Plus 1500 terminal hardware specified for the 15-inch dual-input-interface configuration.
• Verify the mechanical interface and mounting arrangement before installation; complete dimensional information is not provided in the supplied data.
• Protect the LCD and resistive touchscreen surface from impact, excessive mechanical loading, and contamination during installation.
• Route power and signal wiring in accordance with the installation requirements of the complete PanelView Plus terminal.
• Keep signal wiring separated from high-energy switching conductors where practical to reduce electrical interference.
• Connect cable shields and protective earth in accordance with the terminal installation documentation and the plant grounding scheme.
• Do not apply operating power until all module connections and mechanical retention points have been verified.
• Confirm the installed terminal configuration and applicable firmware compatibility from the equipment documentation before replacing or commissioning the display module.
