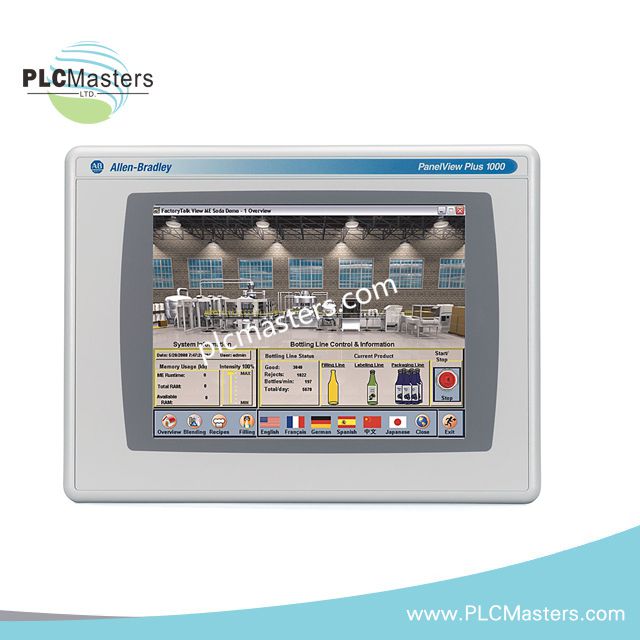

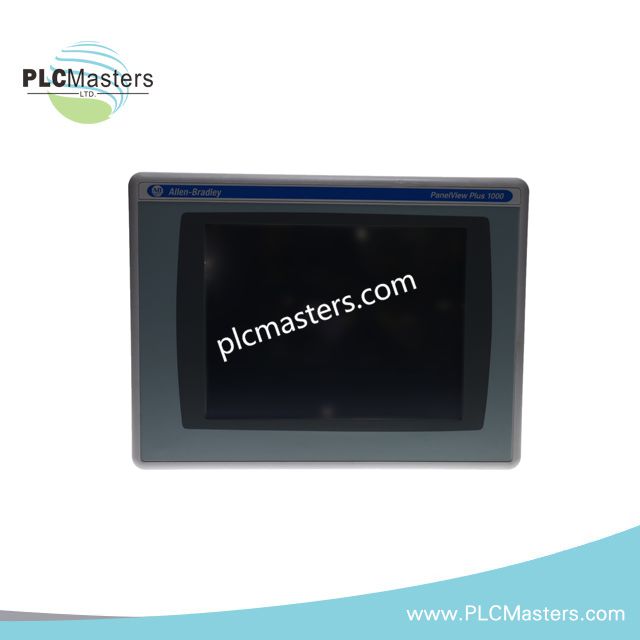

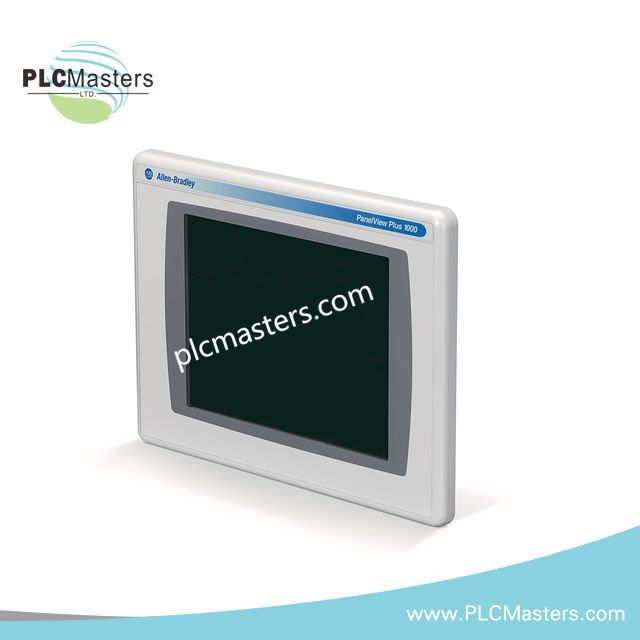

Allen-Bradley 2711P-RDT10C PanelView Plus 1000 HMI Display Module
$123.00
$320.00
Description
Overview
The 2711P-RDT10C is a PanelView Plus 1000 series display module developed by Allen-Bradley for industrial human-machine interface applications. It functions as a dedicated touchscreen visualization unit, designed to provide operators with clear process monitoring and control interaction through a color graphical interface.
This unit is supplied as a display-only module and is typically used as a replacement component within existing PanelView Plus 1000 HMI systems. It does not include a logic module, making it suitable for service replacement or system refurbishment where the processing unit remains intact.
Technical Specifications
| ParameterSpecification | |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 2711P-RDT10C |
| Product Series | PanelView Plus 1000 |
| Product Type | HMI Display Module |
| Display Size | 10.4 inches |
| Display Type | TFT Color LCD |
| Resolution | 640 × 480 pixels (VGA) |
| Input Method | Resistive touchscreen |
| Assembly Type | Display-only module |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Operating Shock | 15 g (11 ms) |
| Non-operating Shock | 30 g (11 ms) |
| Operating Altitude | Up to 2000 m |
| Weight | 3.99 lbs |
Functional Overview
The 2711P-RDT10C provides the graphical user interface for PanelView Plus 1000 operator stations. It is responsible for rendering system screens, alarms, process values, and operator controls in real time.
The touchscreen interface allows direct operator interaction with industrial control systems, supporting intuitive navigation through machine parameters and process data.
System Role & Compatibility
This display module is designed for use within PanelView Plus 1000 platforms and is typically paired with a compatible logic module.
It is commonly used in:
- PanelView Plus 1000 HMI stations
- Retrofit replacement of damaged displays
- OEM machine operator panels
- Industrial visualization systems
Key Features
- 10.4-inch color TFT display for clear process visualization
- Integrated resistive touchscreen for operator input
- VGA resolution optimized for industrial HMI screens
- Rugged design for continuous industrial operation
- Replacement-grade module for existing PanelView Plus systems
- Designed for serviceability in installed control systems
Application Areas
- Manufacturing machine interfaces
- Process visualization systems
- Packaging equipment control panels
- Material handling operator stations
- Industrial automation monitoring systems
FAQ
Is the 2711P-RDT10C a complete HMI system?
No. This is a display-only module and requires a compatible PanelView Plus logic module to operate.
Can it be used as a replacement part?
Yes. It is commonly used as a direct replacement for damaged or failed PanelView Plus 1000 displays.
Does it support touch input?
Yes. It features a built-in resistive touchscreen for operator interaction.
What is the display resolution?
The screen supports a 640 × 480 pixel VGA resolution optimized for industrial HMI applications.
