Allen-Bradley 2711P-RP2 PanelView Plus Standard Logic Module
$123.00
$320.00
Description

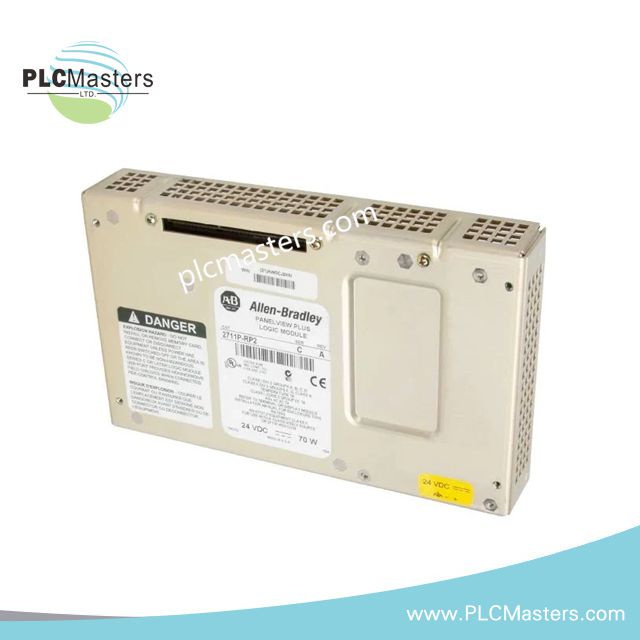

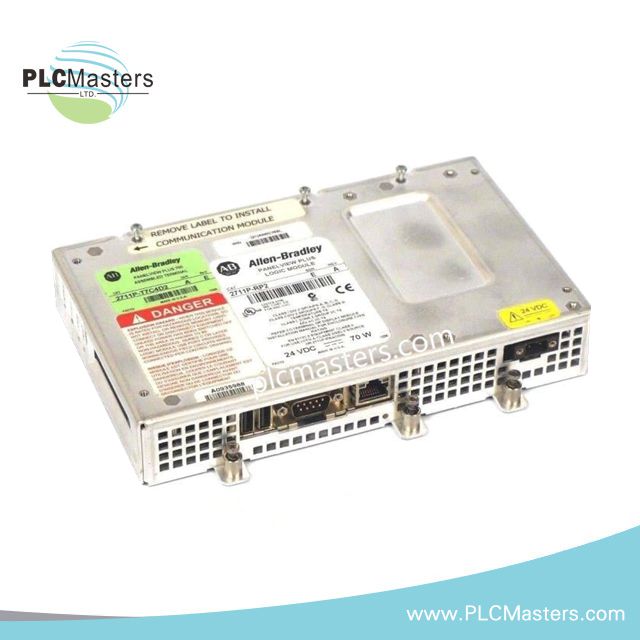

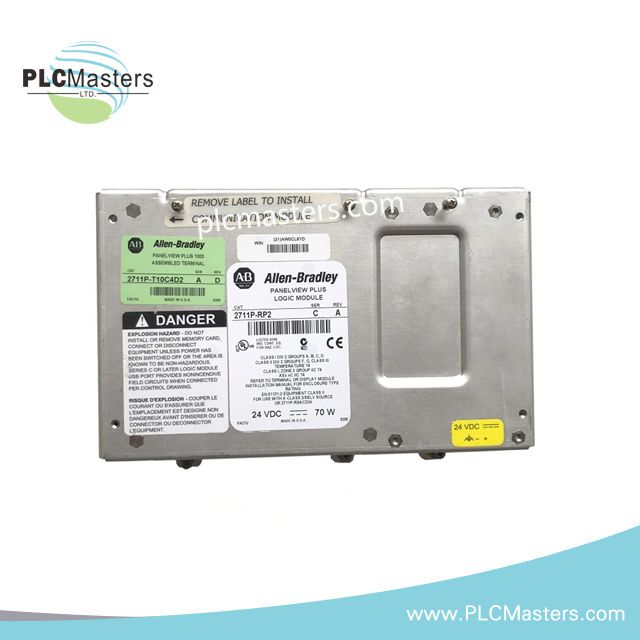

Allen-Bradley 2711P-RP2 PanelView Plus Standard Logic Module
Configured for memory processing and application execution in PanelView Plus 700 to 1500 terminals, the Allen-Bradley 2711P-RP2 (2711P-RP2 Standard Logic Module) provides 128 MB flash memory and 128 MB RAM with a 24 VDC input supply.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711P-RP2 |
| Brand | Allen-Bradley |
| Product Type | Standard Logic Module |
| Product Line | PanelView Plus |
| Compatible Terminals | PanelView Plus 700 to 1500 |
| Application Support | Single Application |
| ViewPoint Compatibility | Compatible |
| Flash Memory | 128 MB |
| RAM | 128 MB |
| Input Voltage Type | DC Input |
| Nominal Input Voltage | 24 VDC |
| Input Voltage Range | 18-30 VDC |
| Power Consumption | 70 W |
| Weight | 2.31 lb |
| Operating Temp | 0 to 55 deg C |
| Storage Temp | -25 to 70 deg C |
| Relative Humidity | 5 to 95%, non-condensing |
| Maximum Operating Altitude | 2000 m above sea level |
| Maximum Operating Shock | 15 G for 11 ms |
| Maximum Non-Operating Shock | 30 G for 11 ms |
| Memory Types | Flash and RAM |
PanelView Plus Memory and Power Characteristics
The 2711P-RP2 provides separate 128 MB flash and 128 MB RAM resources for PanelView Plus terminal operation. The module is specified for 24 VDC nominal input, with an 18-30 VDC input range and a stated 70 W power consumption.
The supplied compatibility data identifies PanelView Plus 700 through 1500 terminals. ViewPoint compatibility is also specified for the module.
Frequently Asked Questions (FAQ)
Q: What memory configuration is provided by the 2711P-RP2?
A: The module provides 128 MB of flash memory and 128 MB of RAM.
Q: What DC supply is specified for the 2711P-RP2?
A: The specified nominal input is 24 VDC, with an input range of 18-30 VDC.
Q: Which PanelView Plus terminals are identified as compatible?
A: The supplied technical data identifies PanelView Plus 700 through 1500 terminals.
Field Installation Guidelines
- Verify the terminal model against the specified PanelView Plus 700 to 1500 compatibility range before installation.
- Confirm that the available DC supply remains within the specified 18-30 VDC input range.
- Use wiring and overcurrent protection appropriate for the stated 70 W power consumption.
- De-energize the terminal before installing or removing the logic module unless the applicable Allen-Bradley installation documentation explicitly permits the operation under a defined hot-swap procedure.
- Route DC supply wiring separately from high-energy switching conductors and sources of significant electromagnetic interference.
- Maintain proper protective grounding and follow the PanelView Plus installation documentation for chassis and cable shield termination.
- Verify connector seating and mechanical retention before applying power.
- Operate the assembly within the specified 0 to 55 deg C temperature range and 5 to 95% non-condensing relative humidity range.
- Avoid installation locations exceeding the specified 2000 m operating altitude unless the applicable equipment documentation provides a derating requirement.
