Allen-Bradley 2711P-RP2DTP PanelView Plus Logic Module
$123.00
$320.00
Description

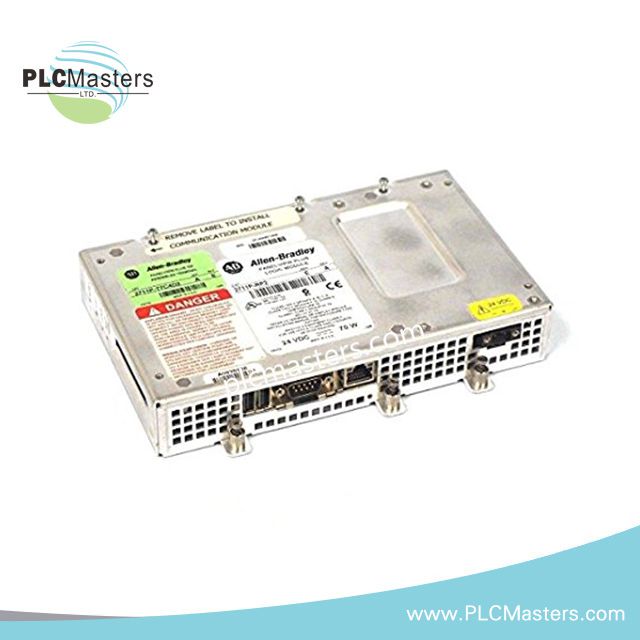

Allen-Bradley 2711P-RP2DTP PanelView Plus Logic Module
Configured for application logic execution and communication within PanelView Plus 700-1500 terminals, the Allen-Bradley 2711P-RP2DTP (2711P-RP2 Logic Module) provides the processing and memory hardware for a single PanelView Plus application. It operates from 24 VDC and provides Ethernet, RS-232, USB, and CompactFlash interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711P-RP2DTP |
| Brand | Allen-Bradley |
| Product Line | PanelView Plus |
| Product Type | Logic Module |
| Application | Single application |
| Compatible Terminals | PanelView Plus 700-1500 |
| Flash Memory | 128 MB |
| RAM Memory | 128 MB |
| Input Power | 24 VDC |
| Power Consumption | 70 W power dissipation |
| Communication Ports | Ethernet, RS-232 serial, 2 USB ports, CompactFlash card slot |
| Mounting Type | DIN rail |
| Weight | 5.00 lb |
| Operating Temp | Up to 55 deg C |
| Humidity | 5-95% non-condensing |
| Mounting Clearance | 2 in (51 mm) top; 4 in (102 mm) bottom |
| Installation Altitude | Up to 2000 m |
| GTIN | 10781180687263 |
Industrial Control and Memory Architecture
The 2711P-RP2DTP provides 128 MB of RAM and 128 MB of flash memory for PanelView Plus logic and application operation. The communication interface set includes Ethernet, RS-232, two USB ports, and a CompactFlash card interface. These interfaces support physical connection to the terminal and associated external communication or storage devices according to the installed PanelView Plus configuration.
The module is specified for DIN rail mounting and is intended for use with PanelView Plus 700-1500 terminals. The stated 70 W value is power dissipation and should not be interpreted as a measured 24 VDC input current value.
Frequently Asked Questions
Q: What supply voltage is specified for the 2711P-RP2DTP?
A: The module is specified for 24 VDC input power.
Q: What communication interfaces are provided?
A: The supplied data specifies Ethernet, RS-232 serial, two USB ports, and a CompactFlash card slot.
Q: Is the 2711P-RP2DTP specified for hot-swapping?
A: The supplied technical data does not specify a hot-swap capability. Power should therefore be removed before module replacement unless the applicable PanelView Plus installation documentation explicitly permits live replacement.
Field Installation Guidelines
- Install the module using the specified DIN rail mounting arrangement.
- Maintain at least 2 in (51 mm) clearance above and 4 in (102 mm) clearance below the module.
- Supply the module from a correctly rated 24 VDC source.
- Route communication wiring separately from high-voltage and high-current conductors where practical.
- Apply cable shielding and shield termination according to the applicable PanelView Plus installation requirements and the connected equipment interface specification.
- Verify Ethernet and RS-232 wiring before energizing the module.
- Do not exceed the stated operating temperature and humidity limits.
- Confirm adequate enclosure ventilation because the module has a stated 70 W power dissipation.
- Isolate power before removing or installing the logic module unless the applicable equipment documentation explicitly defines a permitted live-service procedure.
