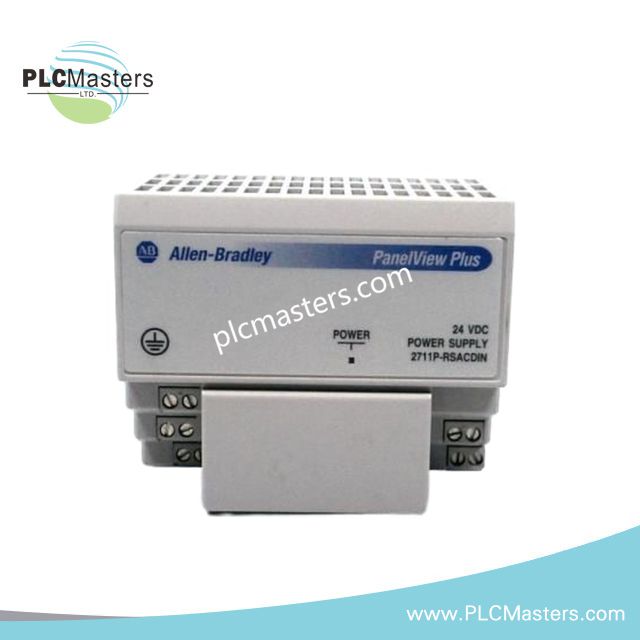

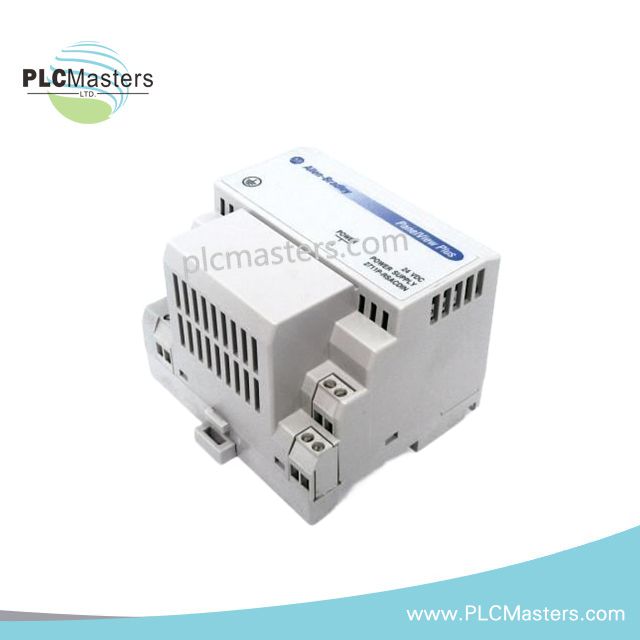

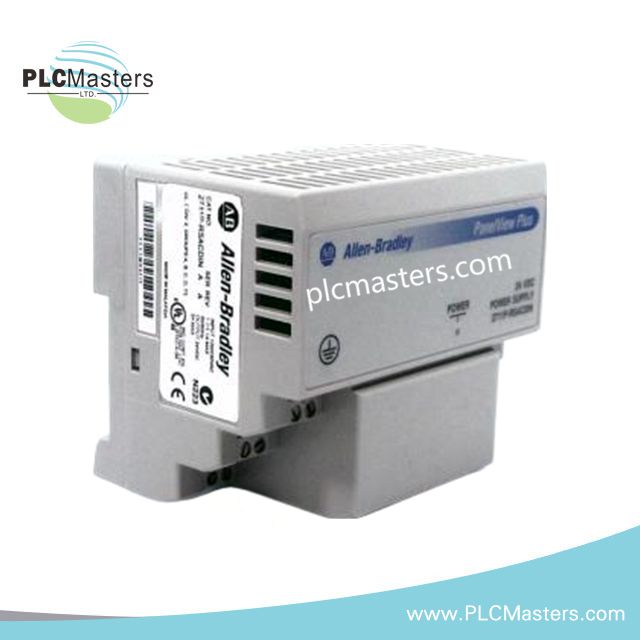

Allen-Bradley 2711P-RSACDIN PanelView Plus Power Supply Module
$123.00
$320.00
Description
Allen-Bradley 2711P-RSACDIN PanelView Plus Power Supply Module
Configured for AC-to-DC conversion in PanelView Plus terminals, the Allen-Bradley 2711P-RSACDIN (2711P-RSACDIN power supply module) provides 24 VDC output for compatible PanelView Plus hardware.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711P-RSACDIN |
| Brand | Allen-Bradley |
| Product Line | PanelView Plus 700 |
| Product Type | Power Supply Module |
| Power Supply Type | AC-to-DC Converter |
| Input Voltage | 85 to 265 VAC |
| Input Frequency | 47 to 63 Hz |
| Output Voltage | 24 VDC |
| Output Current | 3 A |
| Compatibility | PanelView Plus 700 to 1500 terminals |
| Mounting | DIN Rail |
| Weight | 0.42 lb |
| Safety Classification | Extra Low Voltage |
| UPC | 662073093572 |
AC Input and 24 VDC Output Characteristics
The 2711P-RSACDIN accepts an AC input range of 85 to 265 VAC at 47 to 63 Hz.
Its specified DC output is 24 VDC with a maximum stated output current of 3 A.
The module uses DIN-rail mounting and interfaces with PanelView Plus 700 to 1500 terminal configurations.
The supplied documentation identifies the unit as an extra-low-voltage power supply module.
Frequently Asked Questions (FAQ)
Q: What input voltage does the 2711P-RSACDIN support?
A: The supplied specifications state an input range of 85 to 265 VAC with 47 to 63 Hz operation.
Q: What DC output is provided by this module?
A: The module provides 24 VDC output with a specified output current of 3 A.
Q: Which PanelView terminals are identified as compatible?
A: The supplied data identifies compatibility with PanelView Plus 700 through PanelView Plus 1500 terminals.
Field Installation Guidelines
Install the module on a compatible DIN rail with sufficient clearance for terminal access and conductor routing.
Verify the incoming supply voltage and frequency before connecting the AC input terminals.
Use conductors sized according to the installation current, protection requirements, and applicable electrical standards.
Keep AC input wiring physically separated from low-level signal and communication wiring where practical.
Route the 24 VDC output conductors separately from high-voltage AC conductors to reduce electrical interference.
Inspect terminal polarity and wiring identification before energizing the connected PanelView equipment.
Connect protective earth or functional grounding according to the equipment installation documentation and applicable site standards.
Avoid routing power conductors alongside sensitive analog or communication cables over extended parallel distances.
De-energize the AC supply before installation, removal, or wiring modification.
Verify the 24 VDC output with appropriate test equipment before connecting sensitive downstream electronics.
