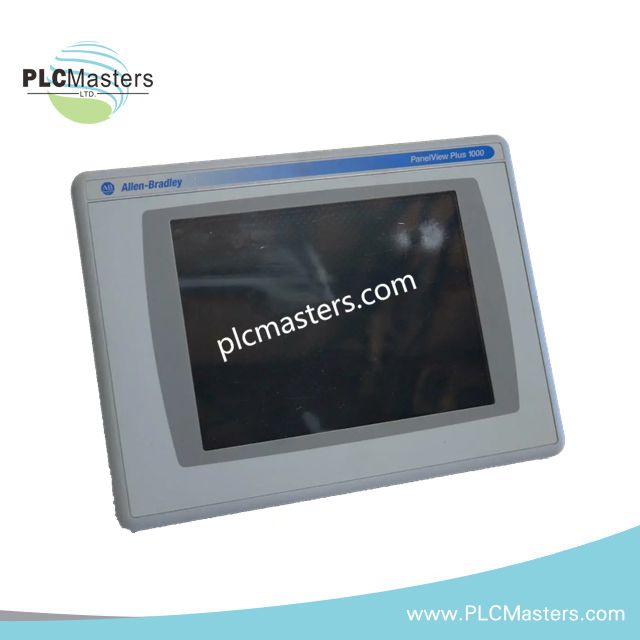

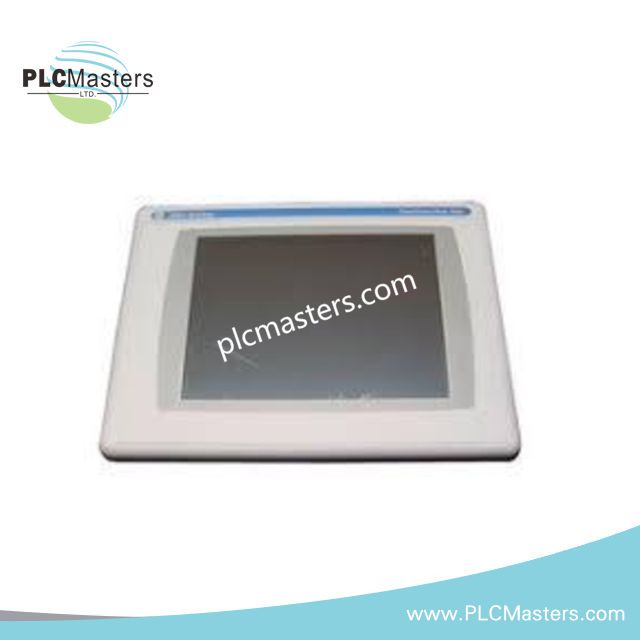

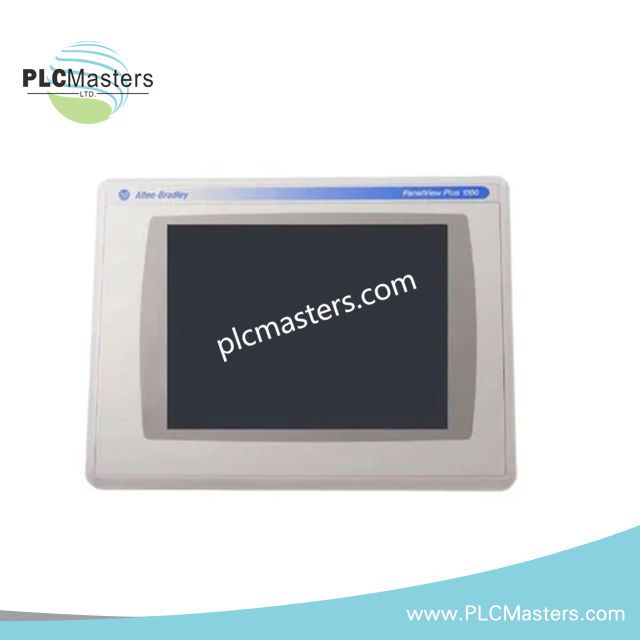

Allen-Bradley 2711P-T10C15D1 PanelView Plus Terminal
$123.00
$320.00
Description
Product Description
The 2711P-T10C15D1 from Allen-Bradley is a PanelView Plus 1000 operator interface terminal developed for industrial visualization and machine control applications. Manufactured by Rockwell Automation, this HMI terminal combines a 10.4-inch color touchscreen display with integrated communication capabilities for ControlNet-based automation systems.
The 2711P-T10C15D1 is designed to provide operators with real-time process monitoring, machine diagnostics, alarm handling, and production control functions through an intuitive graphical interface. The terminal supports touchscreen-only operation and features a replaceable display backlight to simplify long-term maintenance.
Built for demanding factory environments, the terminal includes multiple communication interfaces and supports integration with ControlLogix, PLC-5, and other Rockwell automation platforms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Family | PanelView Plus 1000 |
| Part Number | 2711P-T10C15D1 |
| Product Type | Operator Interface Terminal |
| Display Size | 10.4 Inches |
| Display Resolution | 640 × 480 Pixels |
| Display Type | TFT Color LCD |
| Input Method | Analog Resistive Touchscreen |
| Display Colors | Color Graphics Display |
| Communication Network | ControlNet |
| Additional Ports | Ethernet, RS-232, USB |
| Input Voltage | 18–32V DC |
| Nominal Power Supply | 24V DC |
| Internal Memory | 64 MB |
| Logic Module | 64 MB Logic Module Installed |
| Backlight Replacement | 2711P-RL10C2 |
| Compatible Communication Cable | 1747-KFC15A |
| Series Compatibility | Series A, B, C, D, and F |
| Enclosure Type | Industrial Open Style |
| Mounting Method | Panel Mount |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 70°C |
| Weight | 6.0 lb |
Key Features
-
10.4-inch high-resolution color touchscreen interface
-
Integrated ControlNet communication capability
-
Touchscreen-based machine and process operation
-
Supports graphical runtime applications and alarm monitoring
-
Replaceable backlight assembly for easier maintenance
-
Compatible with FactoryTalk View Machine Edition environments
-
Multi-interface connectivity including Ethernet, USB, and serial communication
-
Designed for industrial HMI visualization systems
Typical Applications
The 2711P-T10C15D1 terminal is commonly installed in:
-
Packaging machinery
-
Material handling systems
-
Process automation equipment
-
Manufacturing production lines
-
Water and wastewater facilities
-
Automotive assembly systems
-
OEM machine control panels
Compatibility Information
This PanelView Plus terminal is compatible with:
-
ControlLogix Controllers
-
CompactLogix PLC Systems
-
PLC-5 Processors
-
FactoryTalk View ME Software
-
ControlNet communication architectures
FAQ
What type of operator input does the 2711P-T10C15D1 use?
The terminal uses a touchscreen-only interface with an analog resistive touch panel.
Does the terminal support color graphics?
Yes. The 2711P-T10C15D1 features a full-color 10.4-inch TFT display with 640 × 480 resolution.
Can the display backlight be replaced?
Yes. The compatible replacement backlight part number is 2711P-RL10C2.
Which communication network is integrated into this terminal?
The terminal includes native ControlNet communication support for integration with Rockwell automation systems.
