Allen-Bradley 2711P-T10C4D6 PanelView Plus 1000 Terminal
$123.00
$320.00
Description

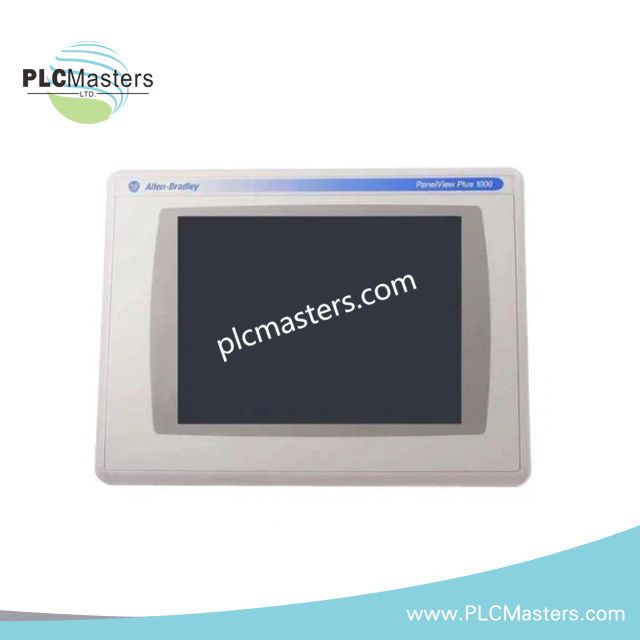

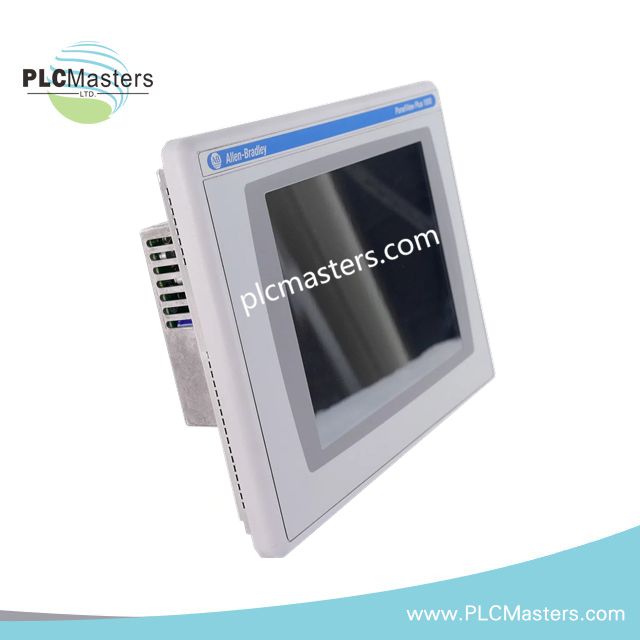

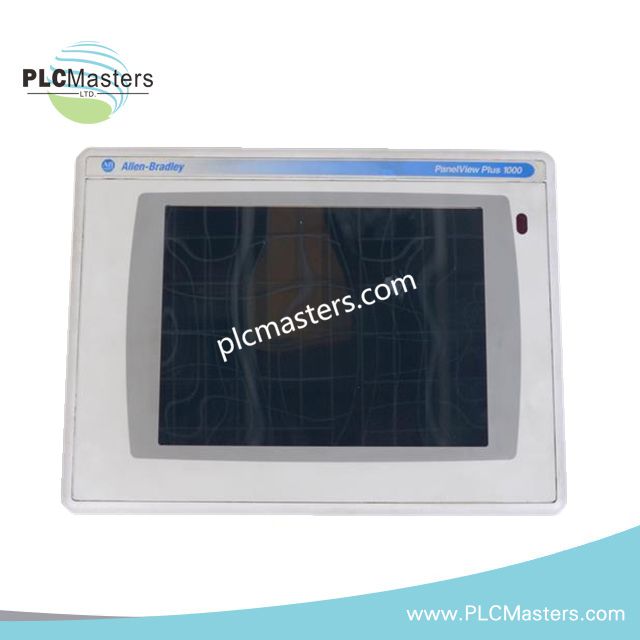

Allen-Bradley 2711P-T10C4D6 PanelView Plus 1000 Terminal
Configured for touchscreen HMI operation in the PanelView Plus 1000 platform, the Allen-Bradley 2711P-T10C4D6 (2711P-T10C4D6 PanelView Plus terminal) provides color graphical display and Ethernet or RS-232 communication.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 2711P-T10C4D6 |
| Brand | Allen-Bradley |
| Product Line | PanelView Plus 1000 |
| Category | PanelView terminals |
| Weight | 6.44 lb |
| Display Size | 10.4 in. |
| Display Type | Color graphics touchscreen |
| Input Type | Touchscreen |
| Input Power | 18-32 VDC |
| Communication Interfaces | Ethernet, RS-232 |
| USB Ports | 2 |
| Memory | 128 MB |
| Backlight | 2711P-RL10C2 |
| Communication Cable | 1761-NET-ENI |
| Series | Ser A, B, C, D, and F |
| UPC | 612598349265 |
PanelView Plus Communication and Hardware Architecture
The 2711P-T10C4D6 provides Ethernet and RS-232 interfaces for external communication connections. Two USB ports are also provided for compatible peripheral or service connections.
The terminal uses a 10.4 in. color touchscreen for operator input and graphical process visualization. Its specified DC input range is 18-32 VDC.
As an Allen-Bradley PanelView Plus 1000 terminal, communication and application compatibility depend on the installed terminal configuration and supported firmware environment. The supplied data does not specify firmware revision requirements or Ethernet protocol details.
The listed 2711P-RL10C2 backlight is associated with the display assembly. The 1761-NET-ENI is identified as the specified communication cable in the supplied data.
Frequently Asked Questions (FAQ)
Q: What DC supply voltage does the 2711P-T10C4D6 require?
A: The supplied specification identifies an input power range of 18-32 VDC.
Q: Which physical communication interfaces are available?
A: The terminal provides Ethernet, RS-232, and two USB ports according to the supplied specifications.
Q: Does the supplied data define hot-swap or firmware upgrade behavior?
A: No. The supplied information does not specify hot-swap limits, firmware compatibility, or upgrade procedures.
Field Installation Guidelines
- Verify the terminal model and installed hardware configuration before panel installation.
- Confirm that the available DC supply remains within the specified 18-32 VDC input range.
- Use wiring practices appropriate for low-voltage industrial DC control equipment.
- Route communication cables separately from high-current power conductors and sources of significant electrical noise.
- Maintain appropriate separation between Ethernet or RS-232 communication wiring and switching power circuits.
- Connect cable shields according to the grounding design of the installed control system.
- Avoid creating unintended ground loops when connecting shielded communication cables.
- Secure the terminal mechanically before connecting field wiring or communication cables.
- Inspect USB, Ethernet, and RS-232 connectors for correct orientation and mechanical engagement.
- Do not apply or remove wiring while energized unless the applicable installation procedure explicitly permits it.
- Verify polarity and DC supply wiring before energizing the terminal.
- Confirm the installed backlight assembly against the specified 2711P-RL10C2 component identification.
- Apply the applicable PanelView Plus installation and electrical clearance requirements for the actual enclosure.
