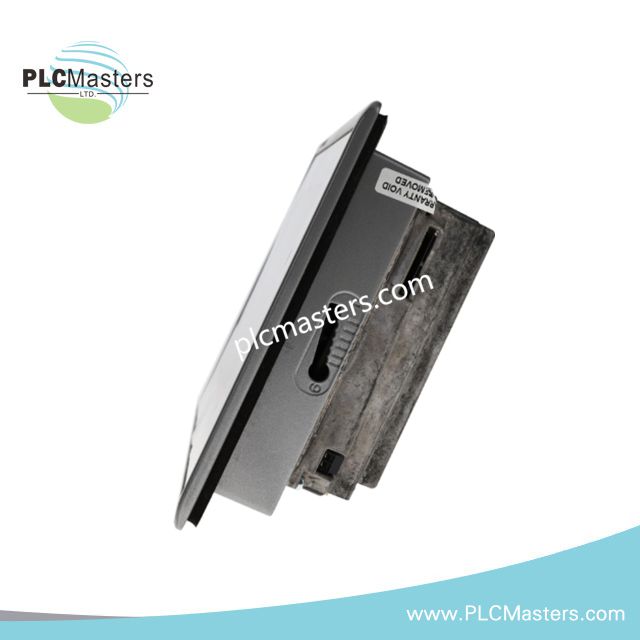

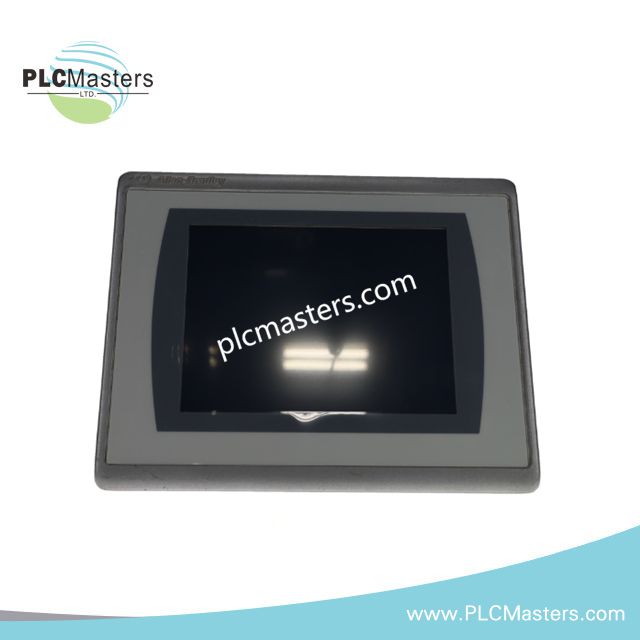

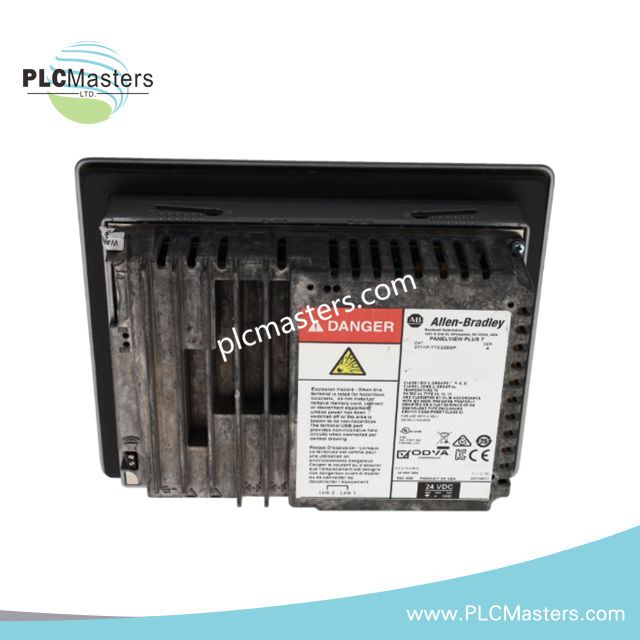

Allen-Bradley 2711P-T7C22D9P PanelView Plus 7 HMI
$123.00
$320.00
Description
Product Description
The 2711P-T7C22D9P is a compact human-machine interface terminal from Allen-Bradley’s PanelView Plus 7 Performance family. Designed for industrial visualization and machine-level control, this operator interface combines a high-resolution color touchscreen with integrated Ethernet networking and modern embedded operating capabilities.
Equipped with a 6.5-inch TFT display and VGA resolution, the unit provides clear graphical monitoring for production systems, process equipment, and OEM machinery. The touchscreen interface supports reliable operator interaction in demanding industrial environments and is engineered for long-term operational durability.
This model operates on 24 VDC power and includes embedded Ethernet switch technology with Device Level Ring (DLR) capability for resilient industrial communication architectures.
Key Features
• Integrated 6.5-inch TFT color touchscreen
• VGA 640 × 480 display resolution
• Supports 18-bit color graphics for enhanced visualization
• Embedded Ethernet switch with DLR functionality
• Conformal-coated electronics for improved environmental protection
• Windows 10 IoT Core operating platform
• Compact HMI solution for machine and process applications
• Designed for continuous industrial operation
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model Number | 2711P-T7C22D9P |
| Product Series | PanelView Plus 7 Performance |
| Product Type | Operator Interface Terminal |
| Input Method | Analog Resistive Touchscreen |
| Display Size | 6.5 Inches |
| Display Technology | TFT Color LCD |
| Resolution | 640 × 480 VGA |
| Color Depth | 18-Bit Graphics |
| Aspect Ratio | 4:3 |
| Active Display Area | 132 × 99 mm |
| Operating Voltage | 24 VDC |
| Network Capability | Embedded Ethernet Switch / DLR |
| Operating System | Windows 10 IoT Core |
| Conformal Coating | Yes |
| Touchscreen Life Expectancy | Approx. 1 Million Activations |
| Touch Activation Force | 100 g |
| Weight | 2.54 lbs |
Communication and Networking
The 2711P-T7C22D9P includes integrated Ethernet networking designed for modern Integrated Architecture systems. Device Level Ring (DLR) support enhances network redundancy and helps maintain communication continuity in automated production environments.
The terminal is commonly deployed with:
• ControlLogix controllers
• CompactLogix PLC systems
• PowerFlex drives
• Distributed I/O platforms
• FactoryTalk View Machine Edition applications
Typical Applications
This HMI terminal is suitable for industrial environments requiring compact operator visualization and machine interaction.
Common installations include:
• Packaging machinery
• Conveyor and material handling systems
• Water and wastewater facilities
• Process skids
• OEM machine panels
• Manufacturing workstations
FAQ
Does the 2711P-T7C22D9P support touchscreen operation only?
Yes. This model is configured with touchscreen input and does not include a keypad interface.
What software platform is typically used with this terminal?
The unit is generally programmed using FactoryTalk View Machine Edition software within Rockwell Automation environments.
Is the display suitable for detailed graphics?
Yes. The VGA TFT display with 18-bit color support provides clear visualization for alarms, trends, process values, and machine diagnostics.
