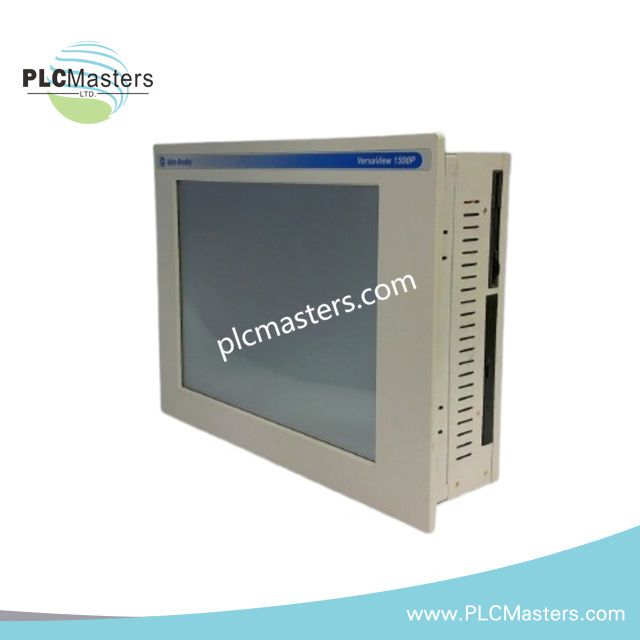

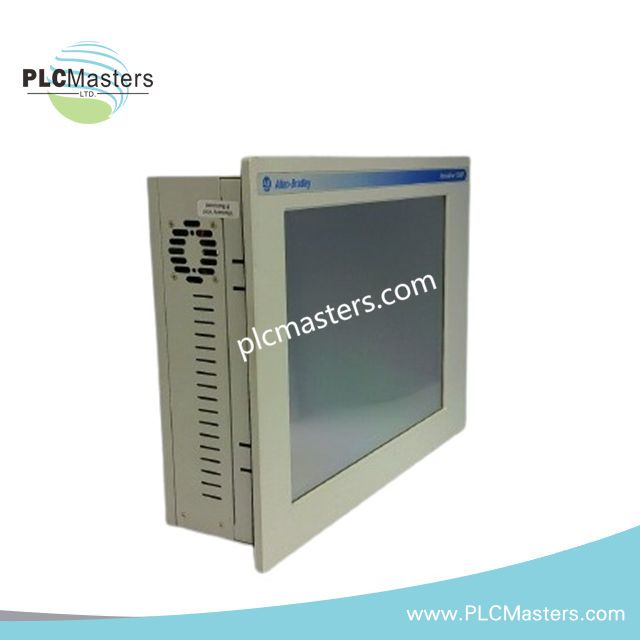

Allen Bradley 6181P-15TSXPH VersaView Plus 6181P Integrated Display Computer
$123.00
$320.00
Description
Allen Bradley 6181P-15TSXPH VersaView Plus 6181P Integrated Display Computer
Configured for operator visualization and panel-mounted HMI execution, the Allen Bradley 6181P-15TSXPH (6181P Integrated Display Computer) provides direct display, touchscreen, computing, and peripheral I/O functions within the VersaView Plus 6181P platform. The supplied source also contains a conflicting 6181F-15TSXPH reference; the detailed manufacturer data identifies 6181P-15TSXPH as the applicable part number.
Suffix Breakdown & Model Matrix
| Parameter | Specification |
|---|---|
| Model | 6181P-15TSXPH |
| Base Model | 6181P |
| Product Family | VersaView Plus 6181P |
| Product Type | Integrated Display Computer |
| Display Configuration | 15 in color TFT |
| Operator Input | Analog resistive touchscreen |
| Mounting Configuration | Panel mount |
| Bezel | Aluminum |
| Performance Class | Standard performance |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 6181P-15TSXPH |
| Brand | Allen Bradley |
| Weight | 24.00 lb |
| Power Consumption | 100 VA; source also lists 1.5 A at 100-240 VAC |
| Display Size | 15 in |
| Display Type | Active-matrix color TFT |
| Display Resolution | 1024 x 768 |
| Touchscreen Type | Analog resistive |
| Response Time | 15 ms typical |
| Processor | Intel Core Duo M423, 1 GHz |
| RAM | 2 GB |
| Storage | 32 GB SSD |
| Serial Ports | 1 serial COM port; another source lists 2 serial ports |
| USB Ports | 4 |
| Ethernet Ports | 2 |
| Parallel Port | 1 |
| Audio | 1 line-in / line-out; 1 microphone |
| Expansion | 1 PCI expansion slot |
| Input Voltage | 90-264 VAC; 12 VDC also listed in supplied data |
| Input Frequency | 47-63 Hz |
| Operating System | Windows XP |
| Mounting | Panel mount |
Industrial Computing and I/O Architecture
The 6181P integrates a TFT display, resistive touchscreen, processor, memory, storage, and peripheral interfaces in one panel-mounted computer.
The 1024 x 768 display resolution provides the specified native visualization format for operator interface applications.
The resistive touchscreen provides analog operator input directly through the front display assembly.

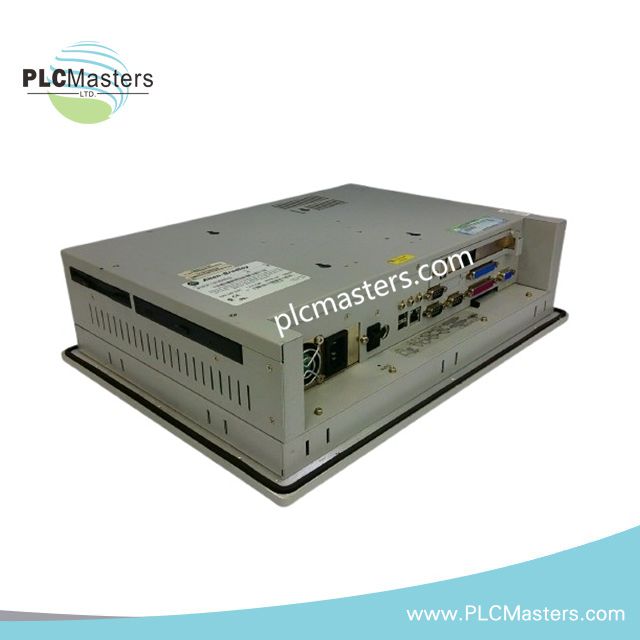

Peripheral connectivity includes USB, serial, Ethernet, audio, microphone, and PCI interfaces according to the supplied specifications.
The source data identifies both Intel Celeron M423 and Intel Core Duo M423, while the processor field specifies Core Duo M423 at 1 GHz.
Power data also contains inconsistent voltage and current entries; therefore, installation should follow the applicable nameplate and hardware documentation.
Frequently Asked Questions (FAQ)
Q: What display and touchscreen configuration does the 6181P-15TSXPH provide?
A: It provides a 15 in active-matrix color TFT display with 1024 x 768 resolution and an analog resistive touchscreen.
Q: Which physical interfaces are specified for the computer?
A: The supplied data specifies USB, serial, Ethernet, audio, microphone, and one PCI expansion interface.
Q: What input power information is provided?
A: The detailed specification lists 90-264 VAC at 47-63 Hz, while other source data also lists 12 VDC.
Field Installation Guidelines
Install the computer in a panel cutout that matches the mechanical requirements of the applicable VersaView documentation.
Secure the panel-mounted assembly evenly to prevent mechanical stress on the bezel and display enclosure.
Provide an equipment grounding connection according to the installation requirements for the host control cabinet.
Route AC power wiring separately from low-level communication and signal wiring where practical.
Keep Ethernet, serial, audio, and USB cabling away from high-current switching conductors and motor power cables.
Terminate cable shields according to the system grounding architecture and avoid unintended shield current paths.
Verify supply voltage, frequency, protective grounding, and connector polarity against the actual unit nameplate before energization.
Allow adequate enclosure clearance for connector access, cable bend radius, ventilation, and service operations.
Do not assume hot-swap capability for internal assemblies or expansion hardware unless explicitly supported by the applicable technical manual.
Because the supplied records contain conflicting processor, memory, communication, voltage, and weight entries, verify the installed unit against its nameplate before commissioning.
