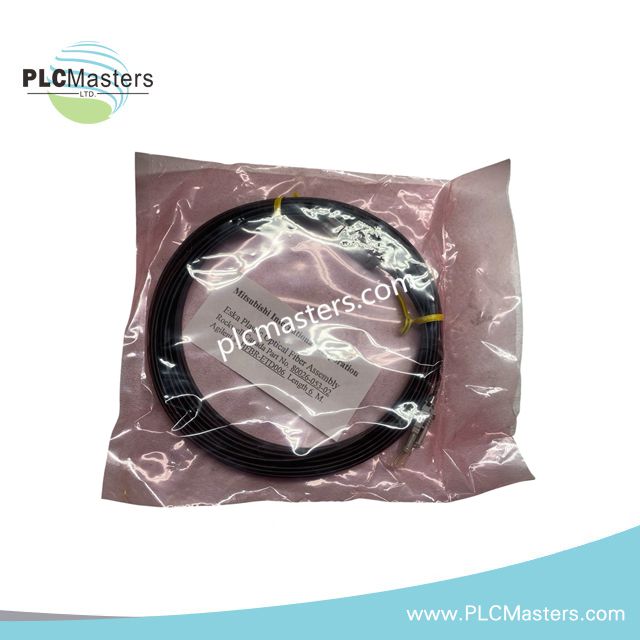

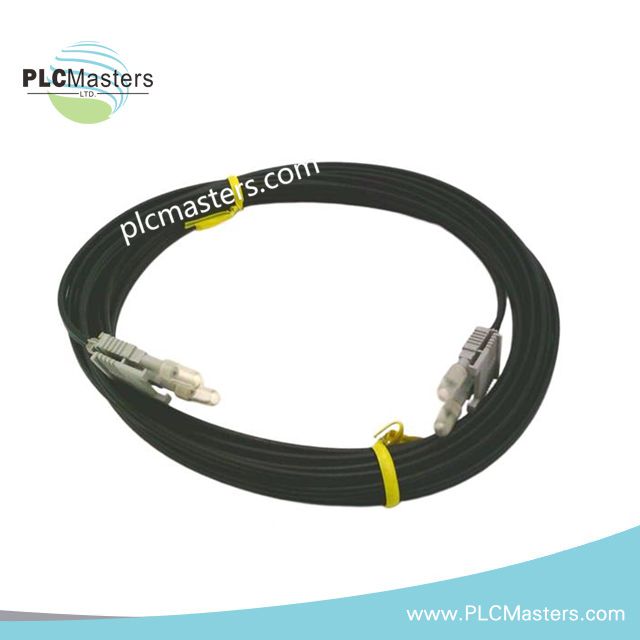

Allen-Bradley 80026-053-02-R Plastic Optical Fiber Cable Assembly
$123.00
$320.00
Description
Allen-Bradley 80026-053-02-R Plastic Optical Fiber Cable Assembly
The Allen-Bradley 80026-053-02-R, also cataloged as the 80026-053-02-R Plastic Optical Fiber Cable Assembly, operates as a duplex fiber communication component for optical signal transmission within Allen-Bradley industrial control networks.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 80026-053-02-R |
| Brand | Allen-Bradley / Rockwell Automation |
| Origin | USA |
| Weight | 0.40 lbs |
| Dimensions | 6 m cable assembly length |
| Operating Temp | -20 deg C to +70 deg C |
| Power Consumption | Passive cable assembly, no external power required |
| Product Type | Duplex Plastic Optical Fiber (POF) Cable Assembly |
| Fiber Material | PMMA Plastic Optical Fiber |
| Cable Configuration | Duplex two-strand fiber for bidirectional TX/RX communication |
| Cable Length | 6.0 m (19.7 ft) |
| Jacket Material | Industrial-grade PVC / Polyurethane |
| EMI/RFI Immunity | Optical transmission provides immunity against electromagnetic interference |
| Minimum Bend Radius | Approx. 35 mm |
EtherNet/IP and Fiber Communication Integration Features
The Allen-Bradley 80026-053-02-R provides optical signal isolation for industrial communication links requiring separation from electrical noise sources. The duplex POF structure supports independent transmit and receive channels for short-range control system connections.
The plastic optical fiber construction eliminates conductive paths between connected devices, reducing ground loop risks and electrical coupling between PLC racks, drive systems, and communication interfaces. Therefore, the cable assembly is suitable for installations near variable frequency drives, welding equipment, and high-voltage switching assemblies.
The -R suffix identifies the RoHS compliant version of the cable assembly. The latching POF connector design provides mechanical retention for industrial control cabinet installations and repeated service access.
Frequently Asked Questions
Q: Does the 80026-053-02-R cable assembly require external power or signal conditioning hardware?
A: No. The assembly is a passive optical cable component and does not require external power supply connections.
Q: Can this cable be installed in areas with high electromagnetic interference?
A: Yes. The optical fiber construction prevents electrical signal coupling from EMI and RFI sources affecting the communication path.
Q: Does the cable support bidirectional communication?
A: Yes. The duplex fiber structure contains separate optical paths for transmit and receive communication channels.
Field Installation Guidelines
- Verify connector compatibility with the target Allen-Bradley optical communication interface before installation.
- Maintain the specified minimum bend radius to prevent excessive optical attenuation and mechanical stress.
- Route the fiber cable separately from sharp edges, high-temperature surfaces, and mechanical movement points.
- Avoid placing optical cables in parallel with power conductors where mechanical damage risks exist.
- Secure the cable using non-compressive clamps to prevent deformation of the fiber jacket.
- Inspect connector ends before installation and keep optical interfaces free from dust or contamination.
- Maintain proper cabinet grounding practices for connected equipment even though the optical cable provides electrical isolation.
