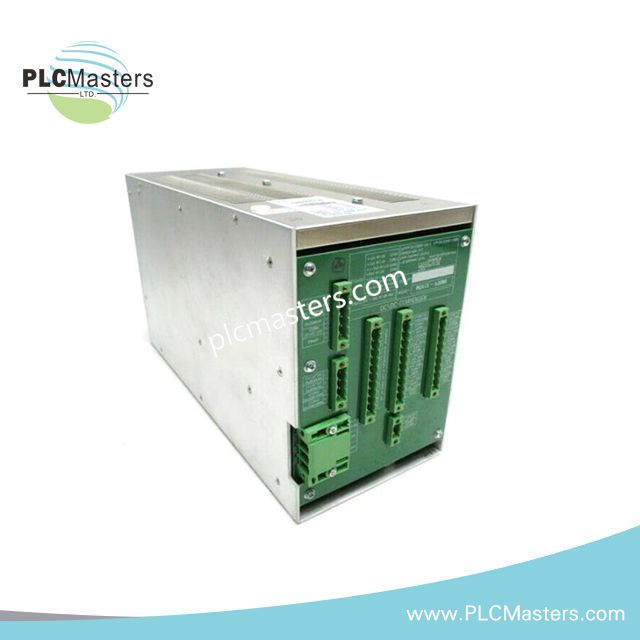

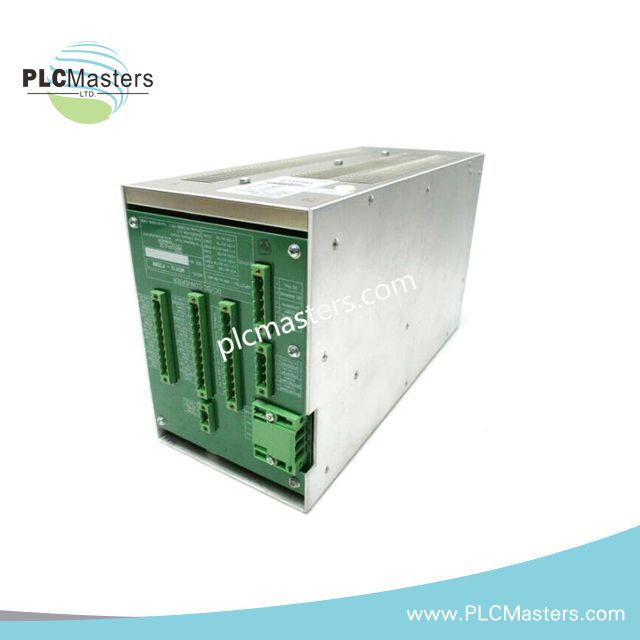

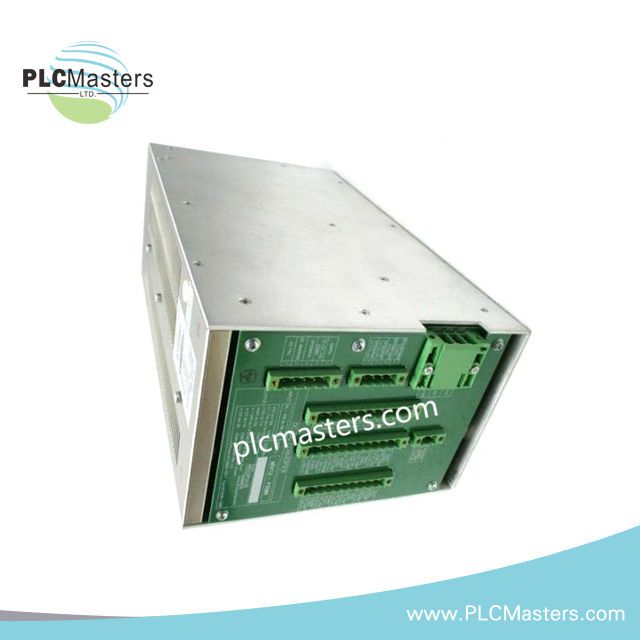

Allen Bradley 80026-172-23-R 1500W AC/DC Power Supply
$123.00
$320.00
Description
Overview
The 80026-172-23-R industrial power supply from Allen-Bradley is a high-capacity AC/DC conversion module engineered for industrial automation and process control systems requiring stable high-current DC power distribution. Commonly associated with the Pioneer-series PM3398B-6P-1-3P-E platform, this unit delivers regulated 56 VDC output for demanding PLC, DCS, and industrial motion applications.
Designed for continuous-duty operation, the module accepts three-phase AC input and provides up to 1500 W of output power. The conformal-coated construction improves reliability in environments exposed to humidity, airborne contaminants, and industrial dust.
The 80026-172-23-R integrates multiple protection functions and is suitable for installation in industrial cabinets, automation panels, and heavy-duty machine control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen Bradley |
| Product Series | Pioneer |
| Product Type | Industrial AC/DC Power Supply |
| Model Number | 80026-172-23-R |
| Associated Platform | PM3398B-6P-1-3P-E |
| Input Voltage | 100–240 VAC, 3-Phase |
| Alternate Input Range | 340–480 VAC |
| Input Frequency | 47–63 Hz |
| Output Voltage | 56 VDC |
| Output Current | 26.8 A |
| Rated Output Power | 1500 W |
| Connection Method | Screw Terminal |
| Cooling Design | Industrial Convection / Forced Air Dependent on System Integration |
| Protection Features | Over-Voltage, Over-Current, Short-Circuit Protection |
| Environmental Protection | Conformal Coating |
| Mounting Options | DIN Rail or Panel Mount |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 195 × 280 × 100 mm |
| Weight | 10 lbs |
Key Functional Features
-
High-output 1500 W industrial power conversion
-
Regulated 56 VDC output for automation systems
-
Three-phase AC input compatibility
-
Conformal-coated circuitry for harsh industrial conditions
-
Designed for continuous heavy-load operation
-
Integrated protection circuitry for power stability
-
Industrial screw-terminal wiring configuration
-
Suitable for PLC, DCS, and process automation infrastructures
Industrial Applications
The 80026-172-23-R power supply is commonly installed in:
-
PLC control panels
-
Distributed control systems (DCS)
-
Industrial robotics
-
Motion control systems
-
Process manufacturing equipment
-
Heavy-duty automation machinery
-
Power distribution assemblies
-
Industrial communication cabinets
Environmental and Installation Notes
The conformal-coated “-R” variant offers additional resistance against moisture, dust, and airborne contamination. Proper enclosure ventilation and grounding practices are recommended for high-load installations.
FAQ
What is the output capacity of the 80026-172-23-R?
The unit provides a regulated 56 VDC output with a maximum output current of 26.8 A and a total power rating of 1500 W.
Does this power supply support three-phase input power?
Yes. The module is designed for three-phase AC input operation and supports industrial power distribution systems.
What does the “-R” suffix indicate?
The “-R” designation identifies a conformal-coated version intended for use in harsher industrial environments with elevated moisture or contamination exposure.
