Allen-Bradley 800E-3X01 Bulletin 800E Contact Block
$123.00
$320.00
Description

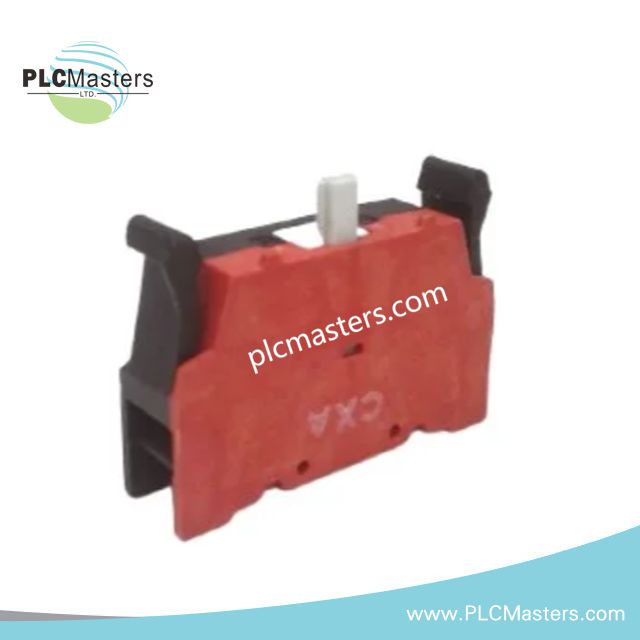

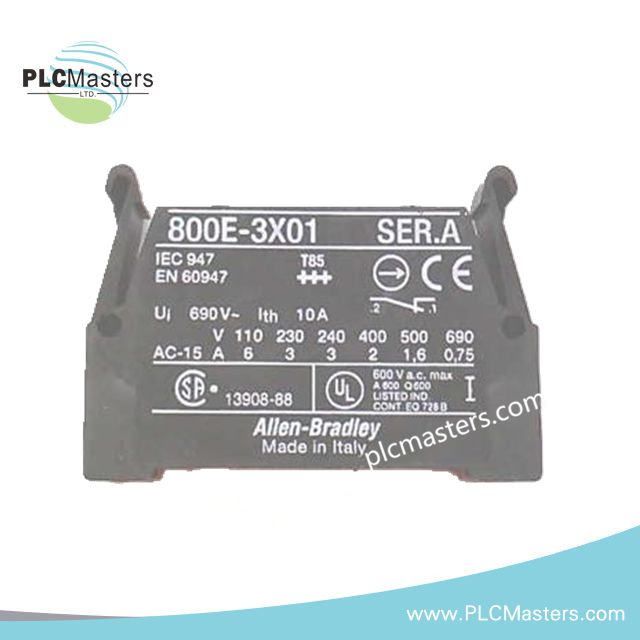

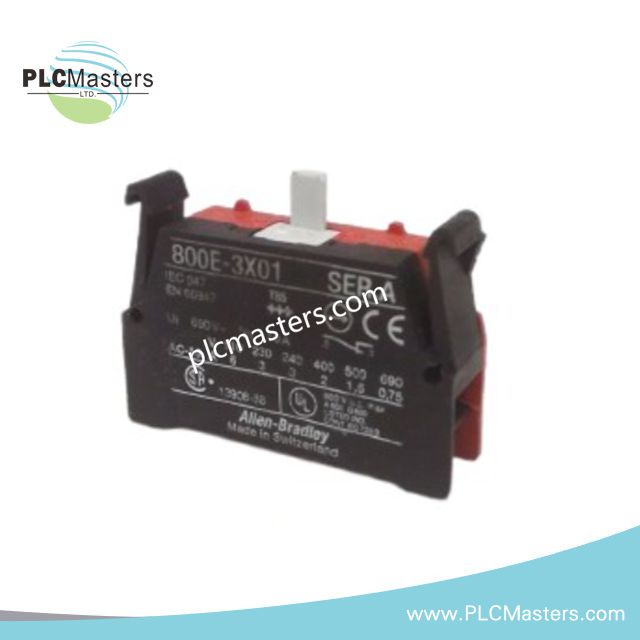

Allen-Bradley 800E-3X01 Bulletin 800E Contact Block
Configured for electrical contact state switching in Bulletin 800E 22.5 mm industrial control units, the Allen-Bradley 800E-3X01 (800E-3X01 Contact Block) provides direct physical switching execution through a 1 N.C. contact element.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 800E-3X01 |
| Brand | Allen-Bradley / Rockwell Automation |
| Product Type | Contact Block |
| Series | Bulletin 800E |
| Contact Configuration | 1 N.C. (Normally Closed) |
| Contact Type | Normally Closed contact element |
| Thermal Current Rating | 10 A |
| Maximum Voltage Rating | 600 VAC |
| Rated Insulation Voltage | 690 V |
| Mounting Style | Latch Mount / Base Mount |
| Mounting Size | 22.5 mm |
| Termination Type | Screw Terminals |
| Weight | 0.4 lbs |
| Operating Temp | -25 deg C to +70 deg C |
| Power Consumption | Not applicable for passive contact block |
| Electrical Function | Opens control circuit when actuator is pressed |
| Certifications | UL, CSA, CE Marked, RoHS |
Bulletin 800E Contact Switching Characteristics
The Allen-Bradley 800E-3X01 contact block provides a mechanical interface between a Bulletin 800E operator actuator and an industrial control circuit. The normally closed contact remains closed during standard actuator rest position and changes state through physical operator movement.
The module uses screw terminal connections for field wiring integration. Additionally, the 22.5 mm mounting format supports installation with compatible Bulletin 800E pushbutton and selector switch assemblies.
The contact element supports a thermal current rating of 10 A and maximum voltage rating of 600 VAC. Therefore, application design must consider the connected control circuit voltage, current load, and switching frequency.
Frequently Asked Questions
Q: What contact configuration is provided by the Allen-Bradley 800E-3X01?
A: The 800E-3X01 provides one normally closed (1 N.C.) contact element for control circuit switching.
Q: Can the 800E-3X01 be installed directly on any pushbutton assembly?
A: The contact block is designed for Bulletin 800E 22.5 mm modular operators and requires compatible mounting components.
Q: What wiring method is used for the 800E-3X01?
A: The unit uses screw terminals for electrical conductor termination and field connection.
Field Installation Guidelines
- Verify actuator and contact block compatibility before mechanical assembly.
- Install the contact block using the specified latch mount or base mount method.
- Route control wiring separately from high-voltage power conductors to reduce electrical interference.
- Maintain proper conductor stripping length and terminal tightening practices during wiring.
- Connect protective grounding according to the control panel installation standard when applicable.
- Inspect terminal connections after installation to prevent loose contact conditions.
- Confirm normally closed contact operation through electrical continuity testing before system commissioning.
