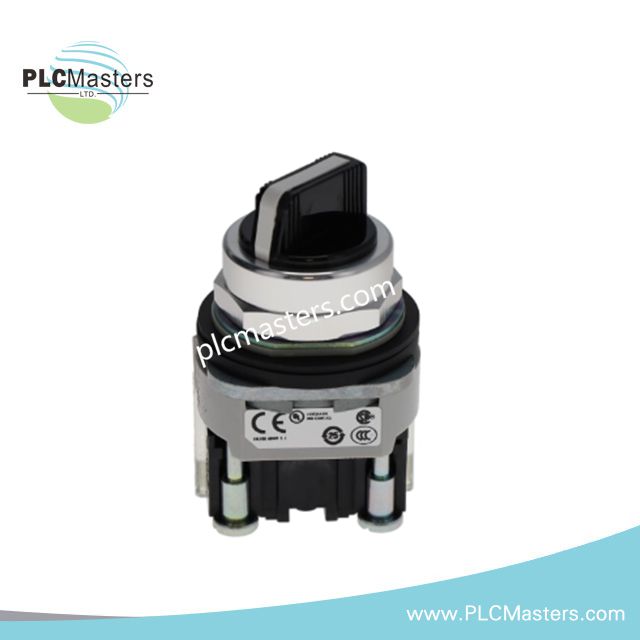

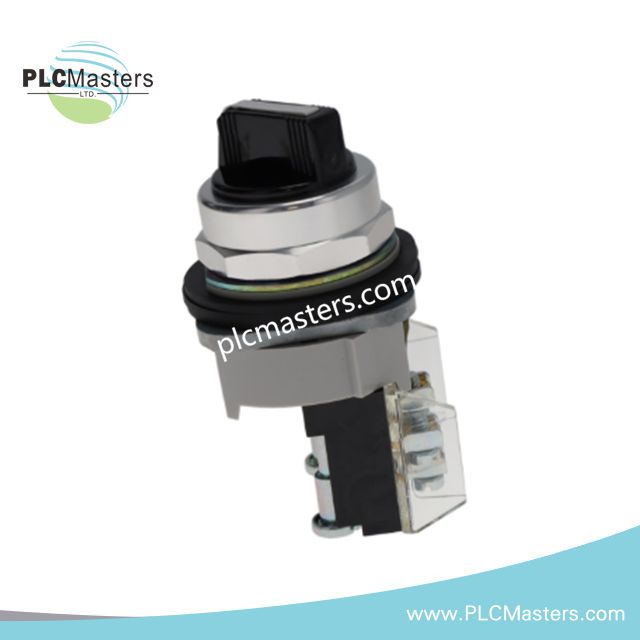

Allen-Bradley 800T-J2A Bulletin 800T Selector Switch Operator
$123.00
$320.00
Description
Allen-Bradley 800T-J2A Bulletin 800T Selector Switch Operator
Configured for maintained selector switching in industrial control panel interfaces, the Allen-Bradley 800T-J2A (800T-J2A selector switch operator) provides direct mechanical position selection for Bulletin 800T pilot device assemblies.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 800T-J2A |
| Brand | Allen-Bradley |
| Origin | United States |
| Weight | 0.35 lbs |
| Dimensions | 30.5 mm mounting hole size |
| Operating Temp | -40 deg C to 55 deg C |
| Product Type | Non-illuminated selector switch operator |
| Product Line | Bulletin 800T heavy duty pilot devices |
| Operator Type | Standard knob |
| Operation Mode | Maintained selector action |
| Positions | 2-position maintained operation |
| Throw Angle | 60 degree throw |
| Knob Color | Black knob with white insert line |
| Housing Material | Die-cast zinc housing with chrome-plated bezel |
| Enclosure Rating | NEMA 4, NEMA 13, IP66 |
| Contact Blocks | Operator only; compatible with 800T-XA and 800T-XD contact blocks |
| Contact Configuration | Standard 1 NO and 1 NC configuration with applicable contact block |
| Vibration Resistance | 10-2000 Hz at 10G |
| Shock Resistance | 100G shock resistance |
| Certifications | UL Listed, CSA Certified, CE Marked, CCC |
Industrial Control Panel Mechanical Interface Characteristics
The Allen-Bradley 800T-J2A uses a heavy-duty selector mechanism designed for Bulletin 800T operator stations. The die-cast zinc construction provides mechanical support for panel-mounted switching assemblies requiring maintained position control.
The 30.5 mm mounting interface matches standard industrial pilot device panel cutouts. The operator mechanism maintains the selected position until manually rotated to another defined state.
The Bulletin 800T platform supports modular contact block installation, allowing electrical contact configurations to be selected separately according to control circuit requirements. The operator itself does not provide direct electrical switching without an attached contact block assembly.
The maintained selector mechanism provides fixed-state indication through the knob position. Therefore, panel operators can identify command status through physical actuator alignment without illumination components.
Frequently Asked Questions
Q: Does the 800T-J2A selector operator include electrical contact blocks?
A: No. The 800T-J2A is an operator assembly only. Compatible 800T-XA or 800T-XD contact blocks must be installed separately.
Q: Can the 800T-J2A be used in illuminated selector switch applications?
A: No. The 800T-J2A is a non-illuminated selector operator with a standard knob configuration.
Q: What environmental protection ratings apply to the installed operator assembly?
A: The operator supports NEMA 4, NEMA 13, and IP66 enclosure ratings when installed according to applicable panel assembly requirements.
Field Installation Guidelines
- Verify the panel cutout dimensions match the 30.5 mm mounting requirement before installation.
- Install the operator using the specified panel mounting hardware and confirm mechanical retention.
- Mount compatible contact blocks according to the required control circuit configuration.
- Keep selector wiring separated from high-current power conductors to reduce electrical interference.
- Terminate cable shields according to the control system grounding practice when shielded signal wiring is used.
- Inspect actuator rotation and maintained position movement before energizing connected control circuits.
- Confirm enclosure sealing conditions after installation to maintain the specified environmental protection level.
