Allen-Bradley 800T-XD2P 800T Series Dual Pushbutton Operator Assembly
$123.00
$320.00
Description

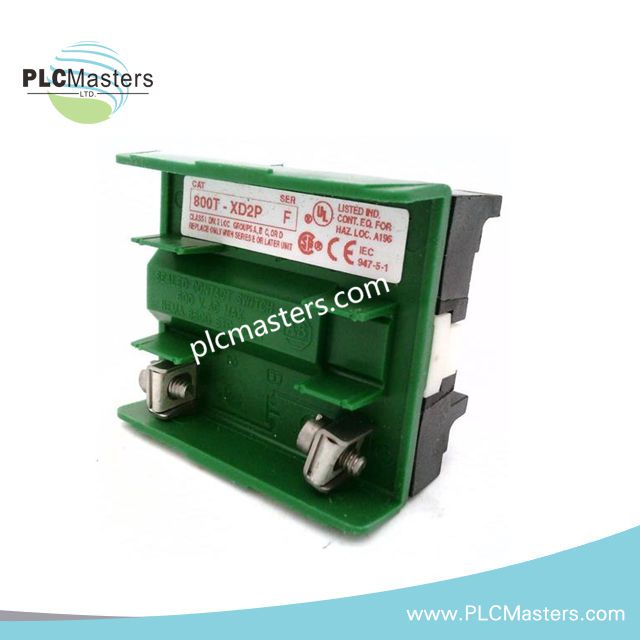

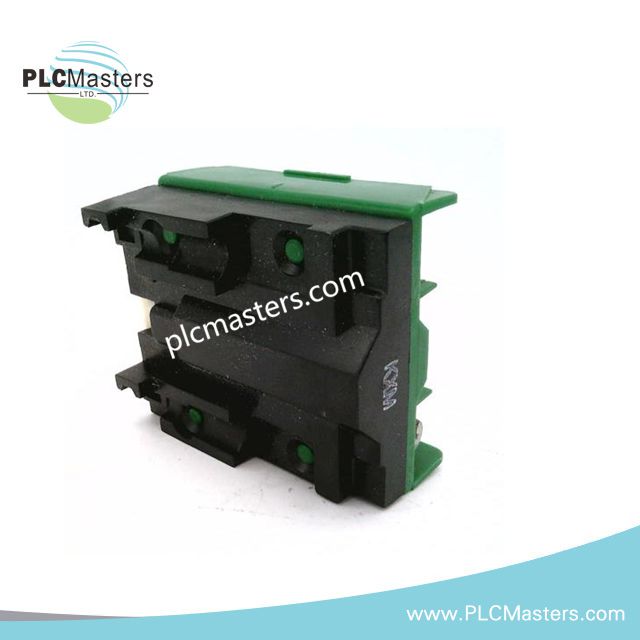

Allen-Bradley 800T-XD2P 800T Series Dual Pushbutton Operator Assembly
The Allen-Bradley 800T-XD2P, also cataloged as the 800T-XD2P Dual Pushbutton Operator Assembly, operates as a dedicated hardware component for START/STOP control signal execution within 30.5 mm industrial control station systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 800T-XD2P |
| Brand | Allen-Bradley / Rockwell Automation |
| Product Series | 800T Heavy Duty Industrial Control Units |
| Component Type | Dual Pushbutton Operator Assembly |
| Mounting Hole Size | 30.5 mm |
| Operator Type | Dual pushbutton operator |
| Action Type | Momentary |
| Operator Marking | Green START flush button / Red STOP extended button |
| Illumination | Non-illuminated |
| Contact Block Configuration | Standard contact blocks, typically 1 NO - 1 NC |
| Contact Block Type | Normally closed contact included |
| Housing Material | Die-cast zinc alloy bezel with chrome plating |
| Environmental Rating | NEMA Type 4/13, IP65/IP66 |
| Operating Temp | -40 deg C to +55 deg C |
| Weight | 0.10 lbs |
| Mechanical Life | 10,000,000 operations contact block |
| Electrical Interface | Mechanical contact actuation for control circuits |
EtherNet/IP and Industrial Control Interface Characteristics
The 800T-XD2P belongs to the Allen-Bradley 800T heavy-duty operator platform, providing direct mechanical actuation for industrial control circuits. The assembly interfaces with contact blocks to generate discrete electrical states through operator movement.
The dual actuator configuration combines START and STOP functions within a single 30.5 mm mounting position. Therefore, panel designers can integrate multiple control commands while maintaining standard enclosure layouts.
The contact arrangement supports integration with Allen-Bradley control systems requiring discrete input signals through conventional industrial wiring. The operator assembly does not contain firmware, network communication functions, or internal power electronics.
Frequently Asked Questions
Q: Does the 800T-XD2P require an external power supply?
A: No. The 800T-XD2P is a mechanical operator assembly and requires no external power supply. Electrical switching is performed through installed contact blocks.
Q: What type of contact configuration is provided with this operator?
A: The supplied configuration includes standard contact blocks, typically arranged as 1 normally open and 1 normally closed contact.
Q: Can the 800T-XD2P be installed in harsh industrial environments?
A: Yes. The operator assembly provides sealed construction with NEMA Type 4/13 and IP65/IP66 environmental ratings when installed according to enclosure requirements.
Field Installation Guidelines
- Verify the panel cutout matches the required 30.5 mm mounting specification before mechanical installation.
- Install the operator assembly using proper fastening torque to maintain sealing performance.
- Route control wiring separately from high-voltage power conductors to reduce electrical interference.
- Connect protective grounding according to the enclosure and control panel grounding design.
- Maintain cable bend radius requirements and prevent mechanical stress on contact block terminals.
- Confirm START and STOP contact states using continuity testing before system commissioning.
- Inspect sealing surfaces and operator movement after installation to ensure correct mechanical operation.
