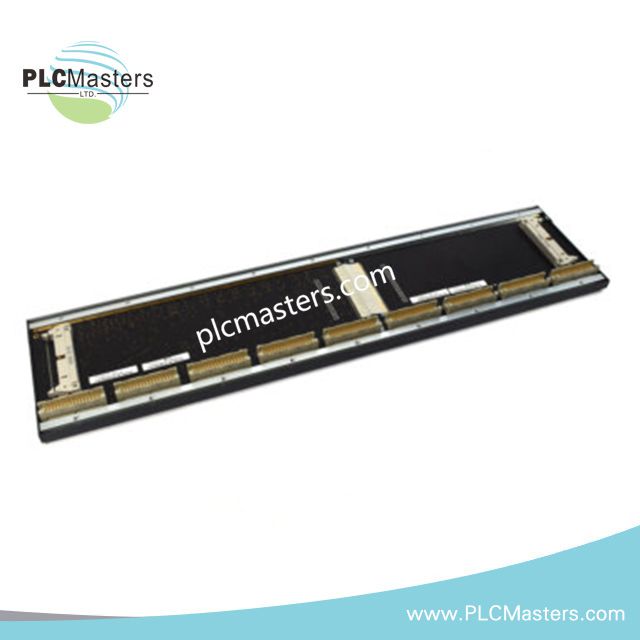

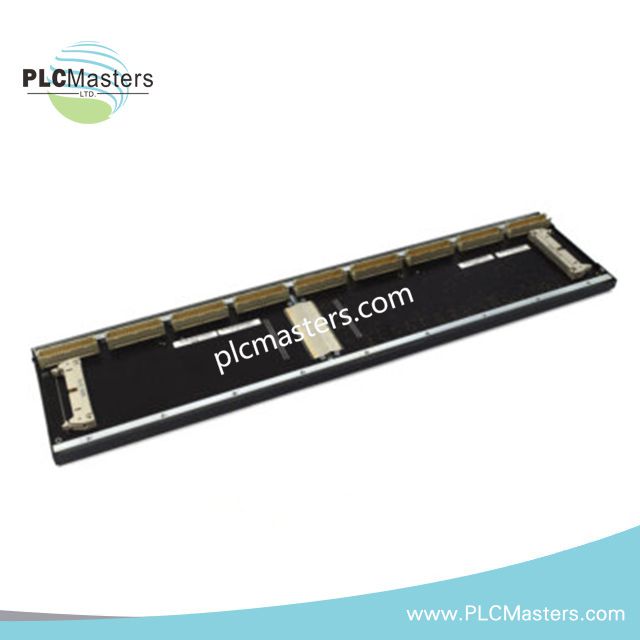

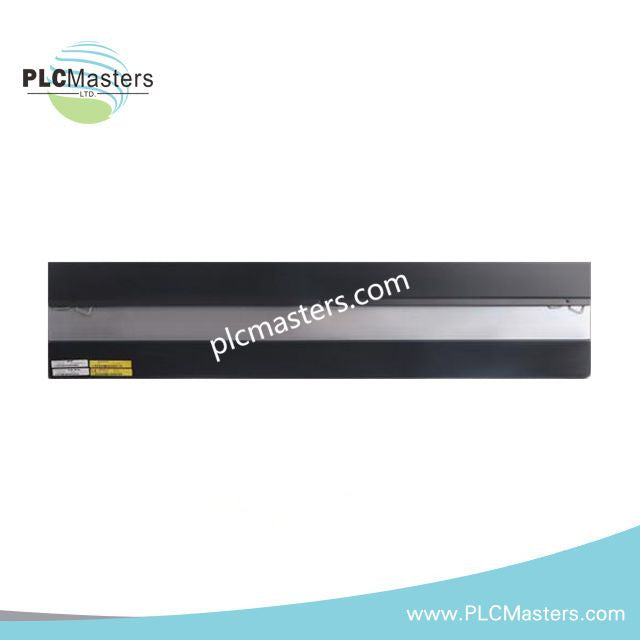

Bachmann BS210 Backplane Module
$134.00
$497.00
Description
Overview
The BS210 is a 10-slot backplane module by Bachmann electronic GmbH. It supports M1 automation system modules, including CPUs, power supplies, and I/O units. Its robust design ensures reliable mechanical and electrical connections. The BS210 suits medium to large-scale automation setups requiring high modularity and seamless system integration.
Technical Specifications
-
Bus System: M1 system bus
-
Module Slots: 10 slots, supporting CPUs, power, and I/O modules
-
Power Distribution: Supplies power and communication signals to all modules
-
Connector Type: Integrated backplane connectors for easy module installation
-
Width: 550 mm (55 mm × 10 slots)
-
Height: 119 mm
-
Depth: 23 mm (including connector)
-
Mounting: Snap-on DIN rail (EN 60715) or panel mount
-
Housing: Industrial-grade, vibration-resistant design
-
Operating Temperature: −25°C to +60°C
-
Storage Temperature: −40°C to +85°C
-
Humidity: 5% to 95% non-condensing
-
Pollution Degree: 2 (IEC 60664-1)
-
Mechanical Features: Stable construction, compact design, vibration-proof module fixing, extendable connection
