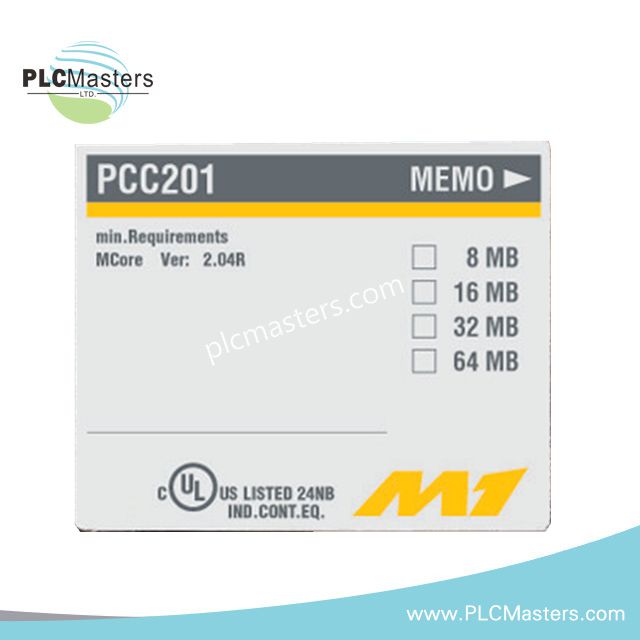

Bachmann PCC201/32MB CompactFlash Memory Card

Overview

The PCC201/32MB is a non-volatile CompactFlash memory card for Bachmann M1 automation systems. It provides 32 MB storage for user programs, configuration files, log data, and firmware updates. The card fits directly into the PCC slot of compatible CPU modules such as MX213, MC210, or MC205. It ensures secure data retention even during power-off conditions and supports diagnostics, backup, and firmware upgrades. Its industrial-grade design withstands vibration, shock, and wide temperature ranges.

Technical Specifications

• Memory Type: CompactFlash (CF) card

• Capacity: 32 MB

• Functionality:

• Stores user applications and system configurations

• Retains data during power-off conditions

• Supports firmware upgrades and runtime logging

• Enables diagnostics and backup

• Interface & Compatibility:

• Interface: PCC slot (dedicated CompactFlash interface)

• Compatible Modules: MX213, MC210, MC205, and other M1 CPUs with PCC slots

• Data Access: Via Bachmann engineering tools or runtime environment

• Mechanical Design:

• Form Factor: CompactFlash Type I

• Mounting: Direct insertion into CPU module

• Durability: Industrial-grade design for vibration and temperature resilience

• Electrical Characteristics:

• Access Width: 16-bit

• Operating Voltage: 5 V

• Programming Voltage: 12 Vss

• Write Protection: Software-controlled

• Environmental Conditions:

• Operating Temperature: 0°C to +60°C

• Storage Temperature: −40°C to +85°C

• Humidity: 5% to 95%, non-condensing

• Shock/Vibration Resistance: Suitable for harsh industrial environments

• Optional PC Adapter: A-PCC200 for PC use
