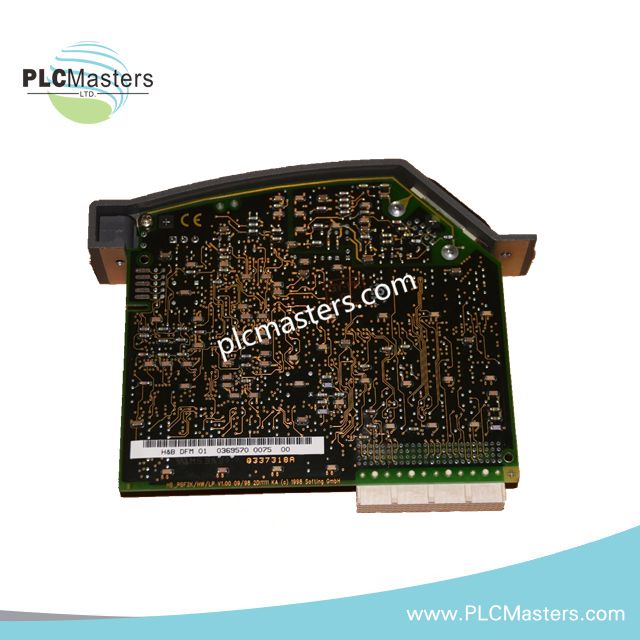

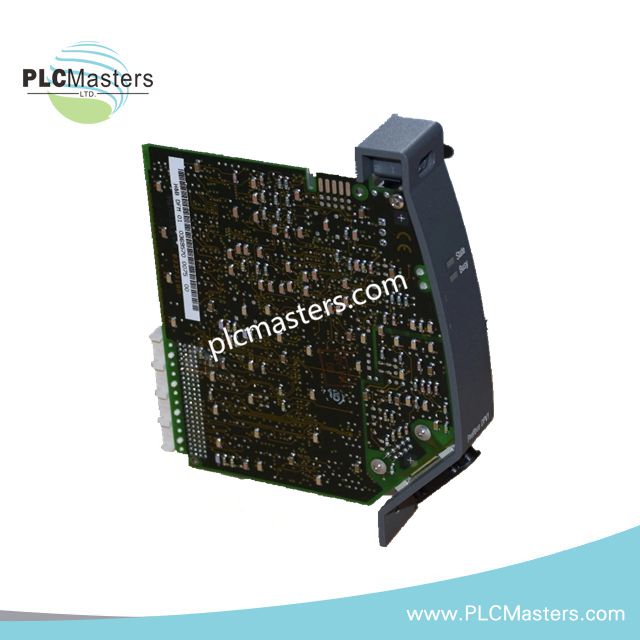

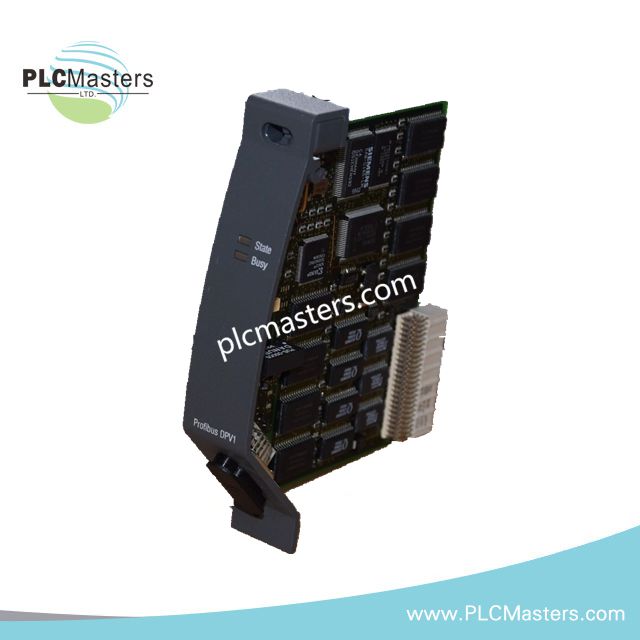

DFM 01 | ABB DFM01 PROFIBUS DPV1 Fieldbus Module
$258.00
$520.00
Description
Overview
The ABB DFM01 is a high-performance PROFIBUS DPV1 communication module engineered for seamless integration with ABB ACS drives. Designed for industrial automation environments, it delivers reliable data exchange with minimal power usage and a compact form factor suitable for control cabinets with limited space. Its robust construction ensures stable operation across wide temperature ranges and challenging factory conditions.
Technical Specifications
| Feature | Specification |
|---|---|
| Network Type | PROFIBUS DPV1 Slave |
| Supported Drives | ABB ACS100, ACS350, ACS550 Series |
| Baud Rate | 9.6 kbps – 12 Mbps |
| Maximum Cable Length | Up to 1200 m |
| Supply Voltage | 24 VDC |
| Power Consumption | 2 W |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L × W × H) | 127 × 70 × 25 mm |
| Weight | 0.3 kg |
| Mounting | Compact DIN rail or panel mounting |
| Housing | Rugged industrial-grade enclosure |
Key Features
-
High compatibility with ABB ACS series drives for flexible deployment.
-
Compact design reduces cabinet space requirements and simplifies installation.
-
Low power draw at just 2 W for energy-efficient operation.
-
Wide operating temperature tolerance ensures reliable performance in harsh environments.
-
PROFIBUS DPV1 support for stable and fast communication across distributed control systems.
Applications
-
Integration of ABB drives into PROFIBUS DPV1 automation networks.
-
Remote monitoring and diagnostics of ABB ACS drives.
-
Communication backbone for factory automation, process control, and distributed control systems (DCS).
-
Medium-to-large scale industrial automation requiring robust fieldbus connectivity.
FAQ
Q: Can the DFM01 be used with Ethernet networks?
A: No, the DFM01 is designed specifically for PROFIBUS DPV1. Ethernet-based modules like the ABB DFE02 are recommended for Ethernet networks.
Q: Which ABB drive models are compatible?
A: The DFM01 supports ACS100, ACS350, and ACS550 series drives. Verify compatibility for other models before installation.
Q: Is the module suitable for extreme environmental conditions?
A: Yes, it operates reliably between -25°C and +70°C and can be stored safely down to -40°C or up to +85°C.
