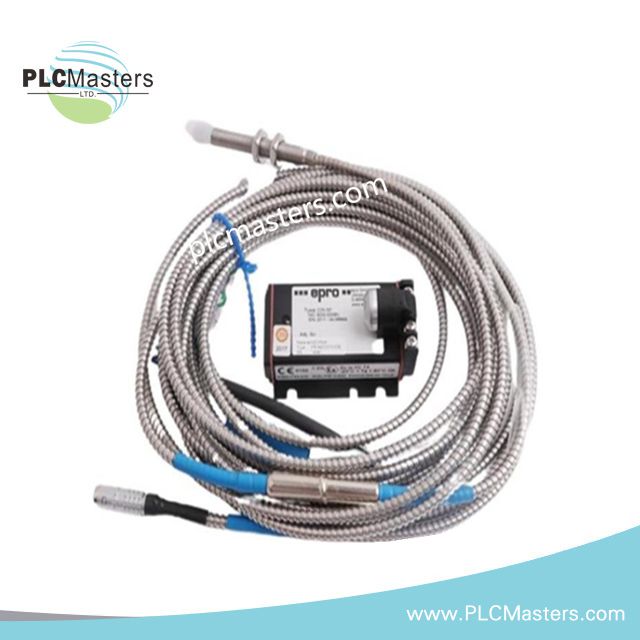

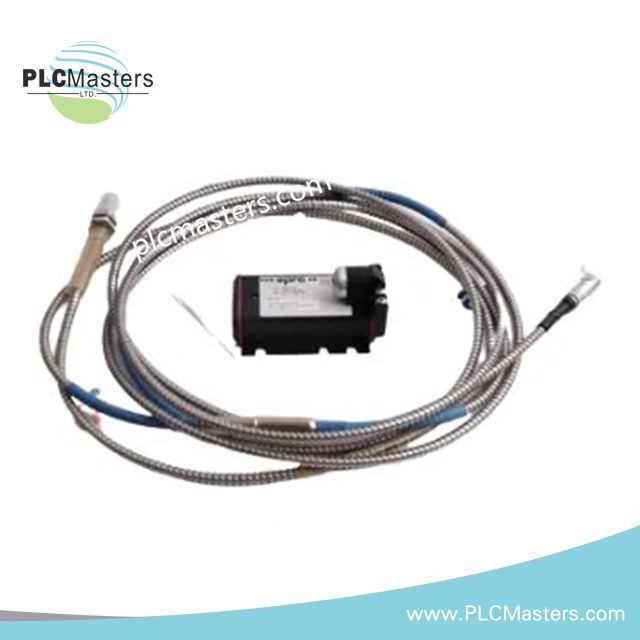

Emerson EPRO PR6426/010-000 32 mm Eddy Current Displacement Sensor
$178.00
$390.00
Description
Product Description
The EPRO PR6426 (010-000) is a high-performance eddy current sensor engineered for non-contact measurement of shaft displacement, position, eccentricity, and vibration in critical rotating machinery. Designed for use in steam, gas, and hydro turbines, compressors, pumps, and fans, this sensor delivers precise measurements under extreme industrial conditions. Its robust construction ensures reliable operation in high temperature, high pressure, and high vibration environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy current displacement and vibration sensor |
| Sensor Head Diameter | 32 mm |
| Sensitivity | 2 V/mm (~50.8 mV/mil) |
| Linear Measuring Range | ±4.0 mm (0.157") |
| Nominal Air Gap | ~5.5 mm (0.22") |
| Accuracy | ≤ ±1.5% long-term drift |
| Target Material | Ferromagnetic steel (e.g., 42CrMo4) |
| Maximum Shaft Speed | Suitable for high-speed turbomachinery |
| Operating Temperature | -35°C to +180°C (short excursions up to +200°C) |
| Cable Temperature | Up to +200°C |
| Pressure Resistance | High-pressure environment compatible |
| Shock & Vibration | Engineered for heavy-duty machinery |
| Connector | LEMO connector |
| Weight | 0.8 kg |
Key Features
-
Non-contact measurement eliminates wear and risk of shaft damage.
-
High sensitivity ensures precise vibration and displacement readings.
-
Industrial-grade durability for harsh operational environments.
-
Minimal drift for long-term reliability.
-
Flexible range suitable for diverse rotating machinery applications.
Applications
-
Steam, gas, and hydro turbine monitoring
-
Compressors, pumps, and industrial fans
-
Machinery condition monitoring and protection systems
-
Real-time eccentricity and vibration analysis
FAQ / Additional Notes
Q: What materials can be monitored with this sensor?
A: The sensor is optimized for ferromagnetic steels such as 42CrMo4, common in turbine shafts.
Q: Can the sensor operate at extreme temperatures?
A: Yes, continuous operation from -35°C to +180°C is supported, with short excursions up to +200°C.
Q: How does this model compare with other PR6426 variants?
A: The 010-000 variant offers a 32 mm head and ±4 mm range, ideal for high-speed turbomachinery, whereas other variants may feature smaller diameters or extended measuring ranges for compact or specialized installations.
