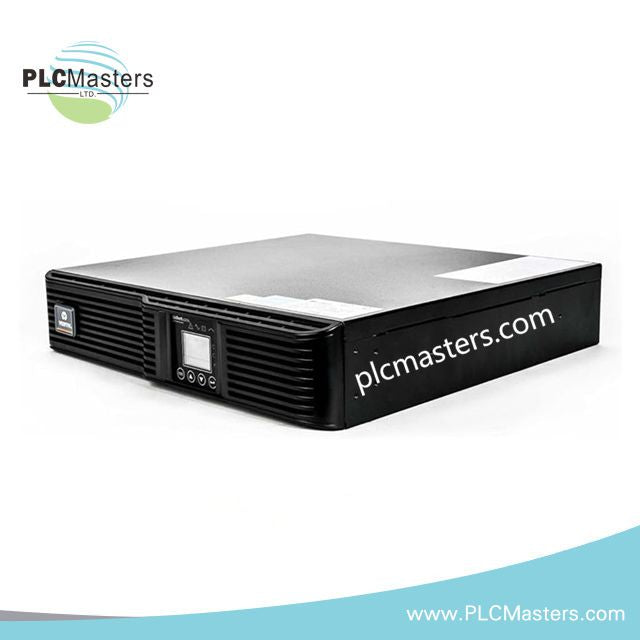

Emerson GXT4-700RT230E Online Double-Conversion UPS

Product Overview

The Emerson Liebert GXT4‑700RT230E is an advanced online double-conversion UPS designed to provide uninterrupted, high-quality power to critical IT and industrial systems. Its compact 2U rack/tower convertible design ensures flexible installation in data centers, telecom rooms, or office environments. Moreover, the system protects sensitive equipment from power outages, voltage sags, surges, and electrical noise, maintaining operational continuity at all times.

Key Features & Functional Highlights

• Zero transfer time ensures continuous power during unexpected outages.

• Pure sine wave output guarantees safe operation for servers, storage, and networking devices.

• Intelligent battery management prolongs battery lifespan while enabling hot-swappable replacement.

• LCD interface offers real-time monitoring, configuration, and alerts for system health.

• Up to 95% efficiency in ECO mode reduces energy consumption without compromising protection.

• Compact, convertible 2U form factor allows both rack-mounted and tower deployments.

Technical Specifications

UPS Type: Online Double-Conversion
Rated Capacity: 700 VA / 630 W
Power Factor: 0.9
Input Voltage: 230 V AC nominal (range: 115–280 V AC)
Input Frequency: 50/60 Hz auto-sensing
Output Voltage: 230 V AC (user-configurable: 200/208/220/230/240 V AC)
Output Waveform: Pure Sine Wave
Transfer Time to Battery: 0 ms (instantaneous)
Input Connection: IEC 320-C14
Output Receptacles: 6 × IEC 320-C13
Battery Type: Valve-regulated, non-spillable lead-acid
Battery Management: Intelligent management, hot-swappable
Battery Runtime: ~10 minutes at full load (extendable with external battery packs)
Recharge Time: ~3 hours to 90% capacity
Form Factor: Rack/Tower convertible, 2U height
Dimensions (H x W x D): 86 × 430 × 360 mm
Weight: 19 kg
Operating Temperature: 0–40 °C
Interfaces: USB, RS-232, optional SNMP card

Typical Applications

• Data Centers: Protect servers, storage systems, and networking hardware from interruptions.

• Telecommunications: Maintain uptime for switches, routers, and communication infrastructure.

• Industrial Automation: Safeguard controllers, sensors, and critical process equipment.

• Healthcare Facilities: Ensure uninterrupted power for IT, monitoring, and diagnostic systems.

FAQ

Q: How long does the UPS provide power during a blackout?
A: The GXT4‑700RT230E provides approximately 10 minutes at full load, extendable with external battery packs.

Q: Can the unit be installed in both racks and towers?
A: Yes, the 2U convertible form factor supports flexible rack or tower installation.

Q: How can I monitor UPS performance?
A: The integrated LCD display offers real-time monitoring, status alerts, and configuration options.

Q: Is the battery user-replaceable?
A: Yes, batteries are hot-swappable and managed intelligently to extend their service life.

Q: What protection features does the UPS provide?
A: It safeguards against outages, surges, sags, and electrical noise, ensuring zero transfer time.
