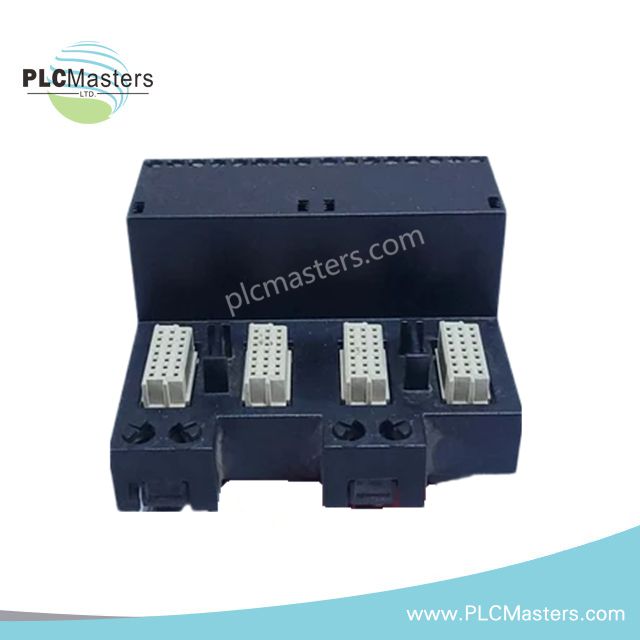

Emerson KC4011X1-BC1 Redundant DI 32-Channel Terminal Block
    Emerson KC4011X1-BC1 Redundant DI 32-Channel Terminal Block

    Emerson KC4011X1-BC1 Redundant DI 32-Channel Terminal Block

    • 1000 In stock

    • Manufacturer: Emerson

    • Product No.: KC4011X1-BC1

    • Condition： In stock

    • Product Type: Redundant DI 32-Channel Terminal Block

    • Product Origin: USA

    • Payment:T/T, Western Union

    • Weight: 500g

    • Shipping port: Xiamen

    • Warranty: 12 months

    {"id":42078357127258,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"KC4011X1-BC1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Emerson KC4011X1-BC1 Redundant DI 32-Channel Terminal Block","public_title":null,"options":["Default Title"],"price":15400,"weight":500,"compare_at_price":38500,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

    Description

    Overview

    The Emerson KC4011X1-BC1 (Part No. 12P6745X012) is a Redundant 32-Channel Digital Input Terminal Block designed for use in DeltaV™ Distributed Control Systems. It provides secure, isolated connections for digital input signals. The module supports redundant setups, ensuring high availability and system reliability. Furthermore, it meets certifications for use in hazardous industrial environments.

    Technical Specifications

    General

    • Model: KC4011X1-BC1

    • Part Number: 12P6745X012

    • Type: Redundant Digital Input Terminal Block

    • Channels: 32 digital input channels

    Power

    • Field Circuit Voltage: 30 VDC

    • Current per Channel: 5 mA

    • Total Current: 160 mA

    Environmental

    • Operating Temperature: -40 °C to +70 °C

    • Shock: 10 g, half-sine wave, 11 ms

    • Vibration:

      • 1 mm peak-to-peak from 2 to 13.2 Hz

      • 0.7 g from 13.2 to 150 Hz

    • Airborne Contaminants: ISA-S71.04 –1985, Class G3

    • Relative Humidity: 5% to 95%, Non-Condensing

    Mechanical

    • Keying Position: E3

    • Dimensions (HxWxD): 150 mm × 90 mm × 80 mm

    • Weight: 0.5 kg

    Features

    We welcome bulk orders and have a minimum order quantity of just one unit.

    Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

    For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

    We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

    We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

    Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
