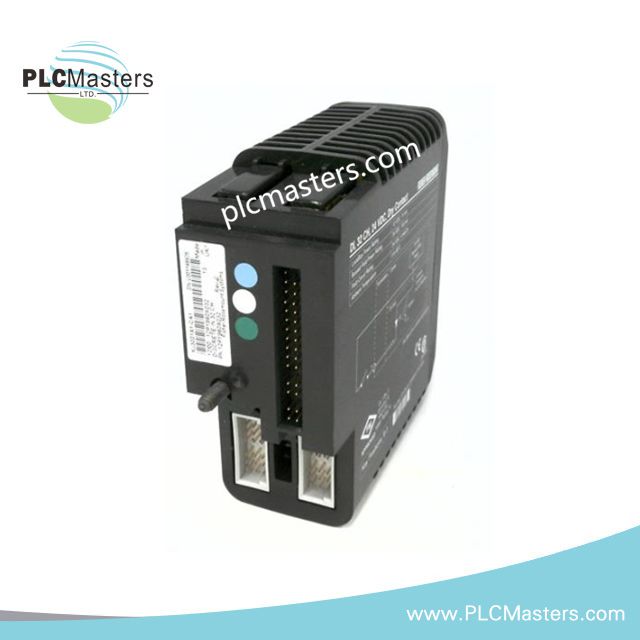

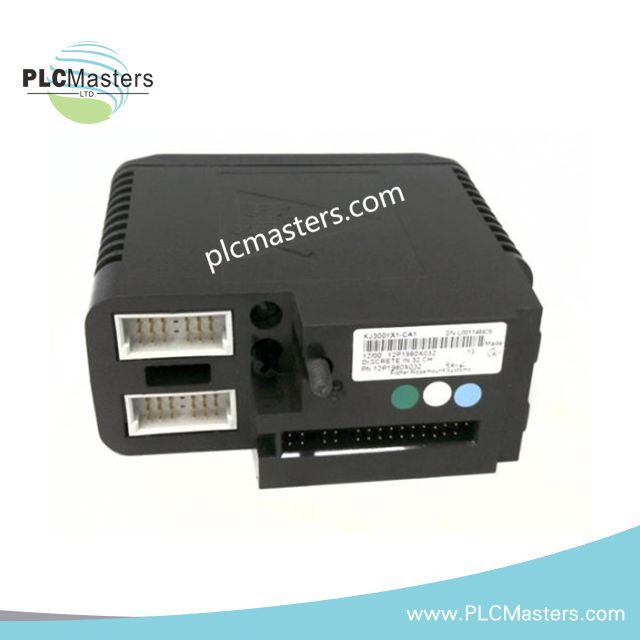

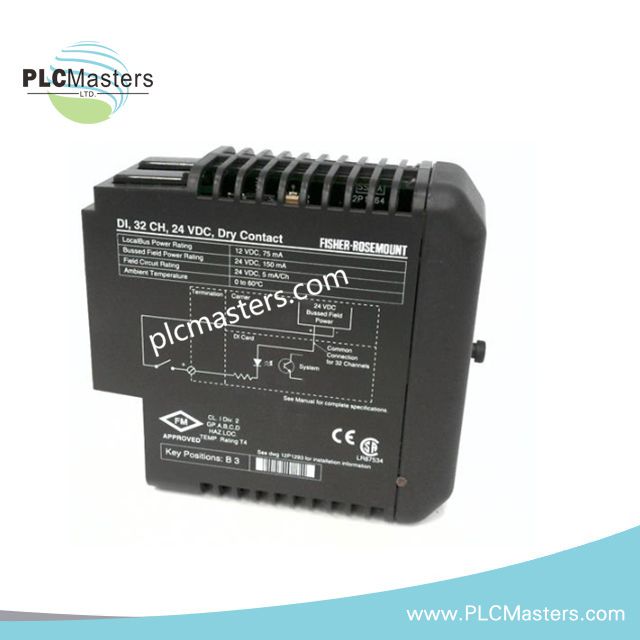

Emerson KJ3001X1-CA1 Discrete Input Module

Product Overview

The Emerson KJ3001X1-CA1 is a high-reliability discrete input module engineered for the DeltaV Distributed Control System. It captures clean and accurate digital signals from field switches, relays, and NAMUR sensors, enabling dependable process monitoring in demanding environments. The compact module integrates seamlessly with DeltaV I/O carriers and supports hot-swappable installation, which keeps plant systems running during maintenance activities. Moreover, its channel-level diagnostics provide actionable insight that helps technicians quickly identify signal or wiring issues.

Key Features and Operational Benefits

The module delivers fast and stable signal acquisition that enhances the integrity of process interlocks and alarms. Each channel includes optical isolation that protects the main controller from electrical disturbances and reduces the risk of equipment downtime. In addition, LED indicators allow operators to verify channel status instantly during commissioning or troubleshooting. The design supports NAMUR and dry contact inputs, allowing flexible integration across a wide range of legacy and modern field devices. Therefore, plants can upgrade control capability without modifying existing instrumentation.

Technical Specifications

Channels

• 16-channel discrete input (NAMUR or dry contact)

• Some variants support up to 32 channels

Electrical Characteristics

• Input voltage: 8–30 VDC (NAMUR typical)

• Input current: ~1.2 mA (NAMUR sensor typical)

• Isolation: Optical isolation between field and system electronics

• Power consumption: <3 W

Environmental

• Operating temperature: −40 °C to +70 °C

• Storage temperature: −40 °C to +85 °C

• Humidity: 5% to 95% non-condensing

• Shock resistance: 10 g, 11 ms half-sine

Mechanical

• Dimensions: 3.8 cm × 10.2 cm × 12.7 cm

• Weight: 0.51 lbs

• Mounting: DeltaV I/O carriers or baseplates

Diagnostics

• Channel-level fault detection

• LED status indicators

• Hot-swappable design

Typical Applications

The KJ3001X1-CA1 supports applications where reliable digital signal acquisition is essential for operational continuity. Power plants use the module to supervise turbine protection contacts and boiler safety circuits. Petrochemical facilities use it to integrate alarms, mechanical switches, and permissive networks into the main DeltaV logic. Moreover, water and wastewater plants rely on the module to monitor pumps, valve feedbacks, and critical interlocks. For instance, many integrators choose this model when upgrading legacy dry contact panels because its NAMUR capability improves fault detection.

Support, Reliability & Maintenance

The module is engineered to operate in harsh industrial conditions without performance degradation. Its hot-swap capability reduces maintenance time and prevents unnecessary shutdowns during replacement activities. In addition, built-in diagnostics simplify routine inspections and help operators maintain system availability. These features contribute to high lifecycle value and long-term reliability across diverse process industries.

FAQ

Q1: Does the KJ3001X1-CA1 support both NAMUR and dry contact inputs?
Yes, the module accepts NAMUR sensors and standard dry contact signals, offering flexible integration.

Q2: Can the module be replaced while the system is running?
Yes, it supports hot-swappable replacement to minimize downtime during maintenance.

Q3: How does the module enhance troubleshooting?
LED indicators and channel-level diagnostics provide clear feedback that accelerates fault identification.

Q4: Is the module compatible with older DeltaV installations?
Yes, it installs directly onto DeltaV I/O carriers and works within existing DeltaV system architectures.

Q5: What industries typically use this module?
It is widely used in power generation, oil and gas, petrochemical plants, and water treatment facilities.
