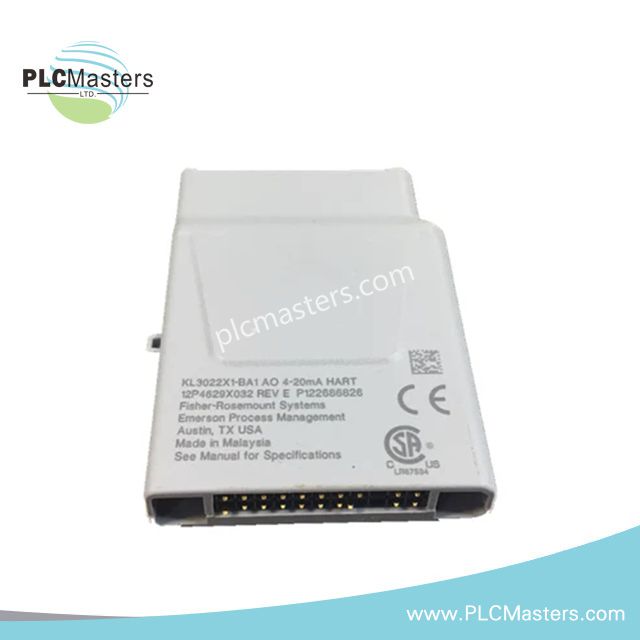

Emerson KL3022X1-BA1 AO 4-20mA HART CHARM

Overview

The Emerson KL3022X1-BA1 is an Analog Output CHARM module for DeltaV™ Electronic Marshalling systems. It delivers precise 4–20 mA analog signals with integrated HART® communication. The module enables both control and digital diagnostics over a single pair of wires. It suits demanding industrial environments and drives control valves, actuators, and other analog field devices reliably. Installation is simple with a keyed terminal block for secure placement into CHARM I/O cards.

Technical Specifications

• Model: KL3022X1-BA1

• Function: Analog Output with HART communication

• Signal Output:

• Analog: 4–20 mA

• Digital: HART protocol superimposed on analog signal

• Accuracy: ±0.05% of span

• Load Resistance:

• Minimum: 250 ohms (required for HART communication)

• Maximum: 750 ohms

• Isolation: Galvanically isolated from system electronics, factory tested to 1000 VDC

• Power Requirements:

• CHARM Bus: +6.3 VDC @ ~32 mA

• Field Circuit: +24 VDC @ ~30 mA

• Diagnostics: Output loop integrity, HART device status, and alerts

• Installation: Pluggable into CHARM I/O card, keyed terminal block ensures correct placement

• Environmental Specifications:

• Ambient Temperature: -40 °C to +70 °C

• Shock: 10 g half-sine wave for 11 ms

• Vibration: 1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz

• Airborne Contaminants: ISA-S71.04 –1985 Class G3

• Relative Humidity: 5 to 95% non-condensing

• Terminal Block Key Position: 4A CHARM terminal block

• Weight: 0.11 lbs
