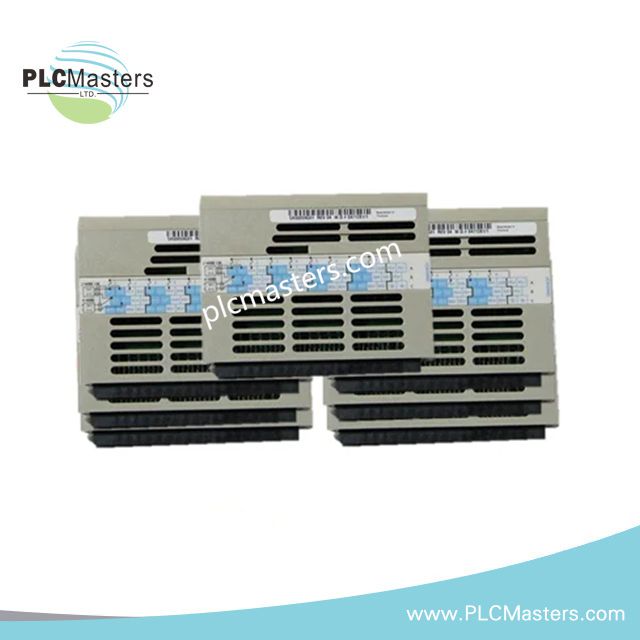

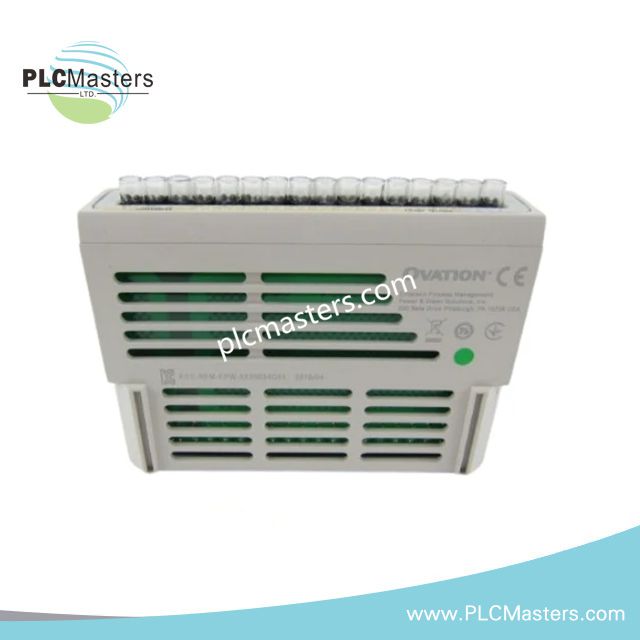

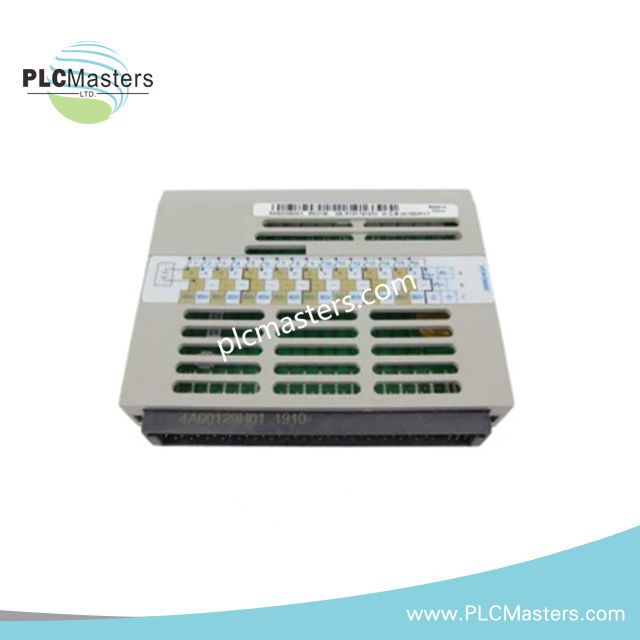

Emerson Ovation 1C31125G03 Analog Input Module
$284.00
$390.00
Description
Product Description
The Emerson Ovation 1C31125G03 is a high-performance analog input module engineered for Ovation Distributed Control Systems (DCS). It is designed to capture and digitize analog signals from field instruments, delivering reliable and accurate data for real-time process monitoring. Ideal for applications where precision and system stability are critical, this module supports multiple signal types and offers advanced diagnostics for operational integrity.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 1C31125G03 |
| Module Type | Analog Input Module |
| Input Signals | 4–20 mA, 1–5 V, RTD, Thermocouple (configurable) |
| Input Channels | 8 independent channels |
| Resolution | 12–16 bit, depending on configuration |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-ground |
| Hot-Swap Capability | Supported |
| Operating Voltage | 24 VDC nominal |
| Power Consumption | ~4.5 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions | 240 × 115 × 35 mm |
| Weight | 0.45 kg |
| Mounting | DIN rail |
Key Features
-
Precision Measurement: ±0.1% full-scale accuracy ensures reliable data collection.
-
Versatile Signal Support: Compatible with current, voltage, RTD, and thermocouple inputs.
-
Robust Electrical Isolation: Reduces interference and protects sensitive circuits.
-
Hot-Swappable Design: Enables maintenance or replacement without system downtime.
-
Compact Form Factor: Lightweight and DIN rail mountable for space-efficient installations.
-
Integrated Diagnostics: Monitors input health and detects faults for preventive maintenance.
Applications
-
Power generation monitoring and control
-
Water and wastewater process control
-
Oil & gas process instrumentation
-
Chemical plant process monitoring
-
Any environment requiring high-accuracy analog signal acquisition
FAQ
Q: Can this module be used with other DCS systems besides Ovation?
A: The module is specifically designed for Ovation DCS; compatibility with other systems is not guaranteed.
Q: How many analog input types does it support simultaneously?
A: Each of the 8 channels can be configured independently to handle current, voltage, RTD, or thermocouple signals.
Q: Is the module suitable for hot environments?
A: Yes, it operates reliably up to 60°C and supports non-condensing humidity conditions up to 95%.
Similar Models: 1C31124G02 (8-channel analog input, 12-bit), 1C31126G04 (high-speed RTD module). These offer variations in resolution and input types.
