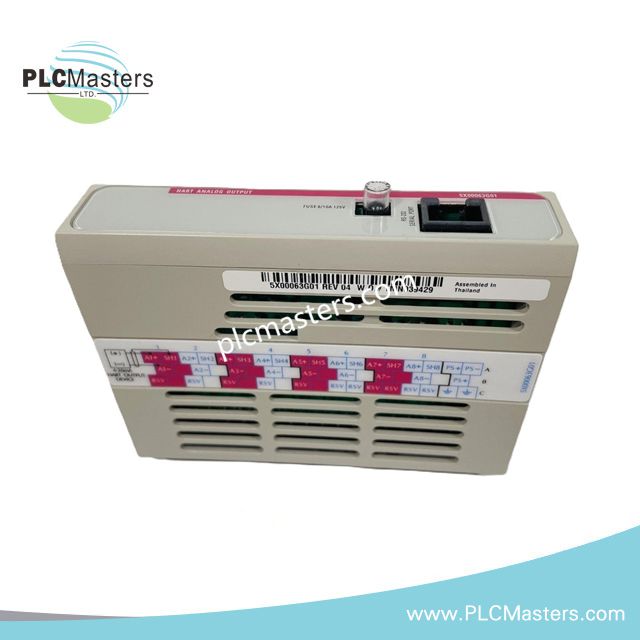

Emerson Ovation 5X00063G01 Analog Output Module
$284.00
$390.00
Description
Product Description
The 5X00063G01 output module is part of the Emerson Ovation Distributed Control System (DCS) platform and is designed to deliver dependable signal output to field devices in industrial automation environments. This module converts controller commands into electrical output signals used to drive actuators, valves, motors, and other process equipment.
Engineered for high reliability in demanding industries such as power generation and process manufacturing, the 5X00063G01 integrates precision signal conversion with protective circuitry and modular installation. The design supports both analog output communication with HART-enabled devices and secure electrical isolation to maintain signal integrity across the control system.
The module is optimized for Ovation systems, providing stable signal transmission and simplified maintenance through hot-swappable architecture and integrated micro-fuse protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00063G01 |
| Manufacturer | Emerson |
| Product Series | Ovation |
| Module Type | HART Analog Output Module |
| Output Channels | 8 Channels |
| Output Signal Range | 4–20 mA |
| Supported Protocol | HART compatible field devices |
| Compatible Modules | 8-Channel Ovation HART Analog Input Modules |
| Output Current Range | 4–20 mA per channel |
| Fuse Type | Fast-Acting Micro-Fuse |
| Fuse Rating | 0.6 A |
| Fuse Voltage | 125 V |
| Micro-Fuse Plug-In | Supported |
| Passive Circuitry | Integrated |
| Operating Temperature | 0 °C to 40 °C |
| Power Source | Ovation backplane supply |
| Weight | 0.25 lb |
Key Functional Characteristics
• High-accuracy 4–20 mA output for process control instrumentation
• HART communication compatibility for smart field device integration
• Built-in passive circuitry to stabilize signal output
• Integrated fuse protection to safeguard channels against overcurrent
• Modular plug-in design allowing quick installation or replacement within Ovation cabinets
Typical Application Environments
The 5X00063G01 module is commonly deployed in industrial control systems where reliable analog output signals are required to regulate process equipment.
Typical applications include:
• Power plant turbine and boiler control systems
• Petrochemical process instrumentation
• Steel and metallurgical plant automation
• Water and wastewater treatment facilities
• Distributed process control networks using Emerson Ovation architecture
Compatibility Notes
The 5X00063G01 is designed specifically for the Ovation DCS platform. While it interfaces seamlessly with Ovation controllers and I/O racks, integration with non-Ovation control systems may require additional interface hardware.
FAQ
What type of signal does the 5X00063G01 output module provide?
The module outputs industry-standard 4–20 mA analog signals used to control valves, transmitters, and other process instrumentation.
Does the module support HART communication?
Yes. It is designed to operate with HART-enabled devices, allowing both analog control and digital diagnostic communication over the same wiring.
What protection features are included?
Each channel uses a fast-acting micro-fuse rated at 0.6 A / 125 V, helping protect the module and connected field devices from electrical faults.
