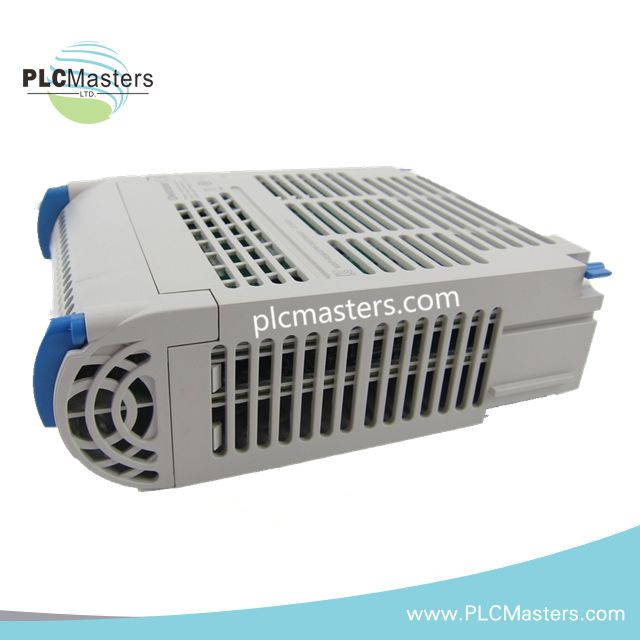

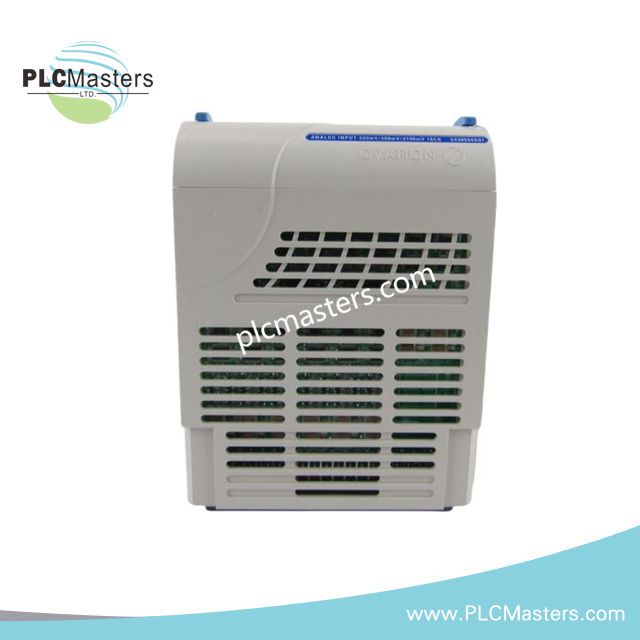

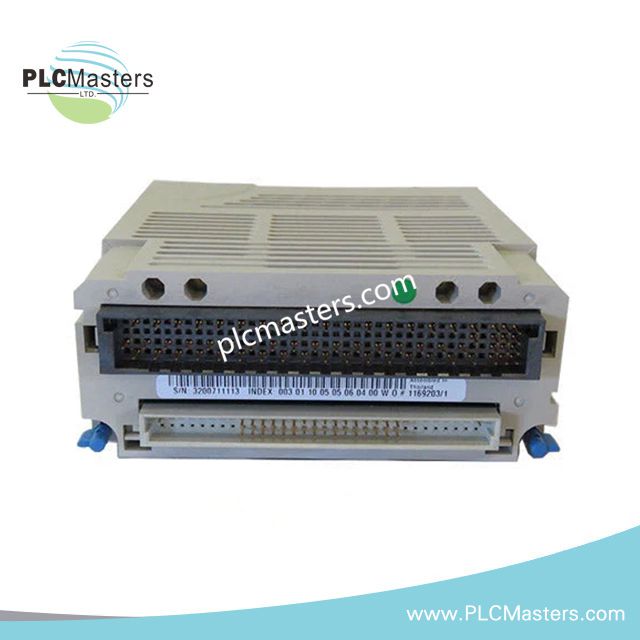

Emerson Ovation 5X00594G01 Analog Input Module
$284.00
$390.00
Description
Product Description
The Emerson Ovation 5X00594G01 is a high-performance Analog Input Module engineered for Ovation Distributed Control Systems (DCS). It provides reliable digitization of analog signals from field devices, including transmitters, thermocouples, RTDs, and voltage/current sensors, enabling precise system monitoring and process control.
This module ensures accurate signal acquisition with comprehensive diagnostics and robust electrical isolation, supporting stable operation in complex industrial environments. Its compact and hot-swappable design allows flexible installation and maintenance without system downtime.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 5X00594G01 |
| Module Type | Analog Input |
| Input Signal Types | 4–20 mA, 1–5 V, RTD, Thermocouple |
| Number of Channels | 8–16 configurable independent inputs |
| Resolution | 12–16 bit, depending on channel type |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel and channel-to-ground |
| Hot Swap | Supported |
| Supply Voltage | 24 VDC nominal |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Certifications | CE, UL, CSA |
| Dimensions | 240 mm × 115 mm × 35 mm |
| Weight | 0.45 kg |
Key Features
-
High-precision signal acquisition with ±0.1% full-scale accuracy
-
Multi-signal capability for current, voltage, RTD, and thermocouple inputs
-
Channel-to-channel isolation for enhanced electrical protection
-
Hot-swappable module for maintenance without shutdown
-
Compact, DIN-rail compatible design for flexible installation
-
Built-in diagnostics for input verification and fault detection
Applications
Ideal for demanding process industries such as power generation, oil & gas, chemical processing, and water treatment, the 5X00594G01 ensures reliable and accurate process data for critical control loops.
FAQ
Q: Can this module replace other Ovation analog input modules?
A: Yes, it is compatible with most Ovation DCS systems but check channel and signal type requirements.
Q: Does it support multiple input types simultaneously?
A: Each channel is configurable for specific signal types, allowing flexibility in mixed-signal installations.
