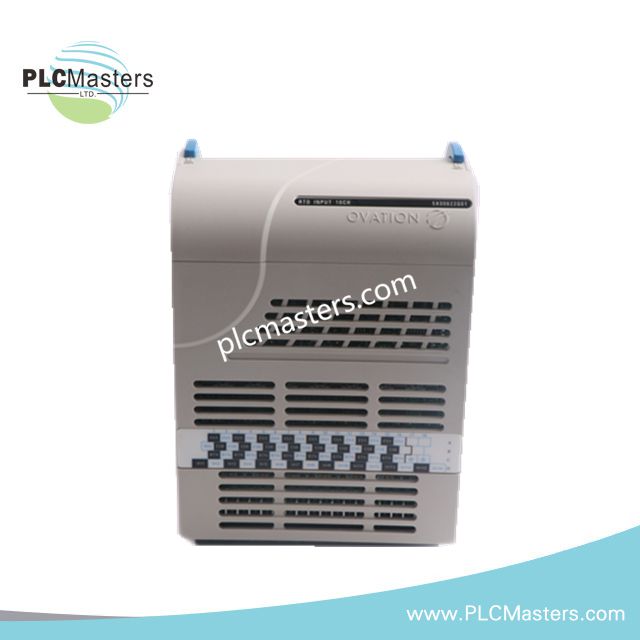

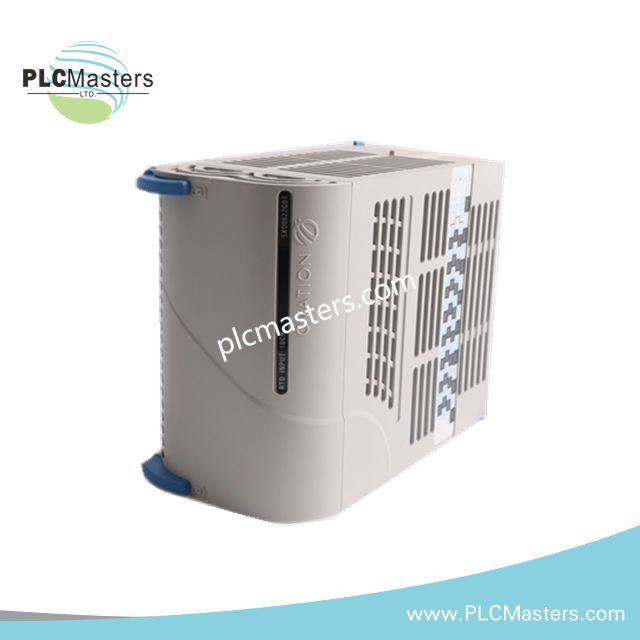

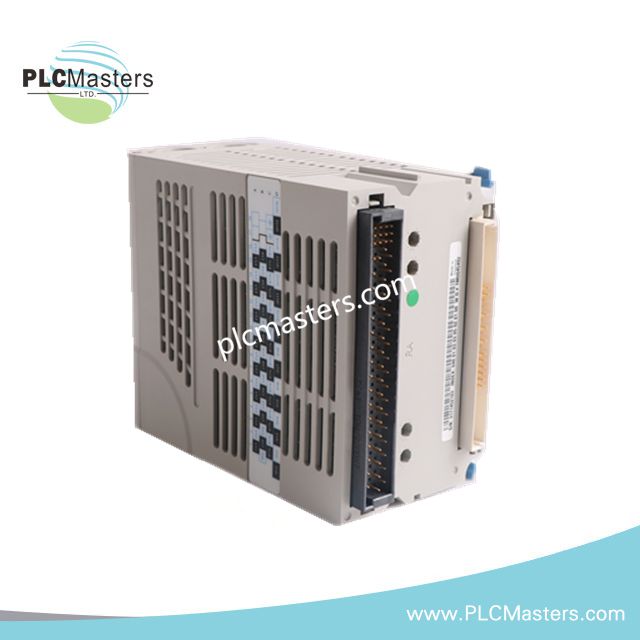

Emerson Ovation 5X00622G01 RTD Input Module
$284.00
$390.00
Description
Product Description
The Emerson Ovation 5X00622G01 is a high-performance 16-channel RTD Input Module engineered for Ovation Distributed Control Systems (DCS). It delivers precise temperature measurement by converting resistance-based RTD signals into high-resolution digital data, suitable for advanced process monitoring and control.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 5X00622G01 |
| Module Type | 16-Channel RTD Input Module |
| Input Channels | 16 independent RTD inputs |
| Supported RTD Types | Pt100, Pt1000, Ni120, Cu10 (configurable) |
| Measurement Range | -200°C to +850°C (depends on RTD type) |
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-channel & channel-to-ground |
| Sampling Rate | Up to 1 kHz |
| Supply Voltage | 24 VDC nominal |
| Hot Swap | Supported |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5–95% non-condensing |
| Dimensions | 240 mm × 115 mm × 35 mm |
| Weight | 0.36 kg |
Key Features
-
Multi-channel capability for dense temperature monitoring
-
High-precision measurement with ±0.1% full-scale accuracy
-
Broad RTD compatibility (Pt, Ni, Cu sensors)
-
Robust isolation to prevent electrical interference
-
Hot-swappable design for uninterrupted system operation
-
Built-in diagnostics for sensor integrity and fault detection
Applications
The module is ideal for industries requiring accurate temperature monitoring, including power generation, oil & gas, chemical processing, water treatment, and other critical process environments.
FAQ
Q: Can this module support both Pt100 and Ni120 sensors simultaneously?
A: The module can be configured to support multiple RTD types per installation, but each channel must be assigned a compatible RTD type.
Q: Is hot-swap replacement possible during live operations?
A: Yes, the 5X00622G01 supports hot-swapping without shutting down the DCS.
Q: How does this module compare to 5X00620G01?
A: Both modules offer multi-channel RTD input, but 5X00622G01 provides higher resolution (16-bit) and wider isolation per channel, enhancing measurement stability in electrically noisy environments.
