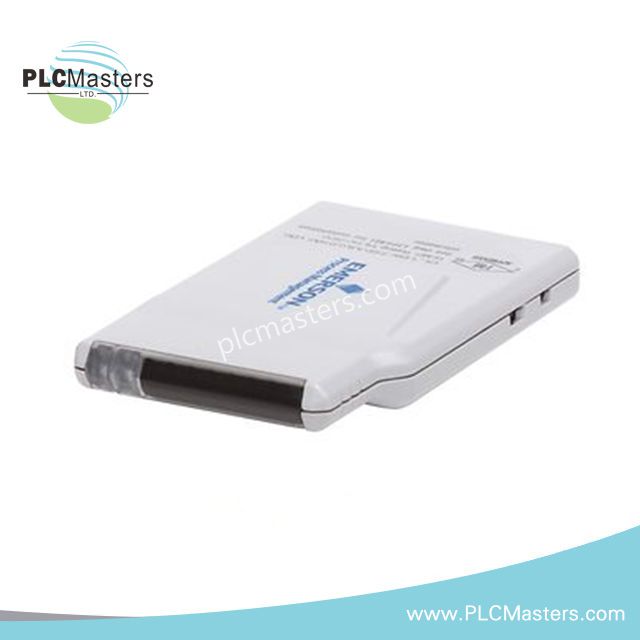

Emerson SE4302T04 Digital Output CHARM Module
    Emerson SE4302T04 Digital Output CHARM Module

    Emerson SE4302T04 Digital Output CHARM Module

    • 1000 In stock

    • Manufacturer: Emerson

    • Product No.: SE4302T04

    • Condition： In stock

    • Product Type: Digital Output CHARM Module

    • Product Origin: USA

    • Payment:T/T, Western Union

    • Weight: 227g

    • Shipping port: Xiamen

    • Warranty: 12 months

    {"id":42080398868570,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"SE4302T04","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Emerson SE4302T04 Digital Output CHARM Module","public_title":null,"options":["Default Title"],"price":26900,"weight":227,"compare_at_price":38500,"inventory_management":"shopify","barcode":"USA","requires_selling_plan":false,"selling_plan_allocations":[]}

    Description

    Overview

    The Emerson SE4302T04 is a Digital Output (DO) CHARM module for DeltaV™ systems. It delivers safe, precise control for 24 VDC solenoids and actuators. As part of Emerson’s Electronic Marshalling system, it simplifies installation and enhances flexibility. Moreover, its energy-limited design ensures high reliability in safety-critical applications.

    Technical Specifications

    • Model Number: SE4302T04

    • Product Type: Digital Output CHARM

    • Device Type: 24 VDC solenoid coils

    • Mounting System: DeltaV CHARM I/O Card

    Electrical Characteristics

    • Operating Voltage: 24 VDC

    • On-State Output Rating: 100 mA continuous at 24 VDC

    • Off-State Leakage Current: ≤ 1 mA

    • CHARM Power Requirement: 116 mA max @ 24 VDC

    • Heat Dissipation: 0.56 W

    Line Fault Detection

    • Short Circuit Detection: < 50 Ω

    • Good Load Status: 240 Ω to 10 kΩ

    • Open Circuit Detection: > 20 kΩ

    • Line Fault Test Timing: 200 µsec

    Protection Features

    • Field Circuit Protection: 107 mA current limiting

    • Field Wiring Disconnect: Integrated for safety

    Features

    We welcome bulk orders and have a minimum order quantity of just one unit.

    Upon request, we can provide all necessary documentation, including Certificates of Origin/Conformance and other required export documents.

    For items in stock, we aim to deliver within 1-3 days after payment confirmation. Items with specified lead times will be delivered according to the quoted schedule.

    We accept 100% T/T (Telegraphic Transfer) payment before shipping. For items with lead times, a 30% deposit is required upfront, with the remaining 70% due before shipment. For RMB transfers, please contact us if you have an agent in China.

    We offer a standard one-year warranty on all new and original items. If you require an extended warranty, please contact us for additional cost details.

    Your satisfaction is important to us. If you need to return an item, it must be done within 30 days of the order date. The product must be unused, unopened, and in its original packaging with all accessories included. Refunds are processed within 5-7 business days after we receive the returned item. Please note that shipping and related charges are non-refundable.
