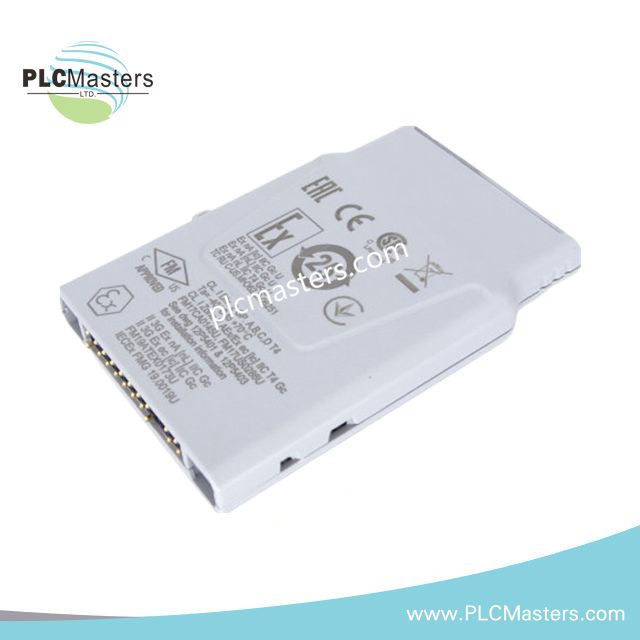

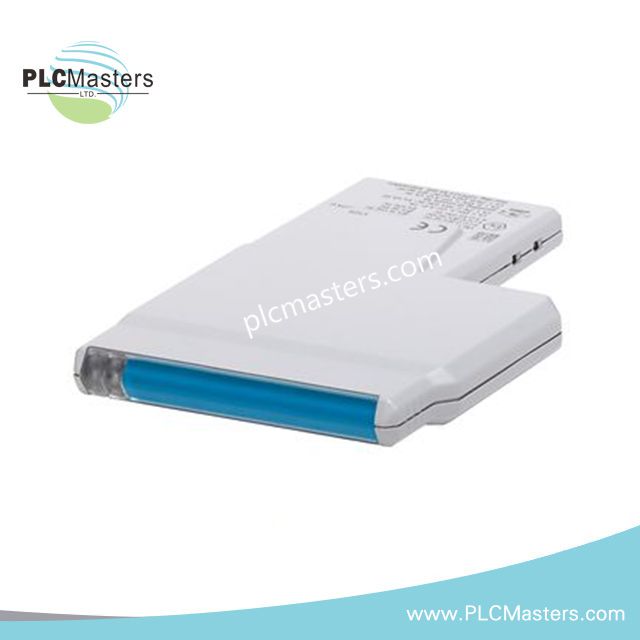

Emerson SE4305T01 KL3002X1-BA1 DO 24 VDC High Side CHARM

Overview

The Emerson SE4305T01 KL3002X1-BA1 is a high-performance Digital Output CHARM module. It integrates with the DeltaV™ Electronic Marshalling system for reliable automation control. This module provides high-side switching for 24 VDC digital outputs. It enables precise control of solenoids, valves, relays, and other inductive loads. Engineered for industrial environments, it supports robust operation under harsh conditions. Pluggable design allows fast installation, replacement, and system maintenance. Integrated diagnostics ensure fault detection and clear status indication for each channel.

Technical Specifications

CHARM Type: KL3002X1-BA1
Function: Digital Output – High-Side Switching
Output Voltage: 24 VDC
Output Type: High-side switch (switches the positive side of the load)
Current Rating: Supports up to 0.5 A per channel
Load Compatibility: Solenoids, relays, valves, and other inductive loads

System Integration:

• Compatible with DeltaV™ CHARM I/O cards

• Pluggable design for easy installation and replacement

Diagnostics:

• Built-in fault detection

• Status indication for each channel

Power Specifications:

• CHARM Bus Power: 6.3 VDC at 32 mA

• Field Circuit Power: 24 VDC at 5 mA

Environmental Specifications:

• Ambient Temperature: -40 °C to +70 °C

• Shock: 10g ½ Sinewave for 11 ms

• Vibration: 1 mm Peak to Peak from 2–13.2 Hz; 0.7g from 13.2–150 Hz

• Airborne Contaminants: ISA-S71.04 –1985 Class G3

• Relative Humidity: 5 to 95% Non-Condensing
